FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2004
>>
New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Measured Value Blocks (Function 08)
>>
Evaluating Measured Value Blocks
>>
Display Group 014
Display Group 014
Display group 014

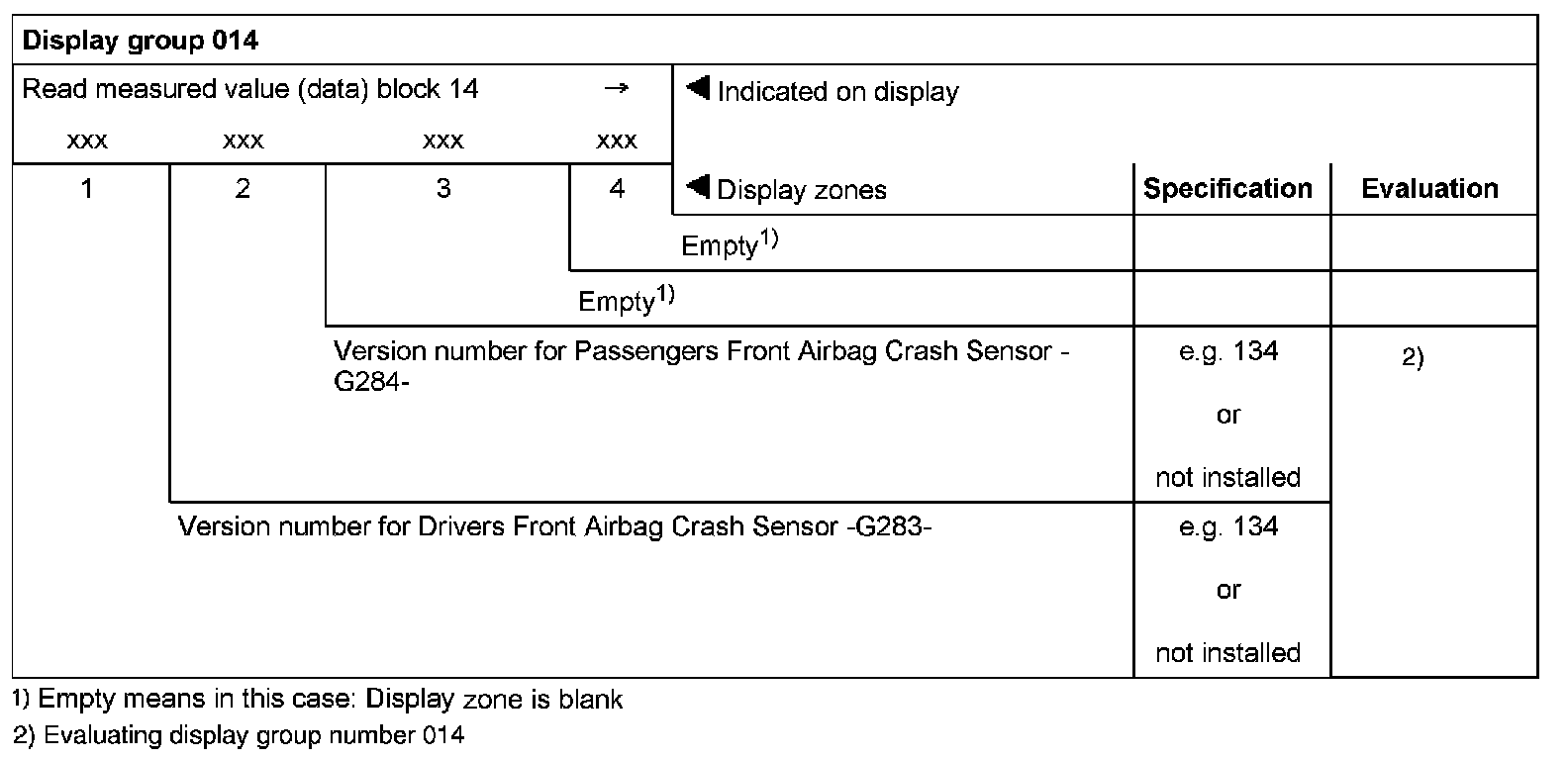

Display Group 014:
Evaluating display group number 014

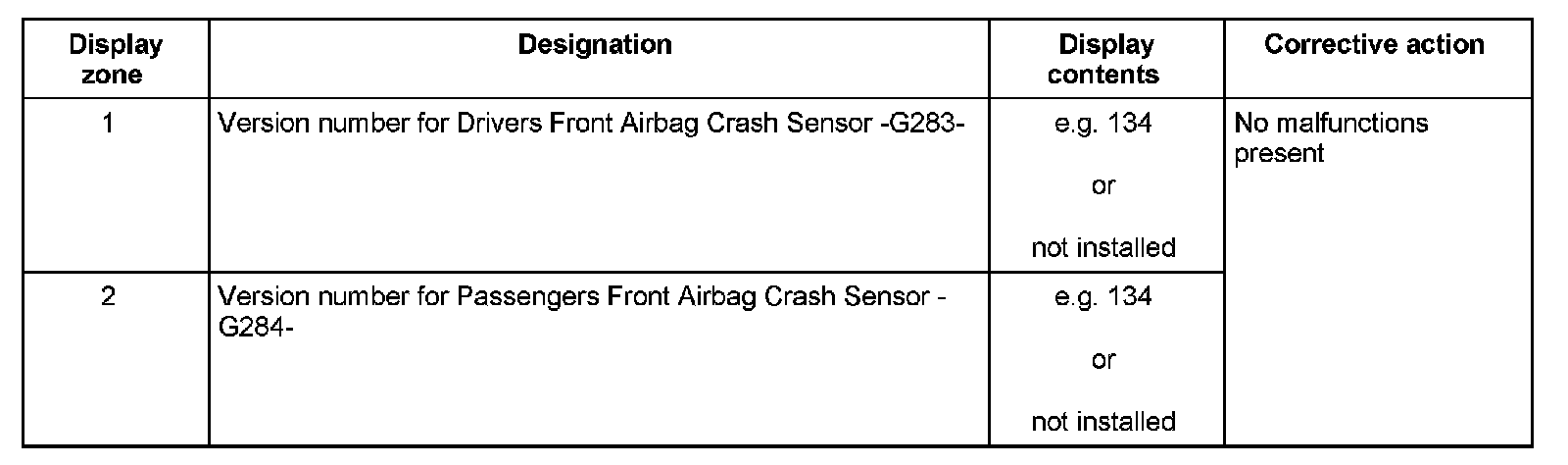

Display Zone 1 - 2:
