New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Measured Value Blocks (Function 08)
>>
Evaluating Measured Value Blocks
>>
Display Group 010
Display Group 010

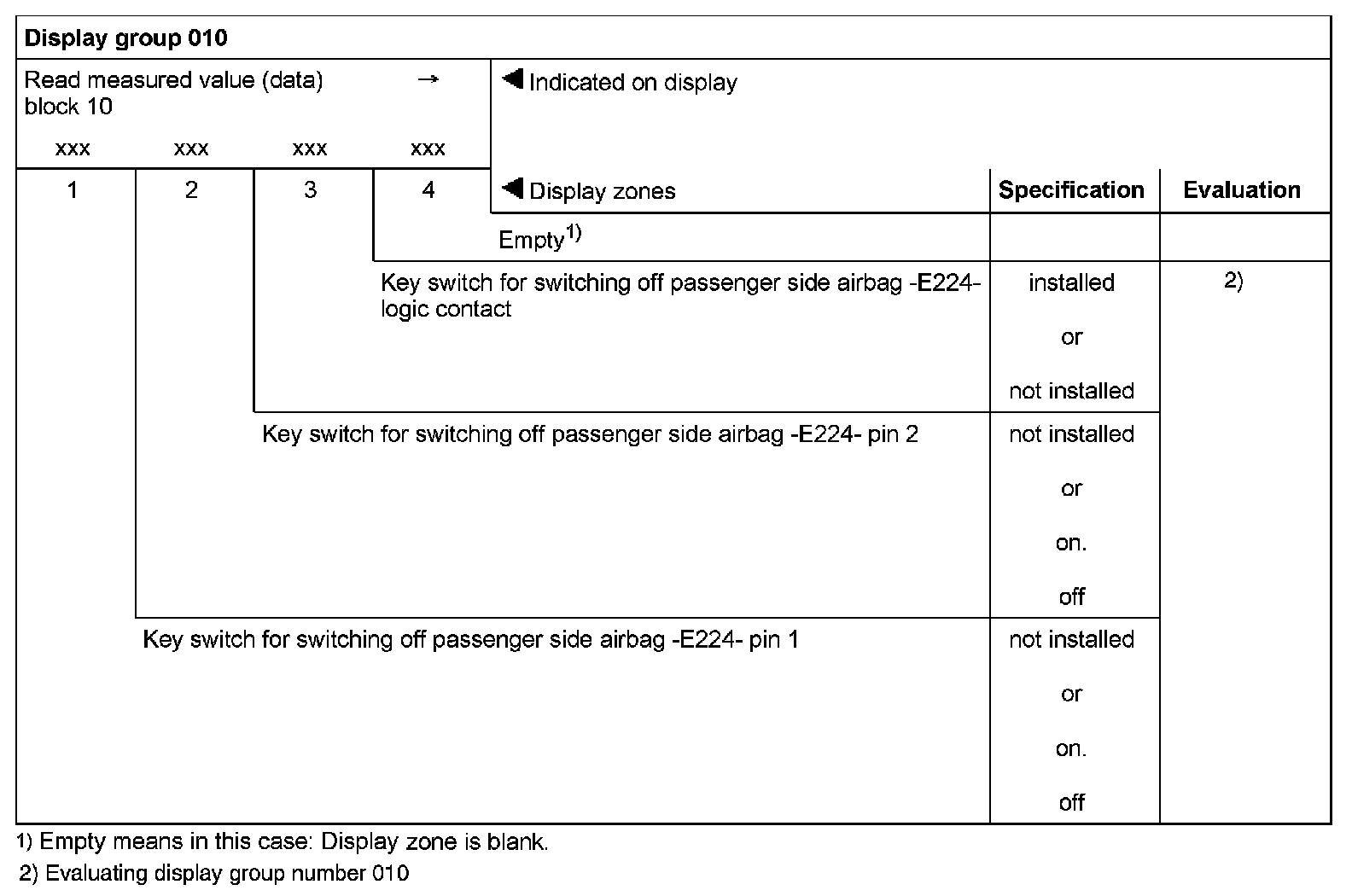

Display group 010
Display Group 010:

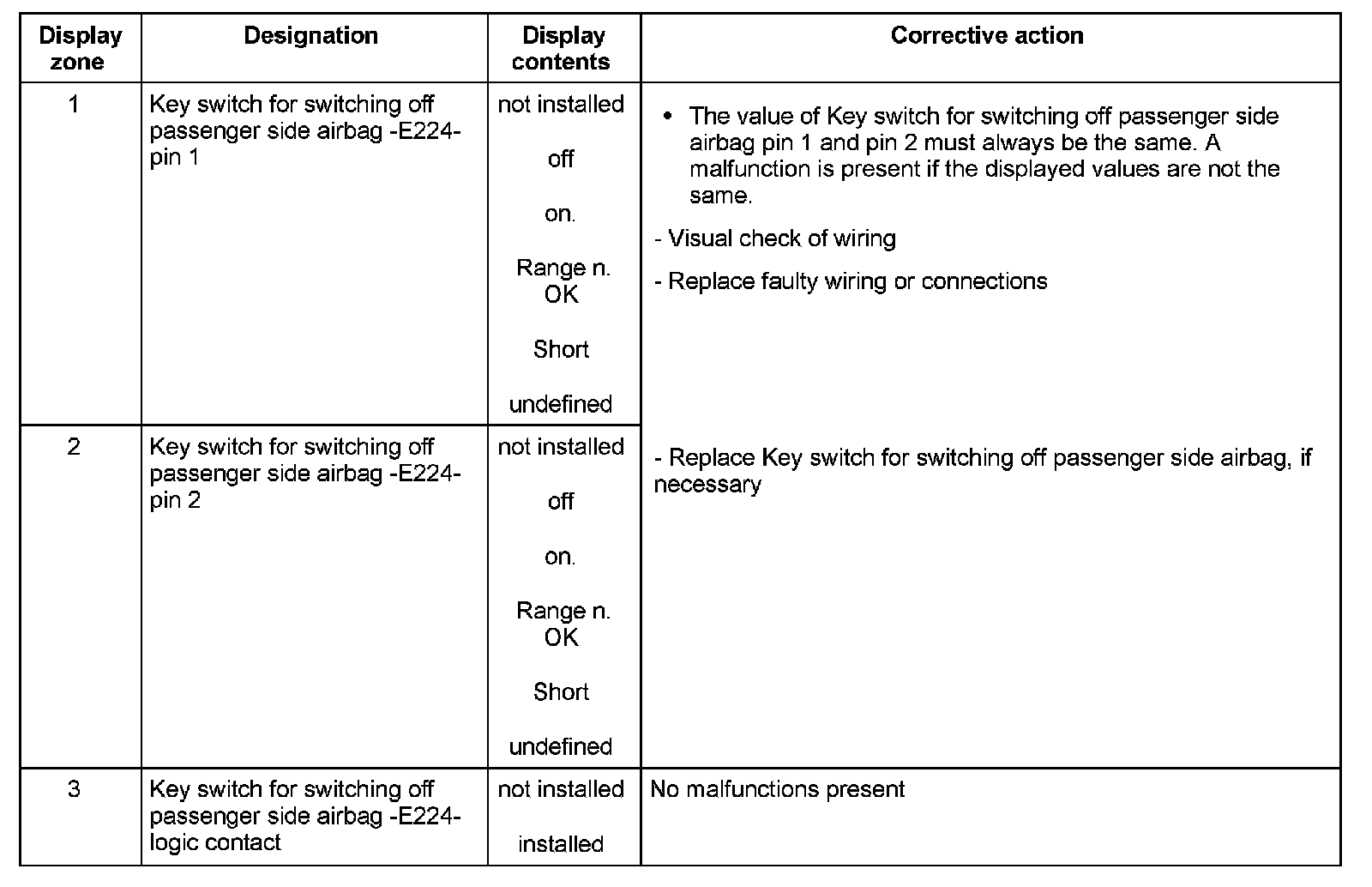

Evaluating display group number 010
Display Zone 1 - 3:
