Display Group 009
Display Group 009

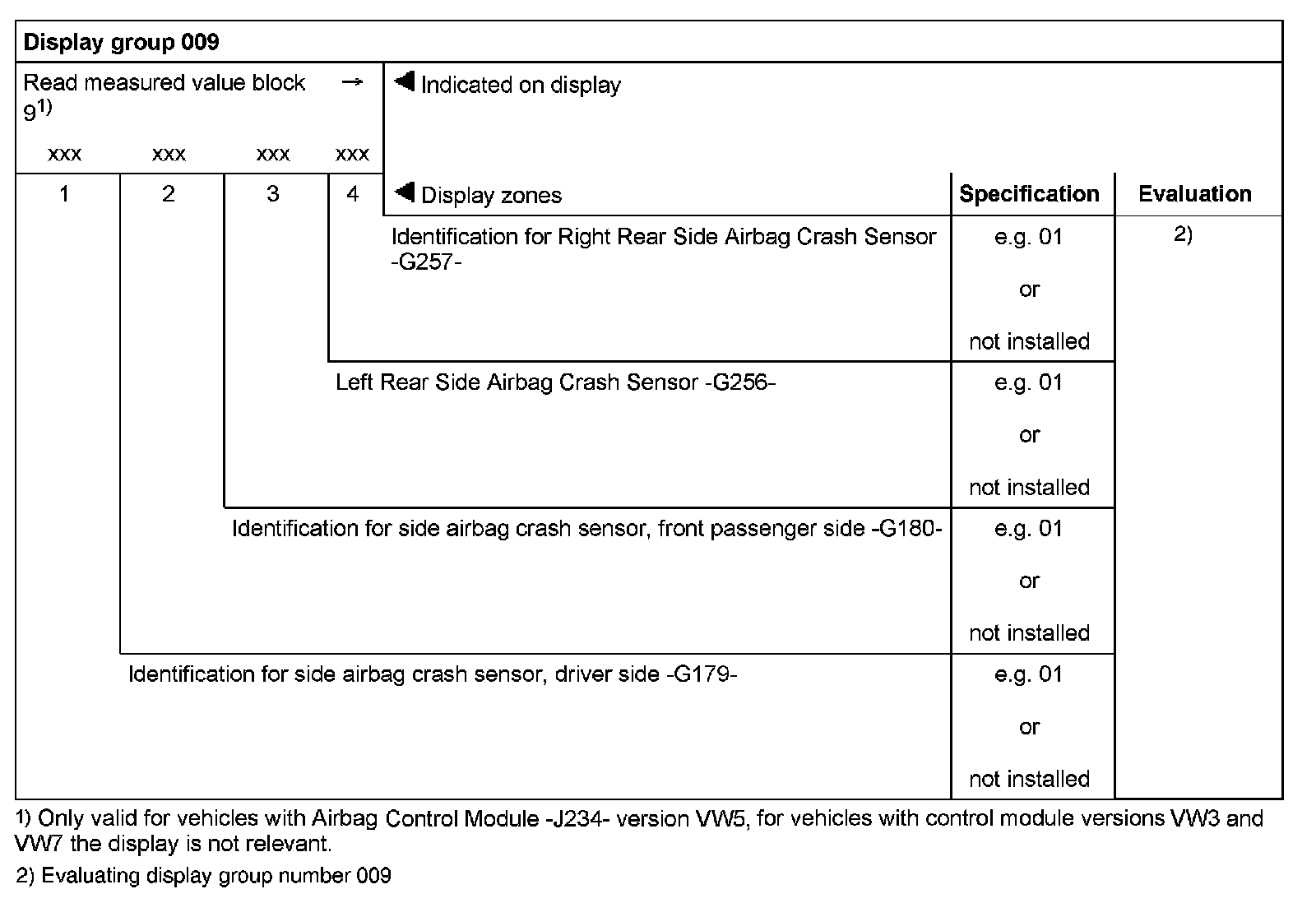

Display group 009
Display Group 009:
Evaluating display group number 009
Display Zone 1 - 4:
