Display Group 006
Display Group 006
Display group 006

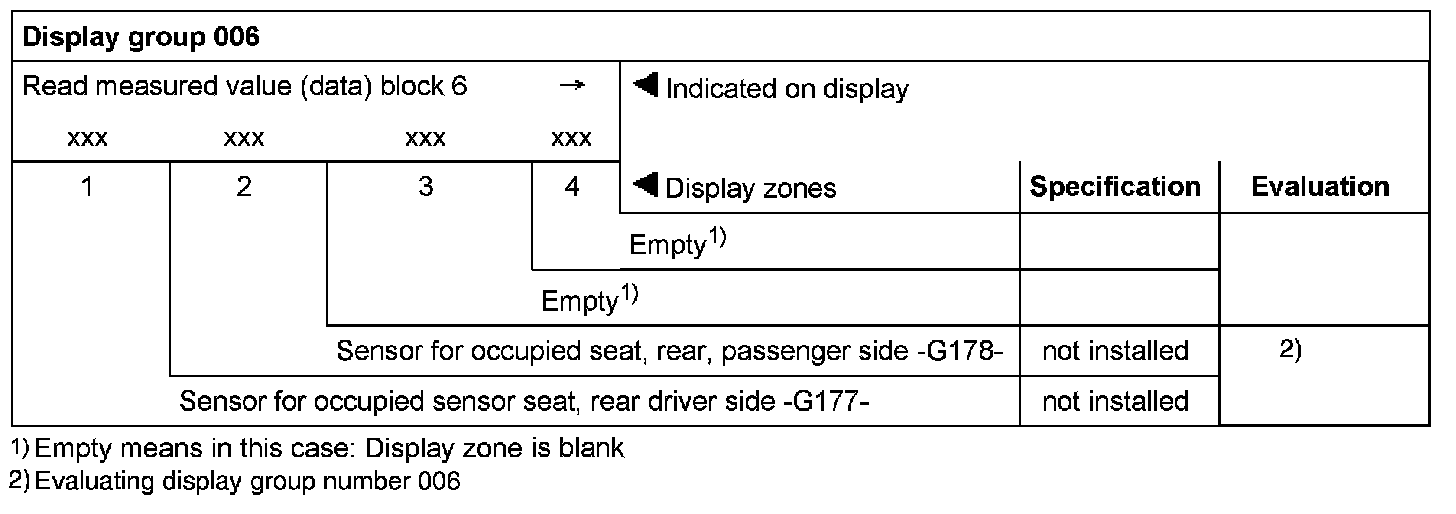

Display Group 006:

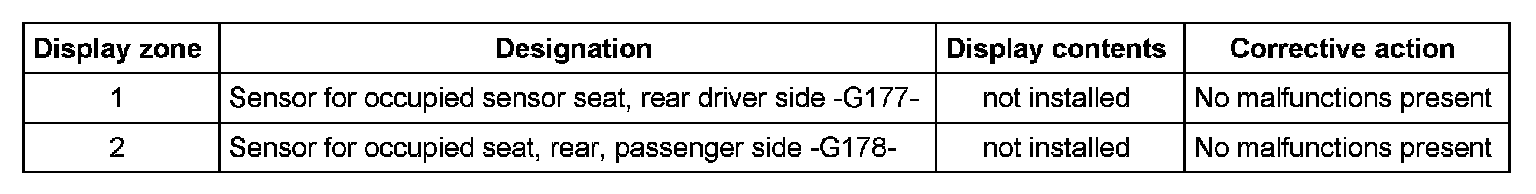

Evaluating display group number 006
Display Zone 1 - 2:
