Measured Value Blocks (Function 08)
>>
Evaluating Measured Value Blocks
>>
Display Group 005
Display Group 005
Display group 005

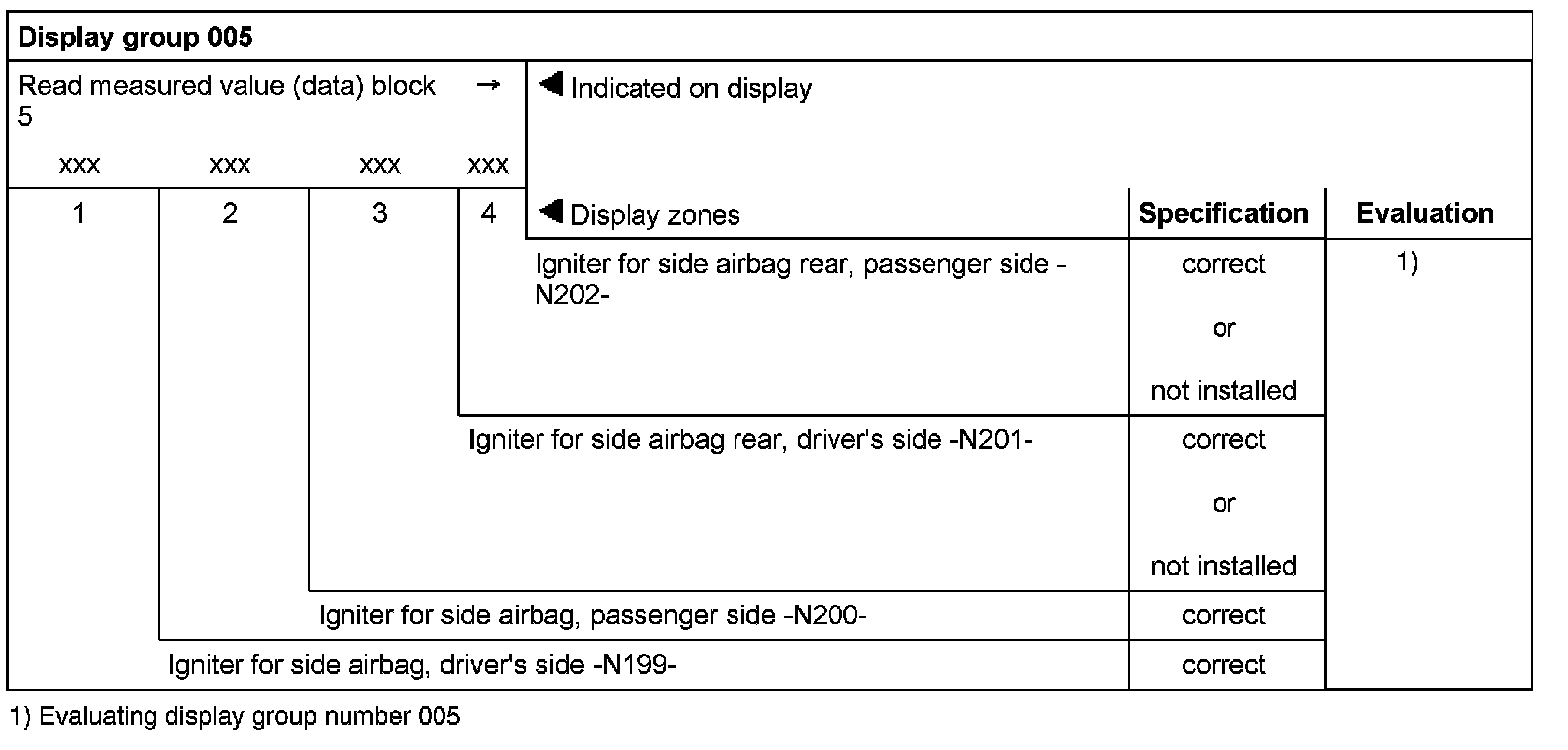

Display Group 005:
Evaluating display group number 005

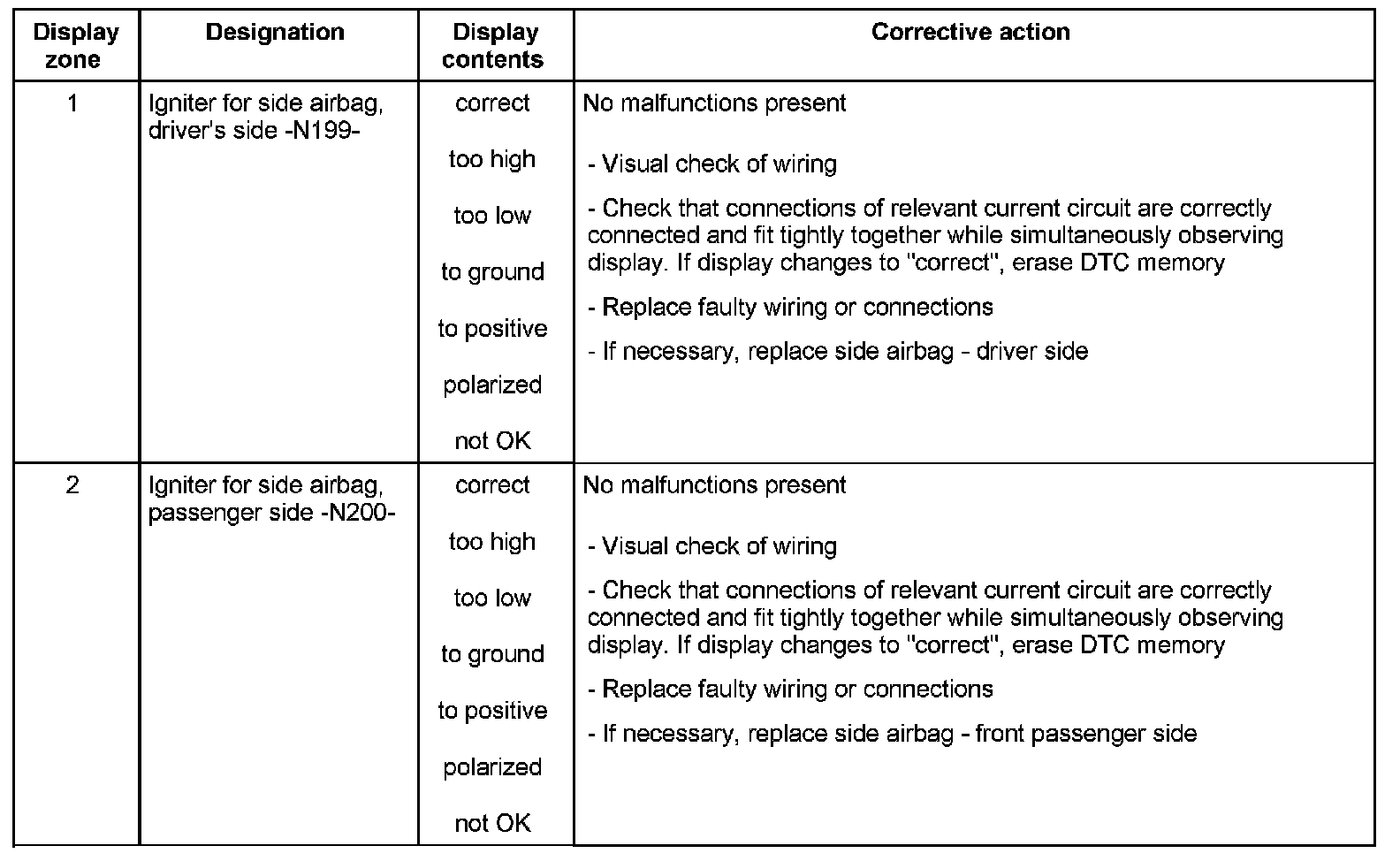

Display Zone 1 - 2:

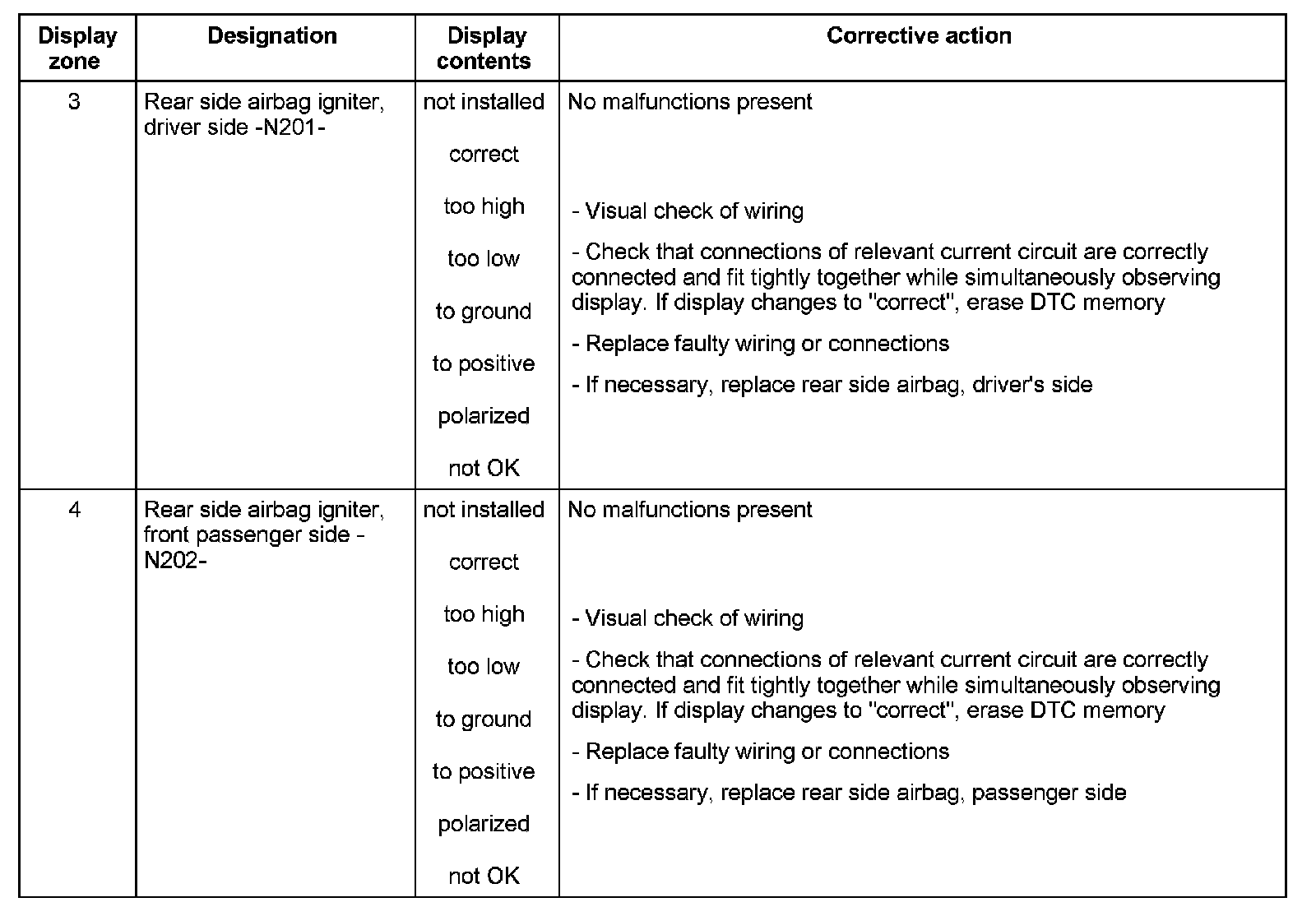

Display Zone 3 - 4:
