Evaluating Measured Value Blocks
>>
Display Group 003
Display Group 003

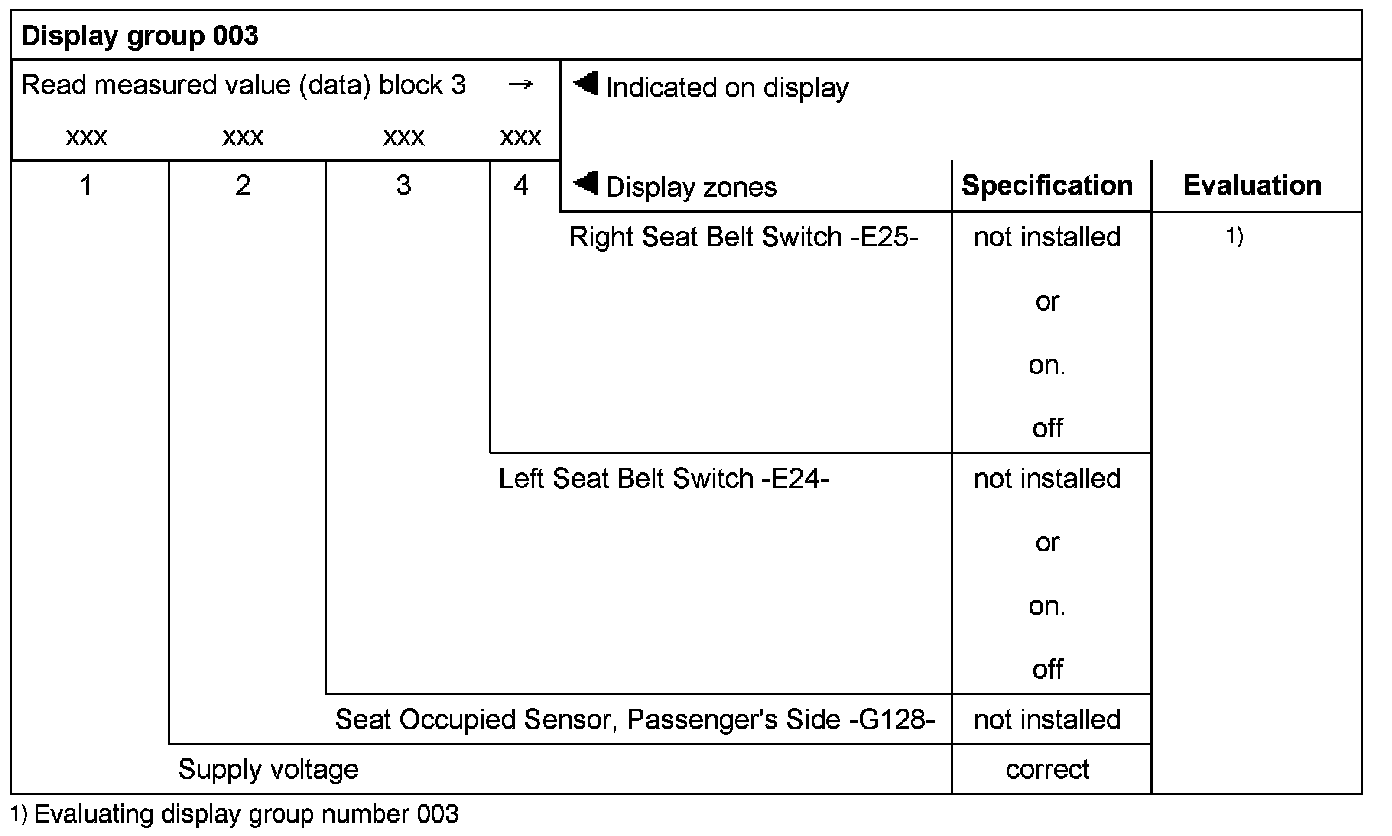

Display group 003
Display Group 003:

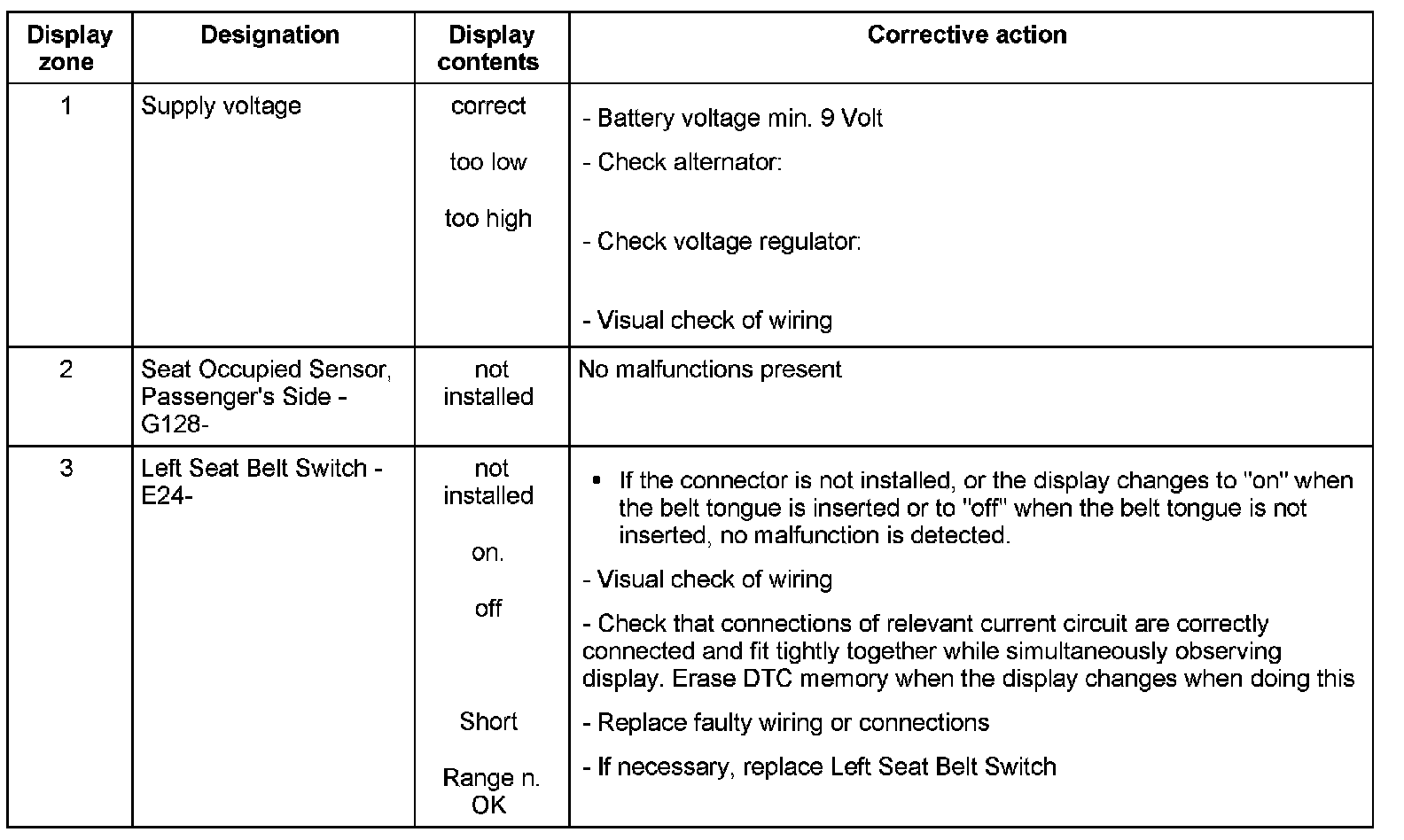

Evaluating display group number 003
Display Zone 1 - 3:
Display Zone 4:
