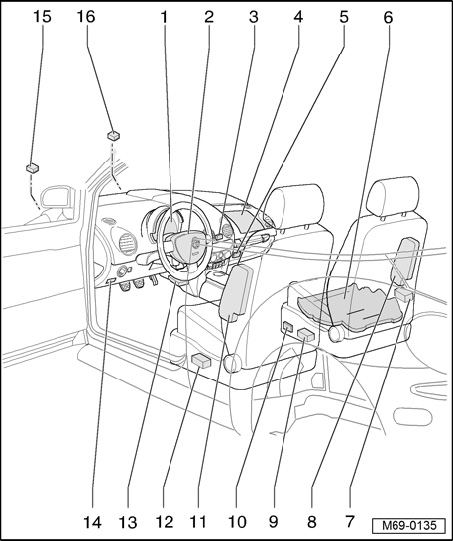

Overview of Component Locations (Convertible)

Overview Of Component Locations (convertible)







1 - Airbag Malfunction Indicator Lamp (MIL) K75
- In instrument cluster

2 - Airbag unit, drivers side front
3 - Front Passengers Airbag Disabled Indicator Lamp K145
4 - Airbag unit, passenger side front
- Deactivating and activating (adaptation)
Vehicles 05.03 --> via seat occupied recognition

5 - Front Passengers Airbag -Off- Key Switch
- Non US market

6 - Mat for seat occupied recognition (USA only)
7 - Sensor (side airbag front passengers side)
8 - Side-airbag on passengers side
9 - Seat Occupied Recognition Control Module J706 USA only
10 - Seat Occupied Recognition Pressure Sensor G452 USA only
11 - Side airbag on drivers side
12 - Sensor (side airbag drivers side)
13 - Airbag Control Module J 234
14 - Diagnostic connector
- Below instrument panel

15 - Sensor (Early Crash)
- In front left longmember

16 - Sensor (Early Crash)
- In front right longmember
