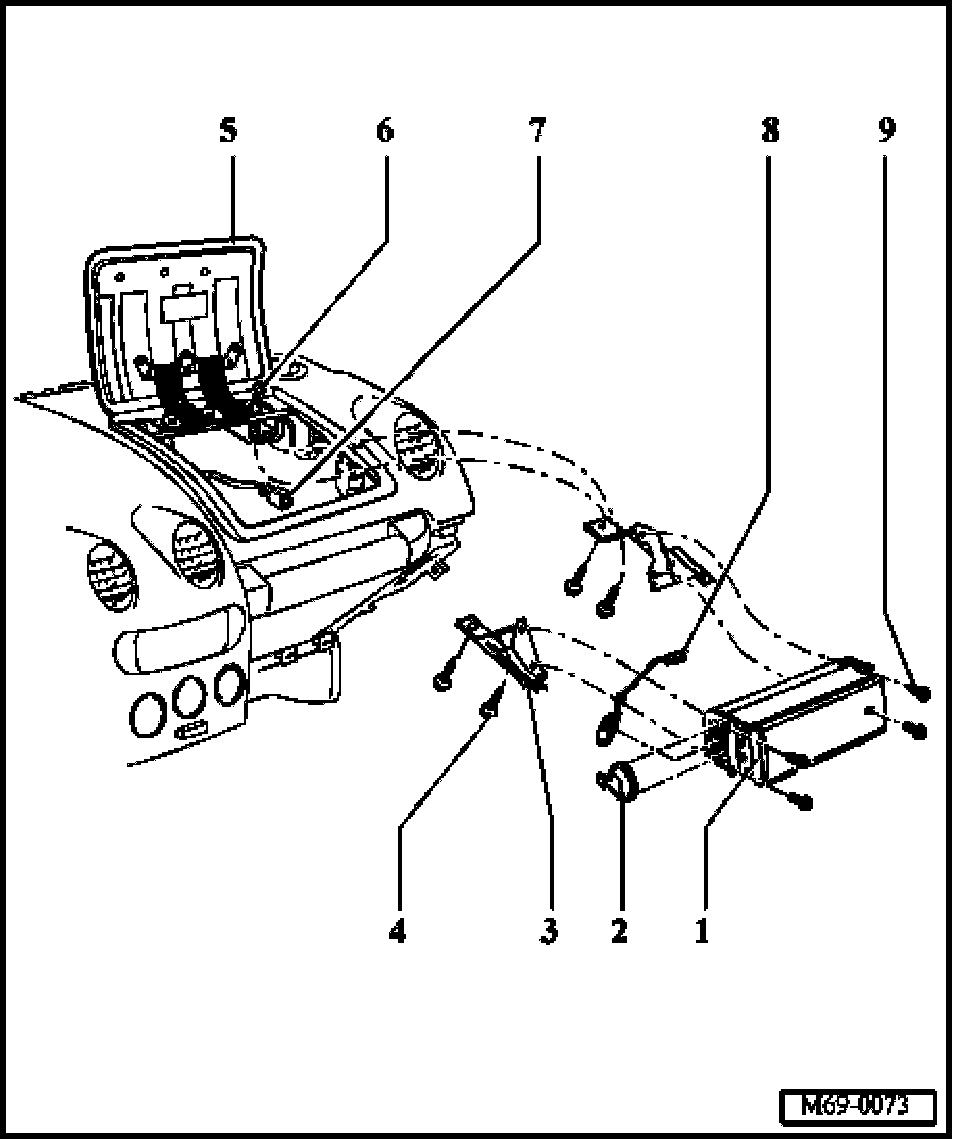

Front Passenger Airbag Unit, Assembly Overview

Front Passenger Airbag Unit, Assembly Overview.







1 Passenger airbag unit with airbag igniter 1, passenger's side -N131-
2 Cover for harness of passenger airbag unit
3 Support
- Must be replaced if airbag has triggered/deployed
4 Bolt
- 12 Nm (9 ft lb)
5 Cover
6 Bolt
- 4 Nm (35 in.lb)

WARNING: If these screws are removed the instrument panel cover on front passenger's side must be replaced.

7 Connector
- to harness of passenger airbag unit, item 8
8 Harness of passenger airbag unit
- Attached to passenger airbag unit to connector, item 7
9 Bolt
- 12 Nm (9 ft lb)
