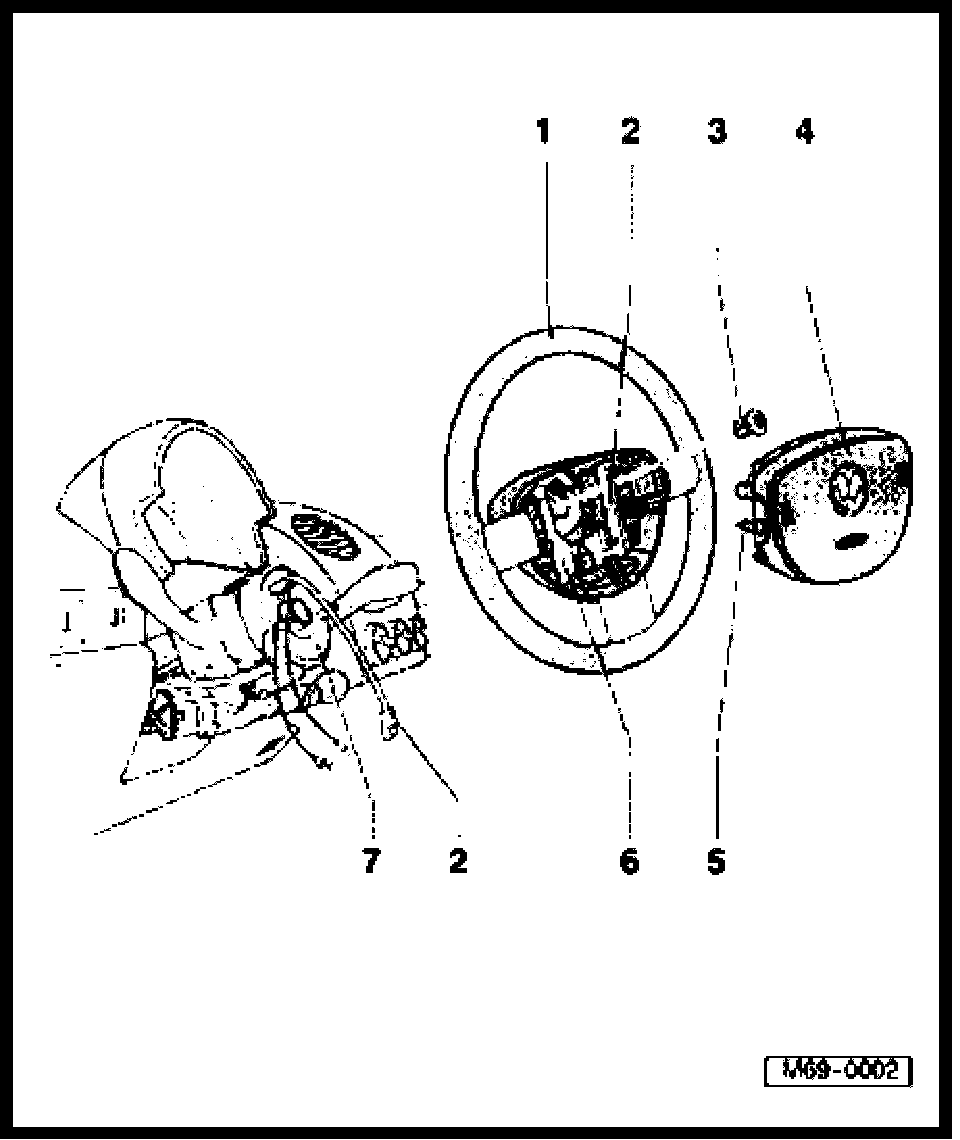

Driver's Airbag Unit, Assembly Overview

Driver's Airbag Unit, Assembly Overview







1 Steering wheel
- Observe installation position when installing Suspension, Wheels, Steering.
2 Connector
3 Multi-point socket head bolt
- 60 Nm
- Equipped with locking compound
- Can be used up to 5 times
- Mark with a center punch mark after each reinstallation
4 Airbag unit
5 Locking hook
- Release from rear of steering wheel
6 Securing plate
7 Return spring with slip ring
