Airbag Control Module -J234-, Coding (Function 07)
Airbag Control Module -J234-, Coding (Function 07)
NOTE:
- The coding is carried out with the code reader V.A.G 1551or with the Vehicle diagnostic, testing and information system VAS 5051.
- New coding numbers have been added especially for the New Beetle convertible. Airbag Control Module -J234- current coding numbers can be found in the Vehicle Diagnosis, Testing and Information System VAS 5051. Additional Code Numbers Convertible (Airbag Module, J234, VW7)
- In the guided fault finding you can choose the code number list using the "Go to" button (Function/component selection).
Coding is only possible when a new control module is used.
- Connecting V.A.G 1551 or VAS 5051 and initiating On Board Diagnosis (OBD).
Scan Tool, Connecting
Introducing On Board Diagnosis (OBD) For Airbag
- Switch on printer with Print button (warning lamp in button lights up) if using V.A.G 1551 or print via the print menu when using VAS 5051, if necessary.
The Airbag Malfunction Indicator Lamp (MIL) - K75- lights up continuously.
- Press buttons -1- and -5- (the address word of the vehicle system to be tested "Airbag" is entered with 15).
Indicated on display:
Rapid data transfer Q
15 Airbag
- Confirm entry with -Q- button.
Indicated on display of scan tool V.A.G 1551:
6Q0909605E 04 AIRBAG VW7 0518 ->
Coding 0012340 WSC12345
- Press -> button
Indicated on display:
Rapid data transfer HELP
Select function XX
- Press buttons -0- and -7- (with 07 the function "Code control module" is selected).
Indicated on display:
Rapid data transfer Q
07 Code control module
- Confirm entry with -Q- button.
Indicated on display:
Code control module
Enter code number XXXXX (0--32000)
- Enter code number according to table:
NOTE: Airbag Control Module -J234- current coding numbers can be found in the Vehicle Diagnosis, Testing and Information System VAS 5051.
> 1999 MY Coding
Index Code number
F 00070
AQ 16721
Index letter is the same as part number suffix. For example: Part no. 1J0 909 608 AQ; Index is "AQ".
- Press -Q- button to confirm input.
2000 > MY Coding

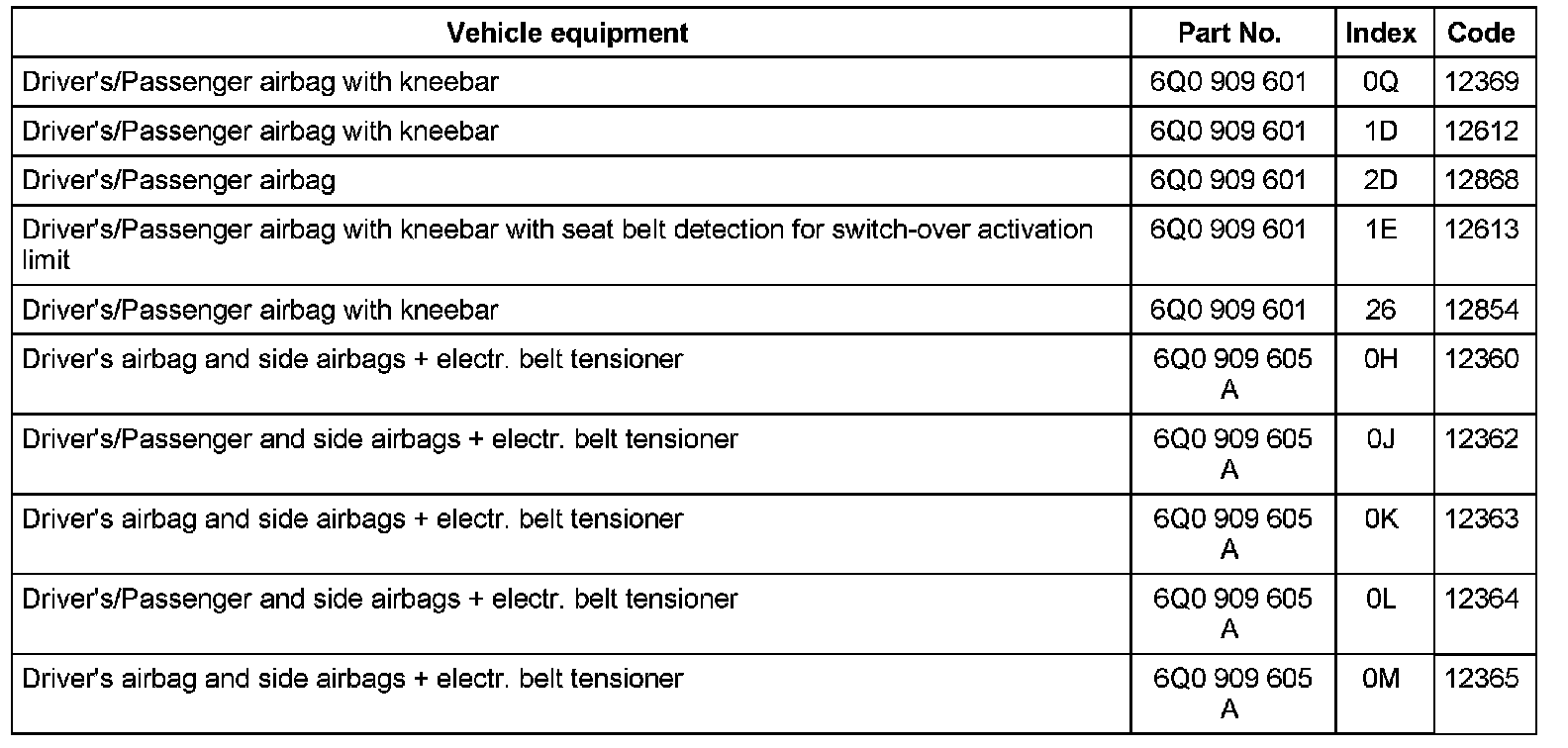

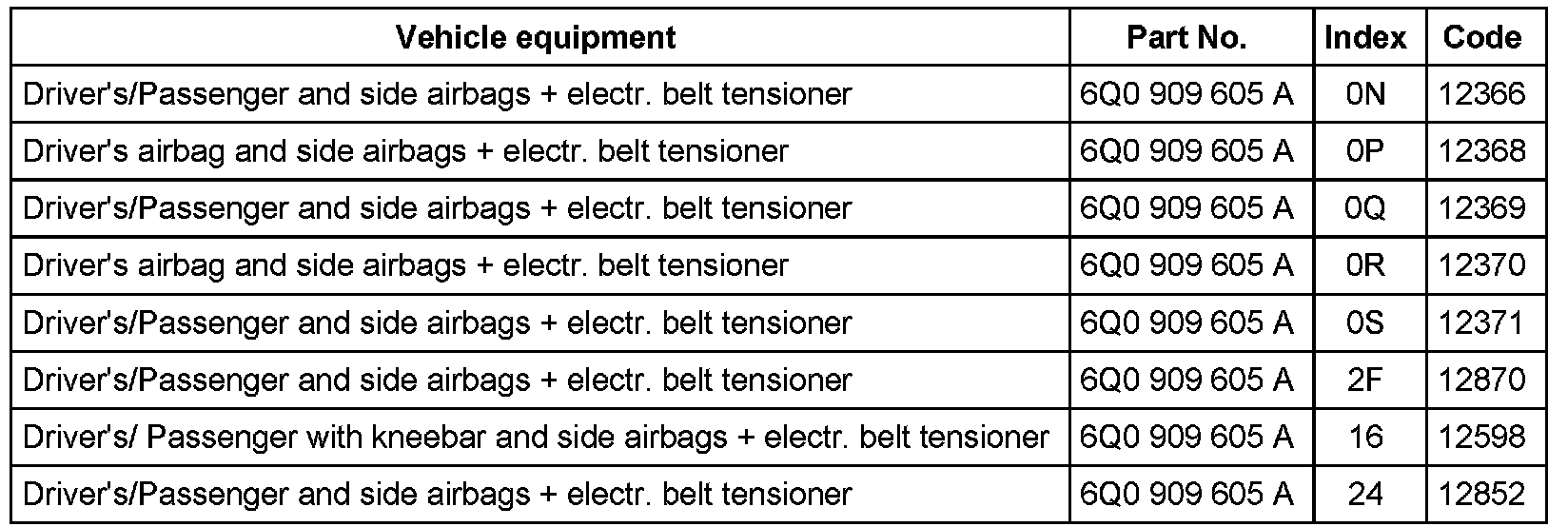

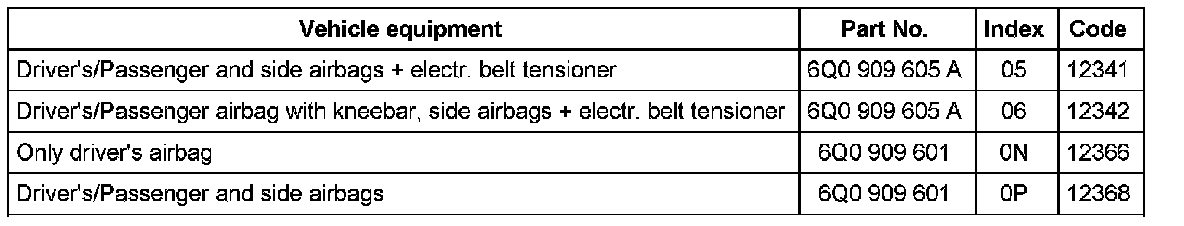

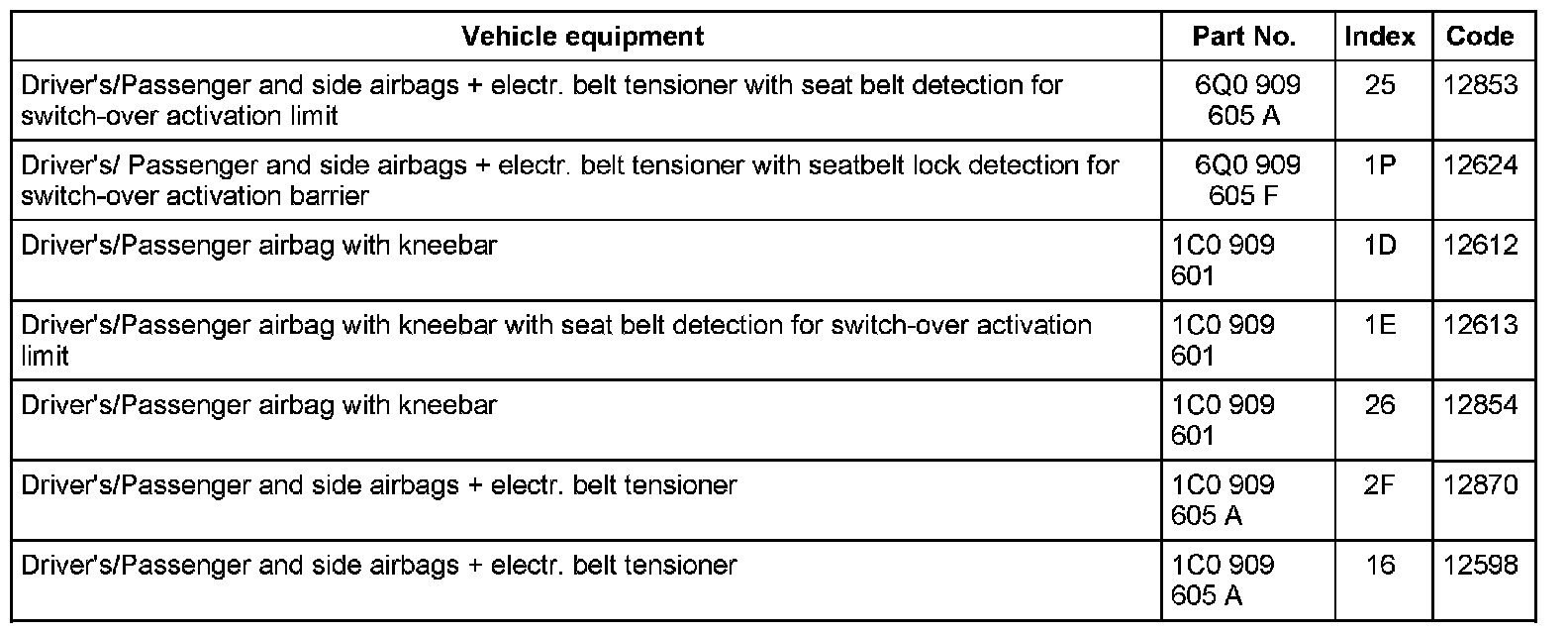

Part 1:
Part 2:
Part 3:
Part 4:
Part 5:
