Radiator Cooling Fan Control Module: Locations

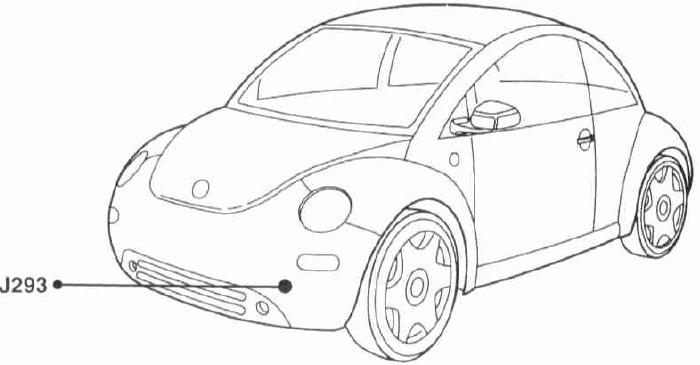

J293:






J293:

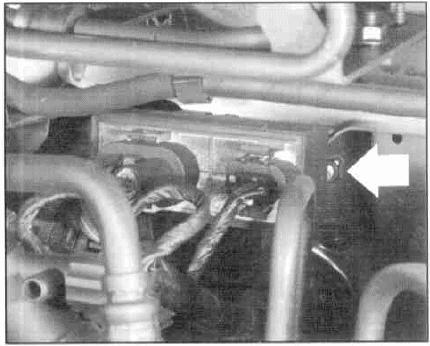

Component View

J293 Coolant Fan Control (FC) Control Module
^ In engine compartment, bottom, to left of radiator
