Shift Interlock Solenoid: Locations

Electrical/electronic components

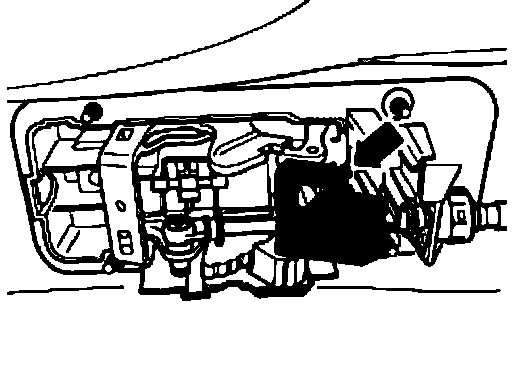

Fig. 7 Shift lock solenoid -N110
Location: The shift lock solenoid is located in the selector mechanism (arrow).
