Camshaft Adjustment, Servicing

Camshaft Adjustment, Servicing (Vehicles with engine code AWP, AWV)







Cylinder head, removing and installing.

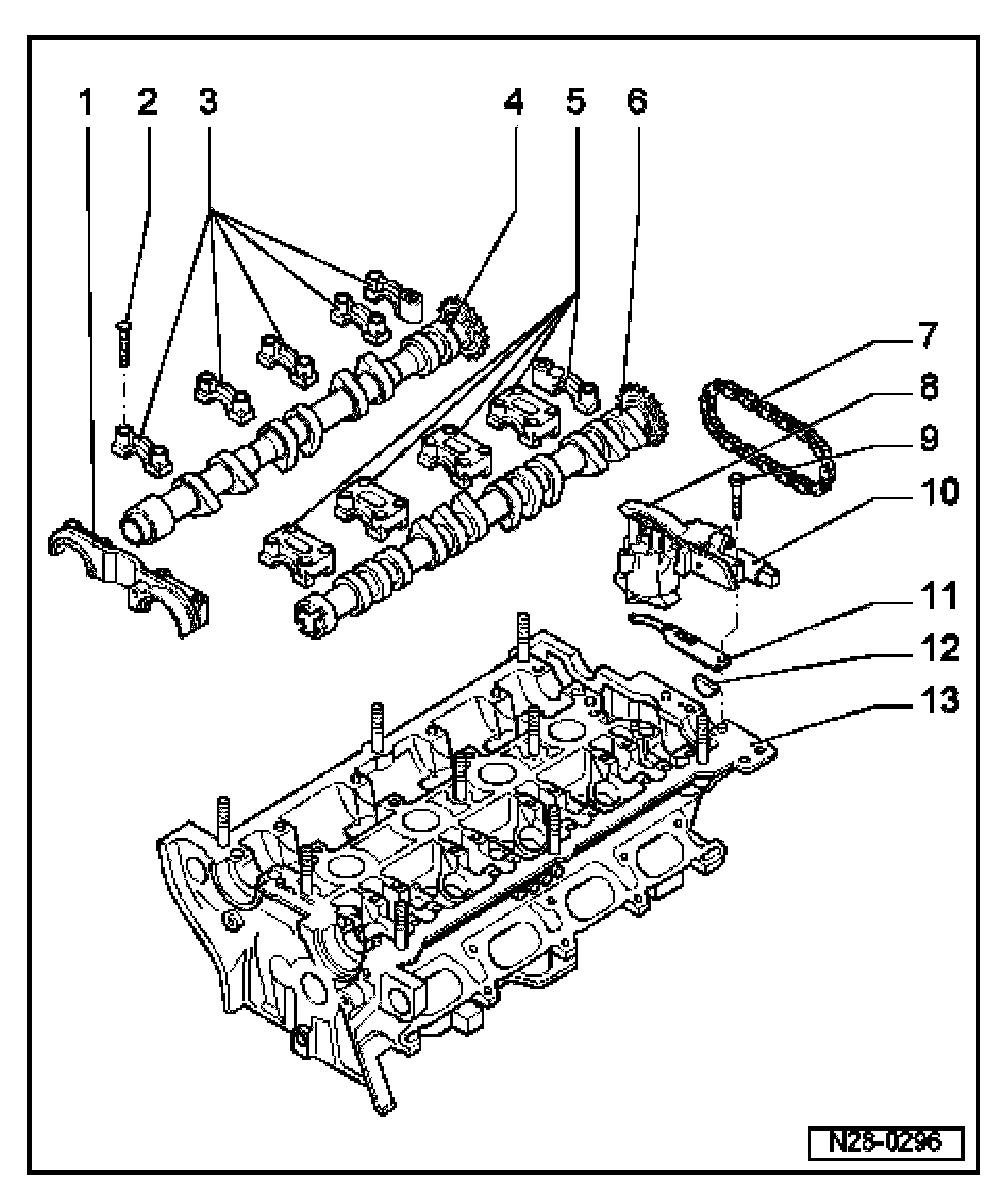

Valvetrain, servicing.

1 Double bearing cap
2 10 Nm
3 Exhaust camshaft bearing cap
4 Exhaust camshaft
5 Intake camshaft bearing cap
6 Intake camshaft
7 Drive chain
- Mark direction of travel (installation position) before removing
8 Camshaft adjuster
- Check valves for camshaft adjustment
9 10 Nm
10 Valve -1- for camshaft adjustment -N205-*
- only together with camshaft adjuster item 8 , replacing
11 Seal
- Rubber/metal seal
12 Seal
13 Cylinder head
