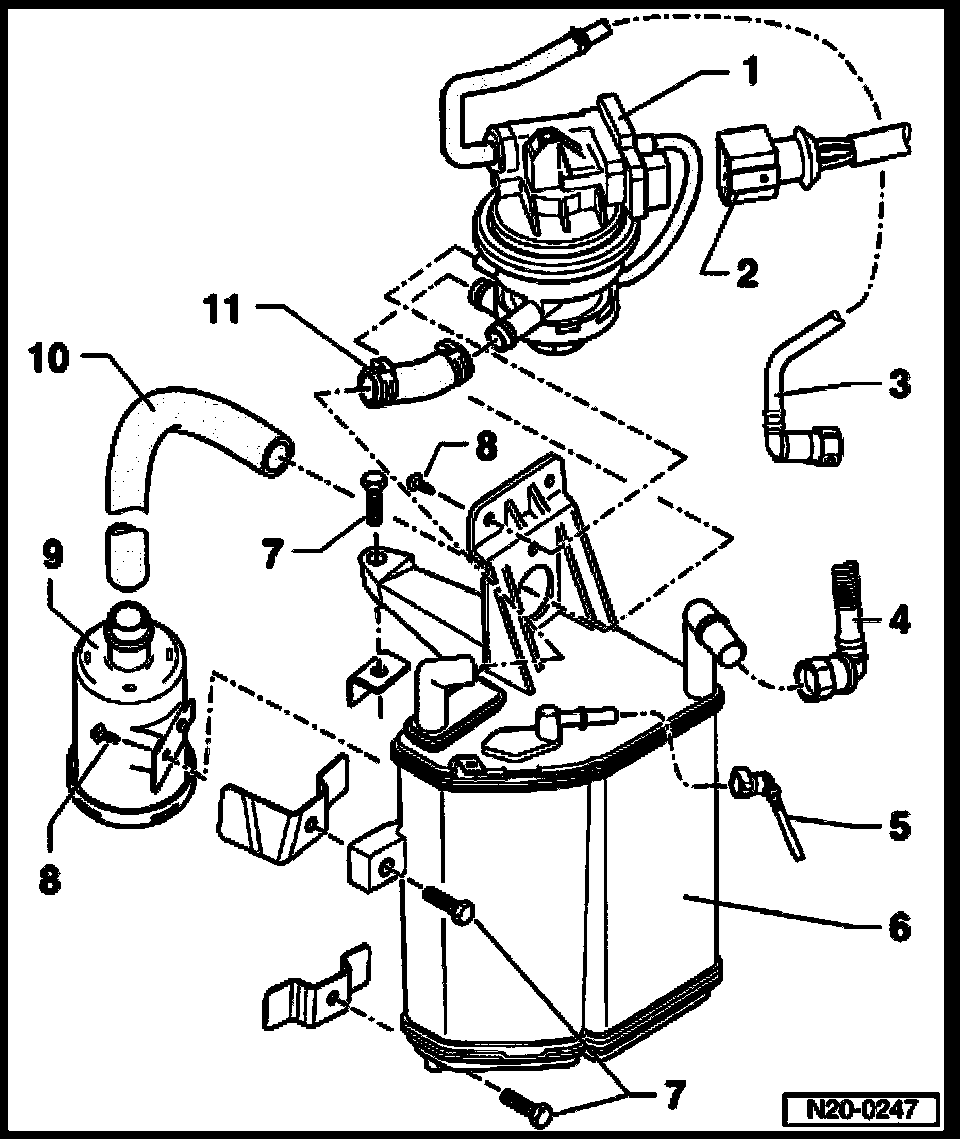

Parts of EVAP Canister System, Removing and Installing

Parts Of EVAP Canister System, Removing And Installing







NOTE: Components marked with * are tested via On Board Diagnostic (OBD), Diagnostic mode 3: Check DTC memory.


1 Leak detection pump (LDP) -V144-*
- Under wheel housing liner in rear right wheel housing
- Valve is activated (pulsed) by the Engine Control Module (ECM)
2 Connector
- black, 3-pin
3 Vacuum line
- to Throttle Valve Control Module -J338-, item 15
- to disengage, squeeze together at front
4 Vent line
- To change-over valve, item 10
5 Vent line
- white
- Check for secure fitting
- To Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
6 EVAP canister
- Under wheel housing liner in rear right wheel housing
7 10 Nm
8 3 Nm
9 Air filter for diagnostic pump
10 Connection hose
- Intake side
11 Connection hose
- Pressure side
