Selectable Functions When Using VAG1551/1552 or VAS5051

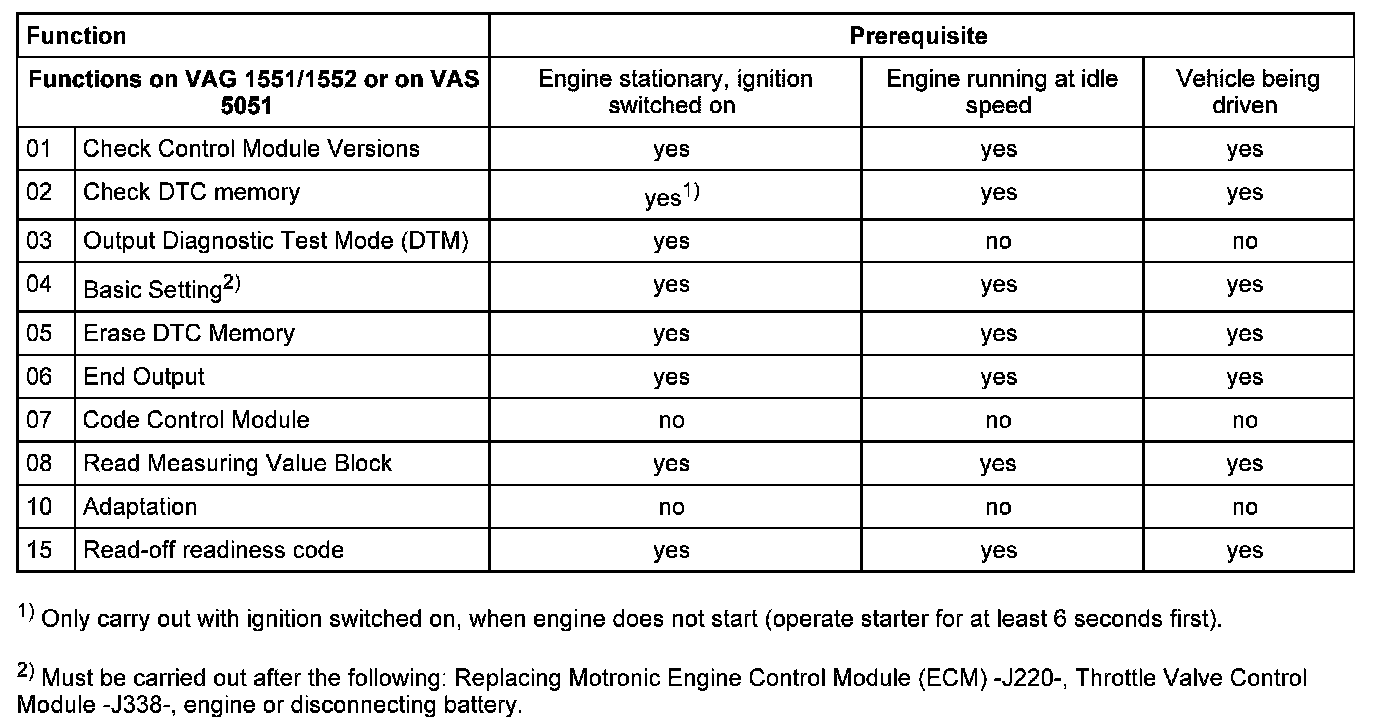

Functions which can be selected when using the scan tools VAG 1551 or 1552 or tester VAS 5051 (The prerequisites to select the desired functions can be found in the following table)
