Read Measuring Value Blocks (Function 08)
>>
With Manufacturer's Scan Tool
>>
Evaluating Measuring Value Blocks
>>
Display Groups 90-97 (Performance Increase)
Display Groups 90-97 (Performance Increase)
Measuring Value Block, Evaluating Display Groups 90...97 (Performance Increase)

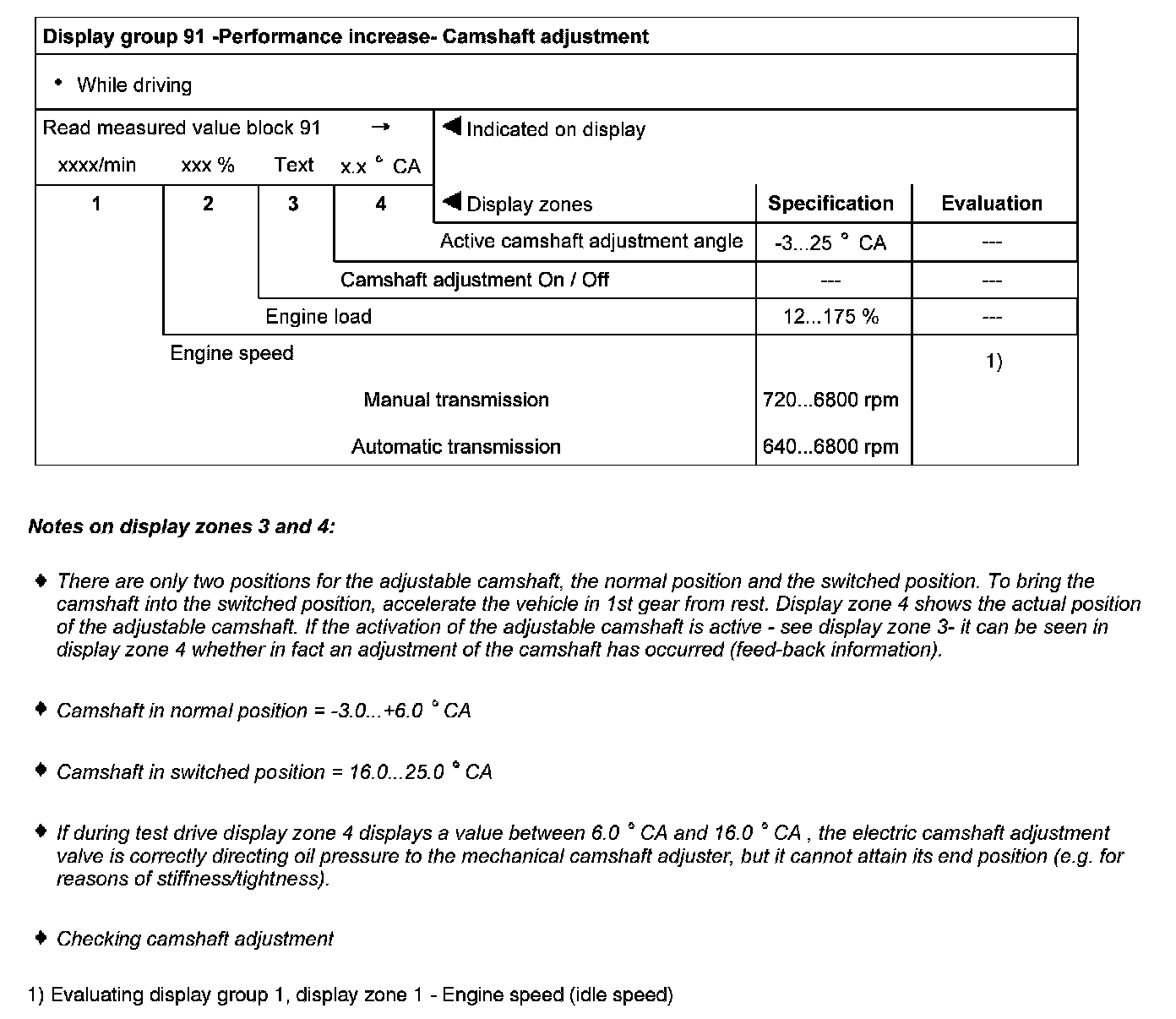

Display Group 91:

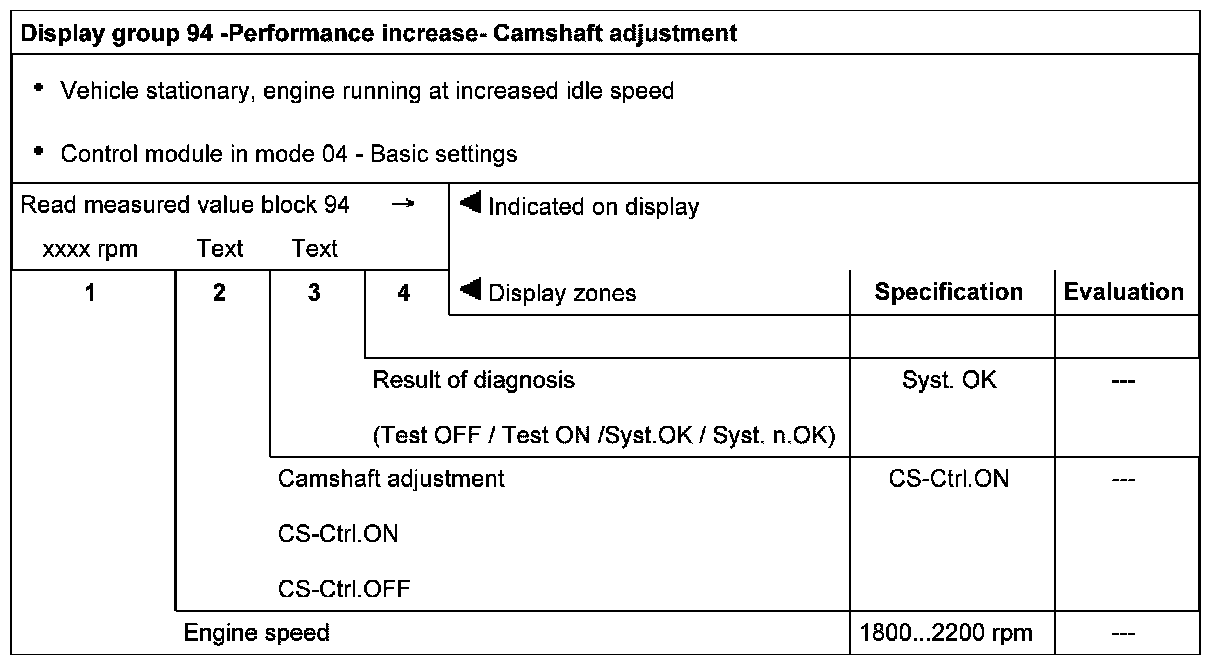

Display Group 94:
