Display Groups 70-79 (Emission Reduction)




Measuring Value Block, Evaluating Display Groups 70...79 (Emission Reduction)

Readiness code

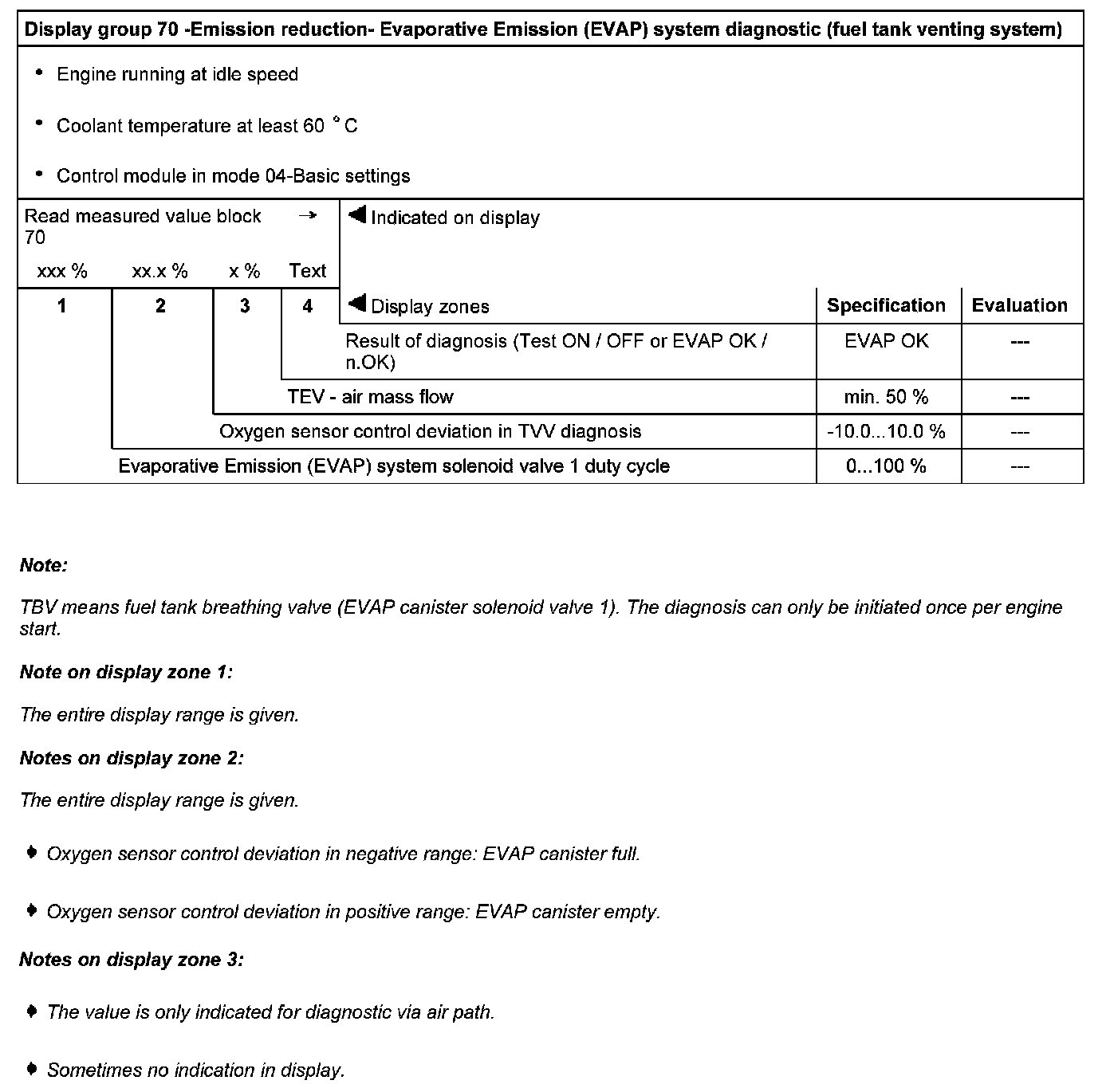

Display Group 70:






Readiness code

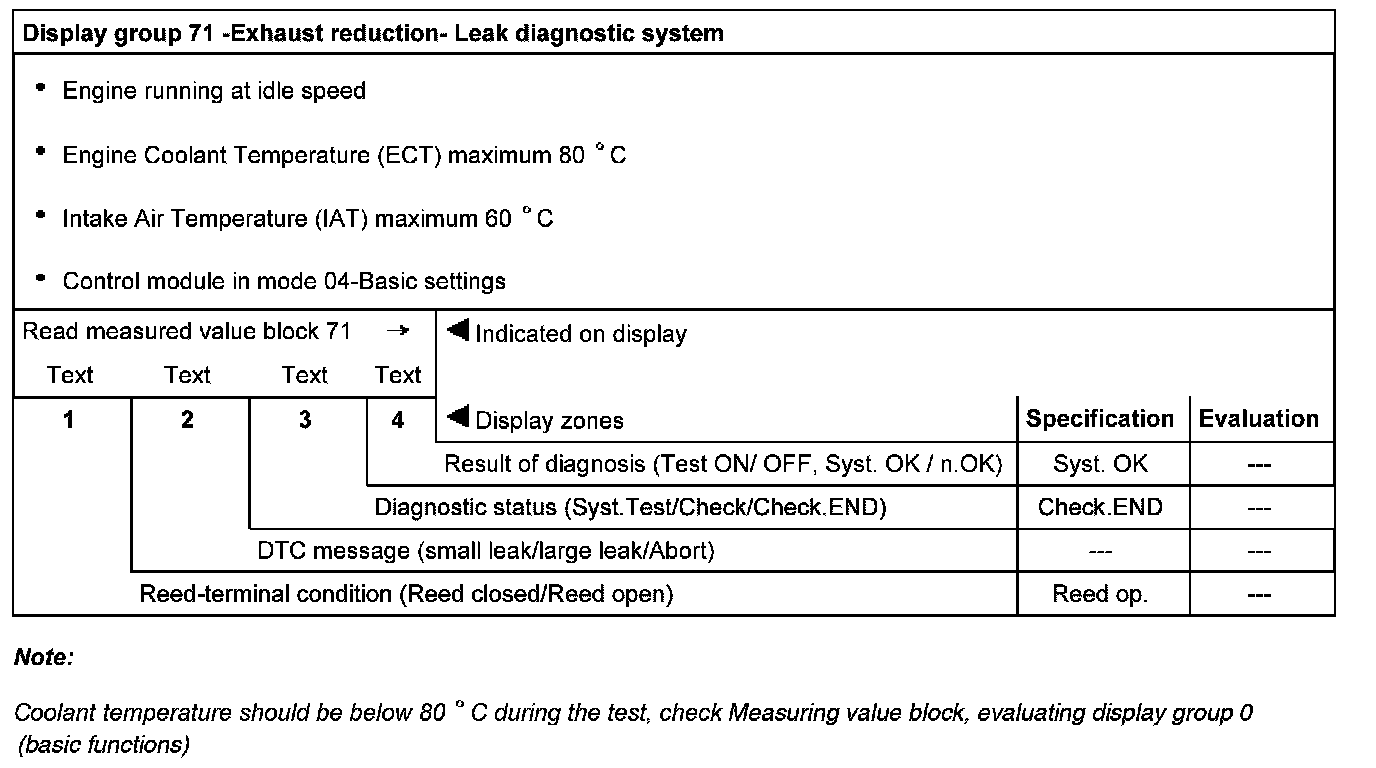

Display Group 71:






Readiness code

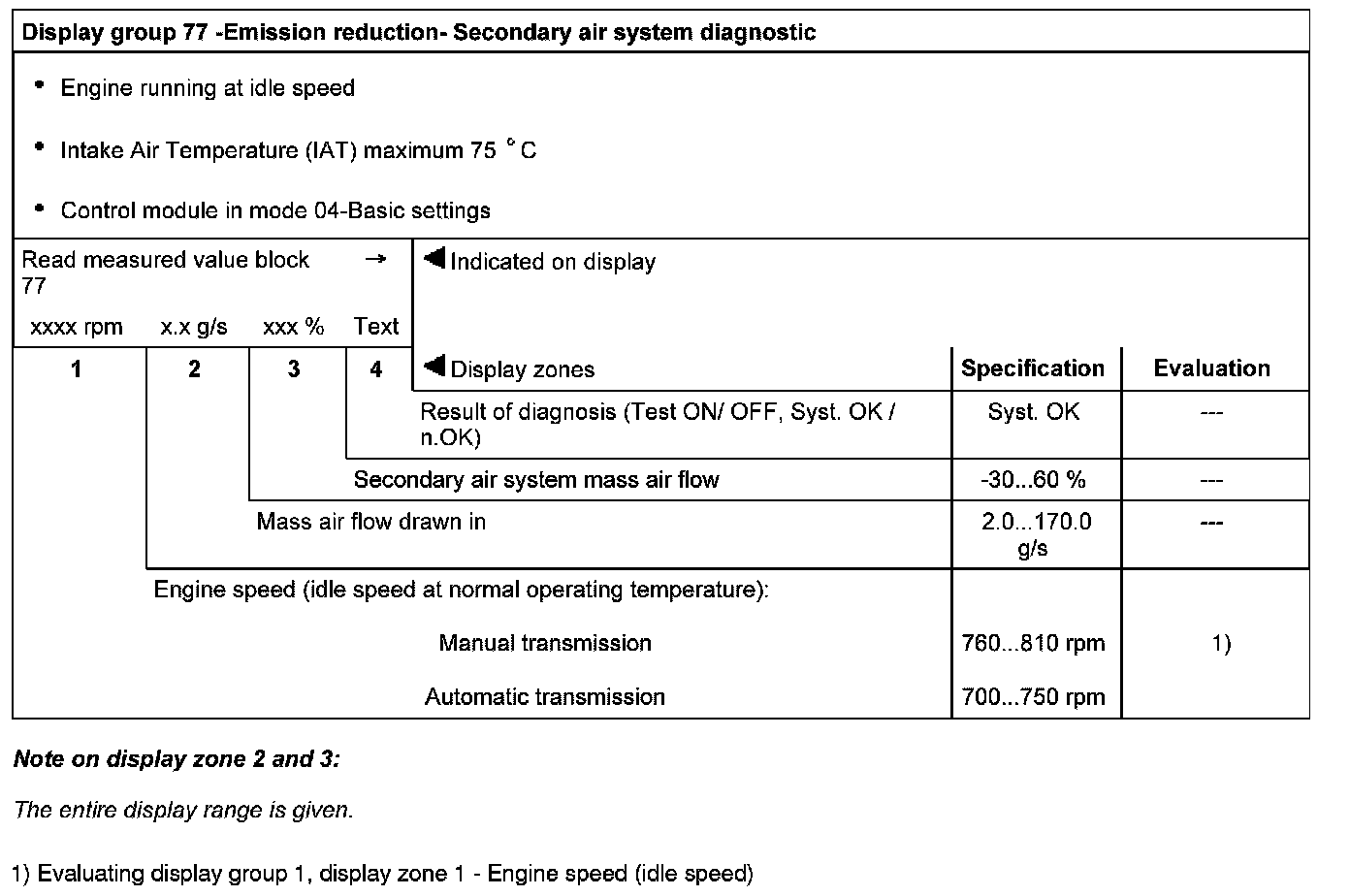

Display Group 77:
