Display Groups 50-69 (Speed Regulation)

Measuring Value Block, Evaluating Display Groups 50...69 (Speed Regulation)

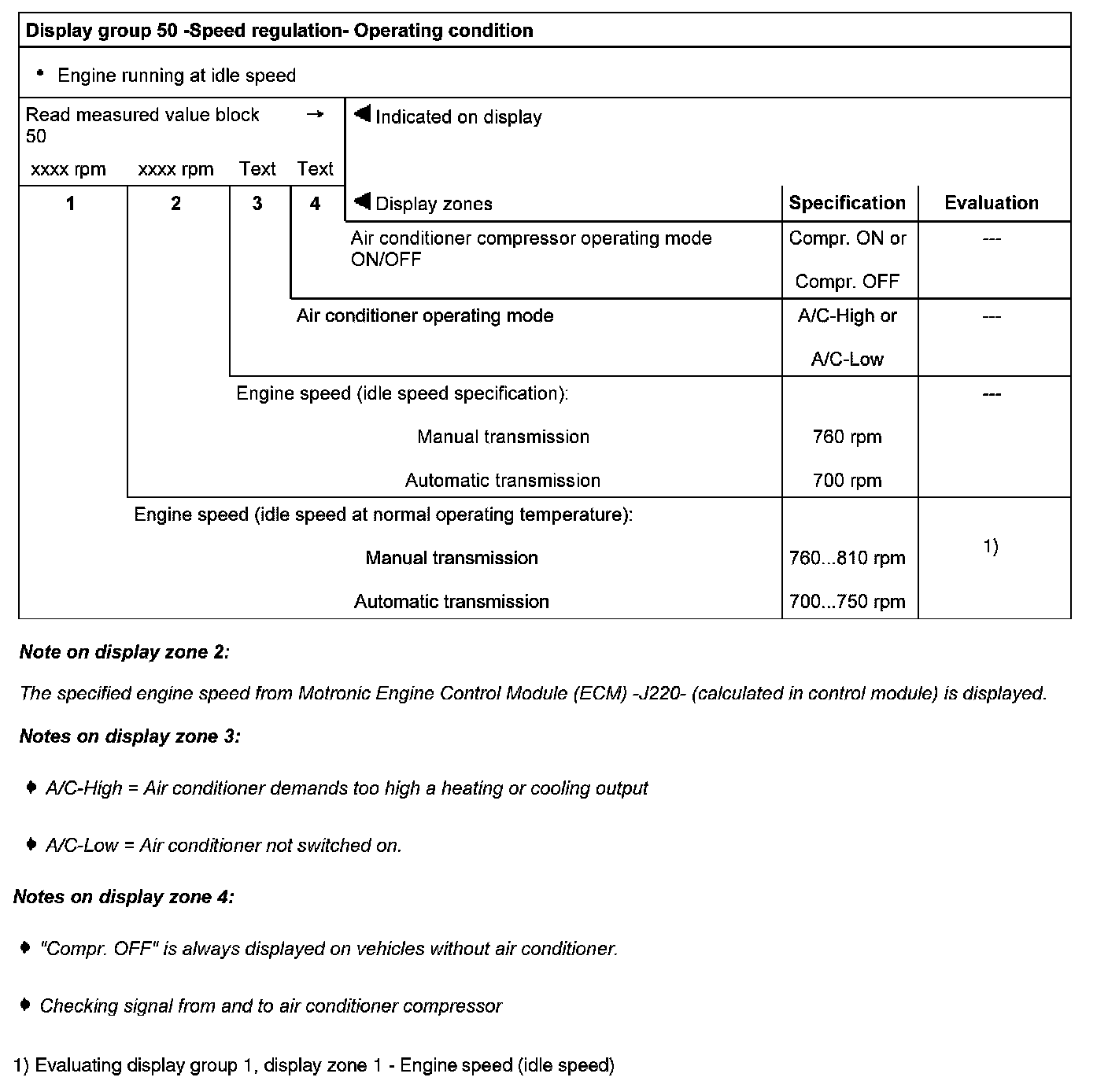

Display Group 50:

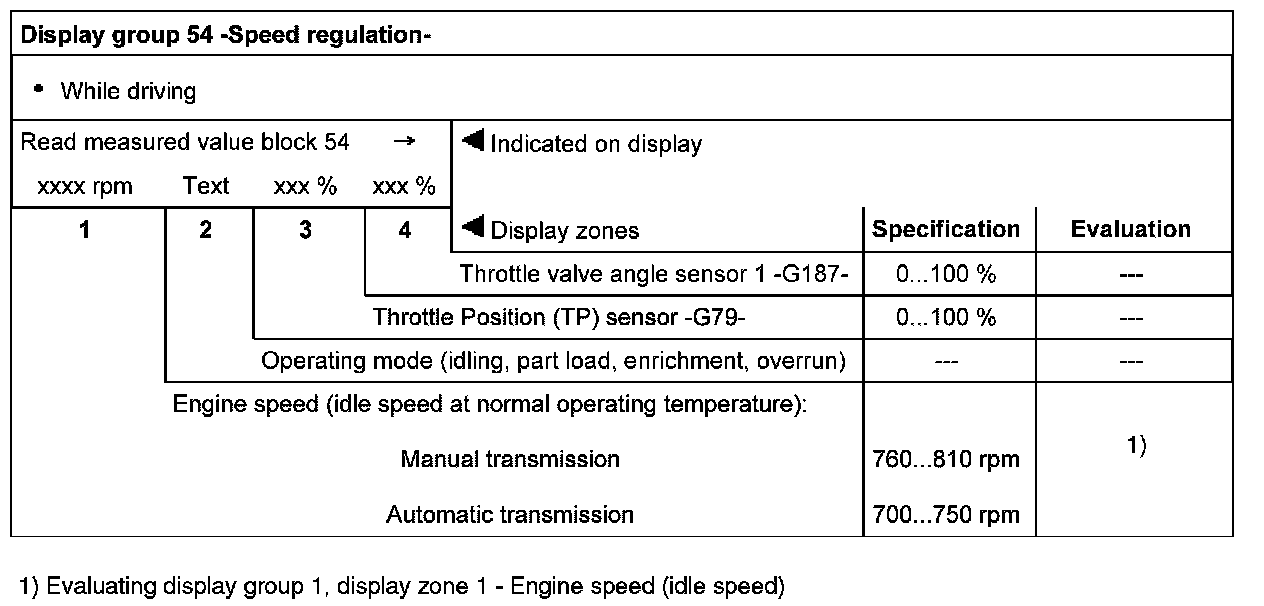

Display Group 54:

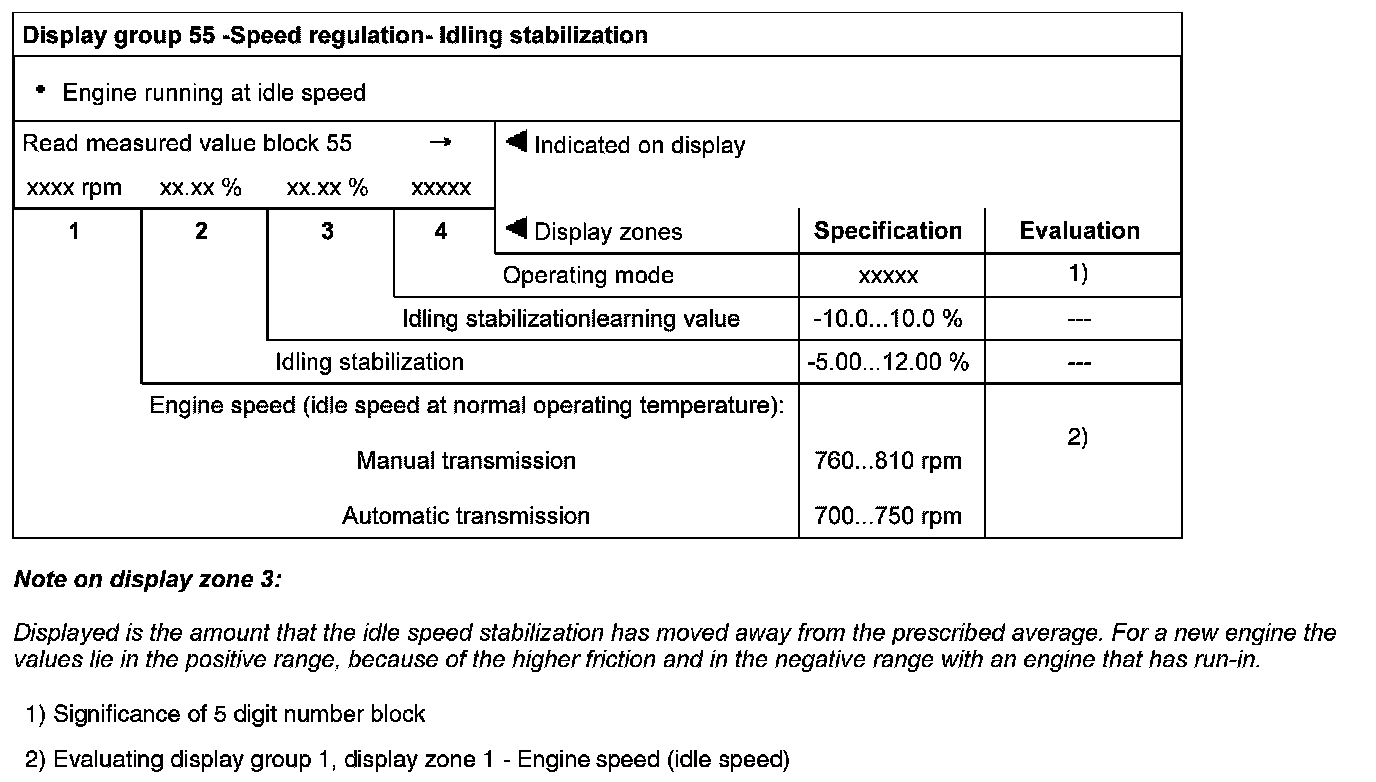

Display Group 55:

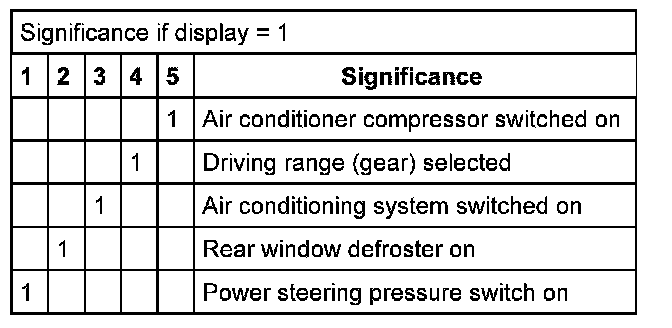

Significance of 5 digit number block

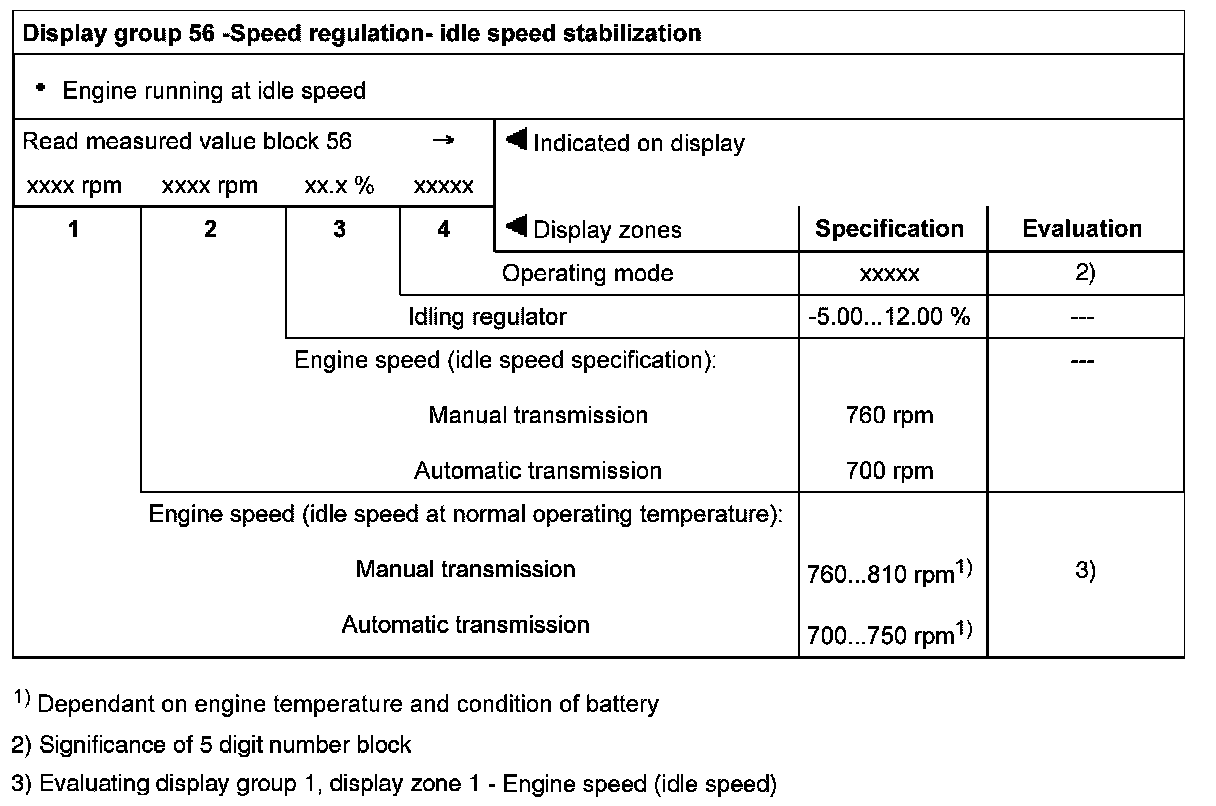

Display Group 56:

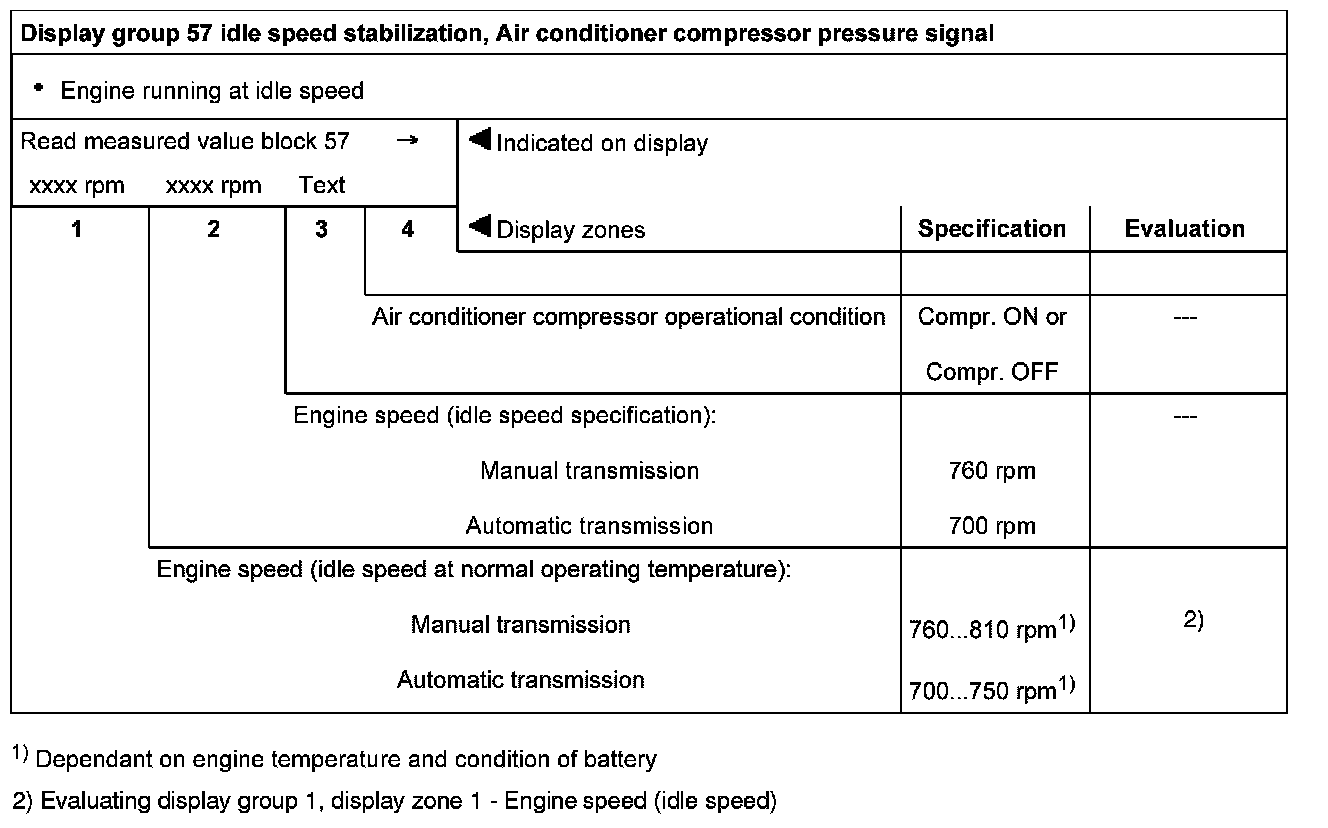

Display Group 57:

Evaluating display group 57, display zone 4







Readiness code

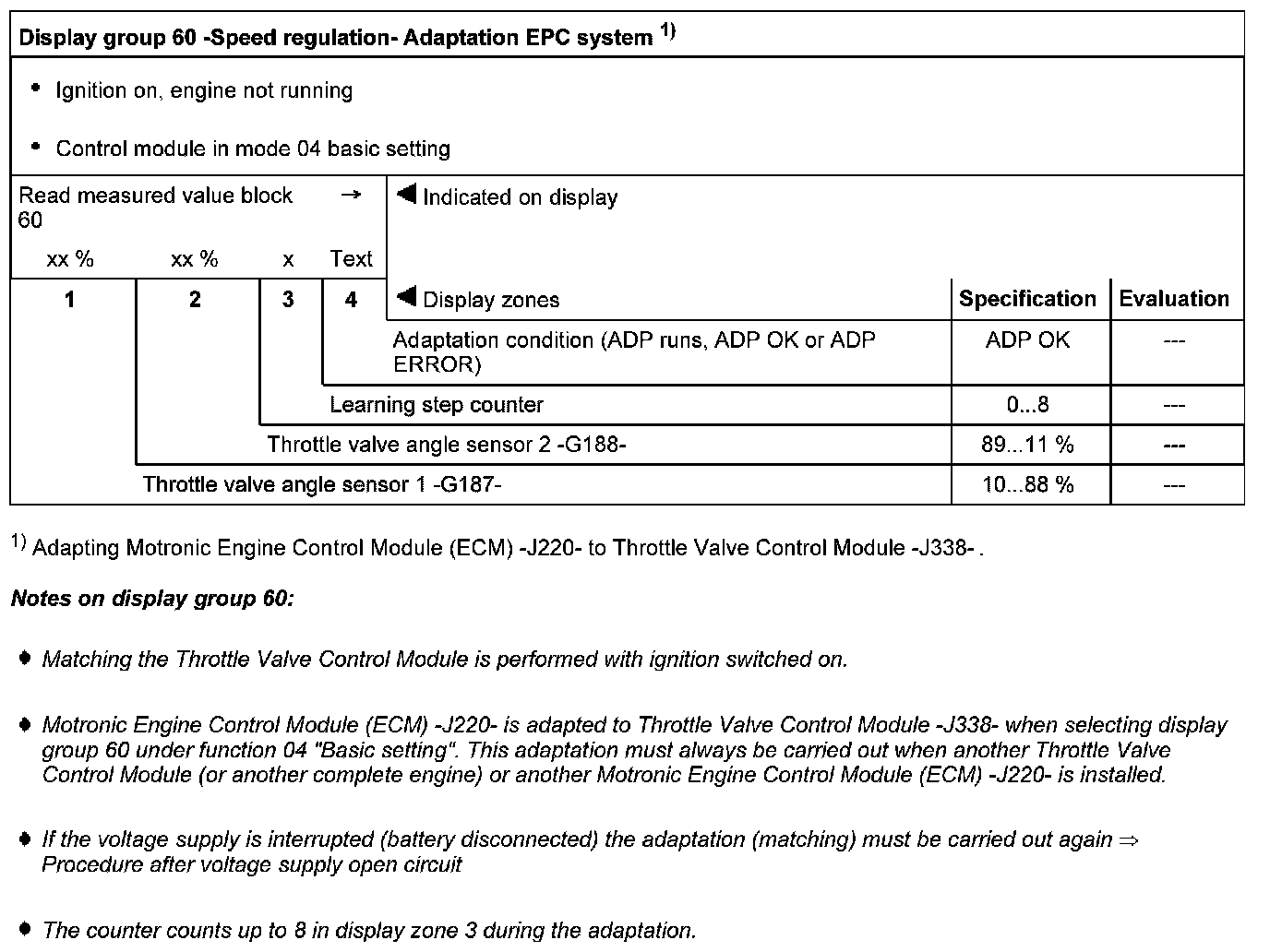

Display Group 60:

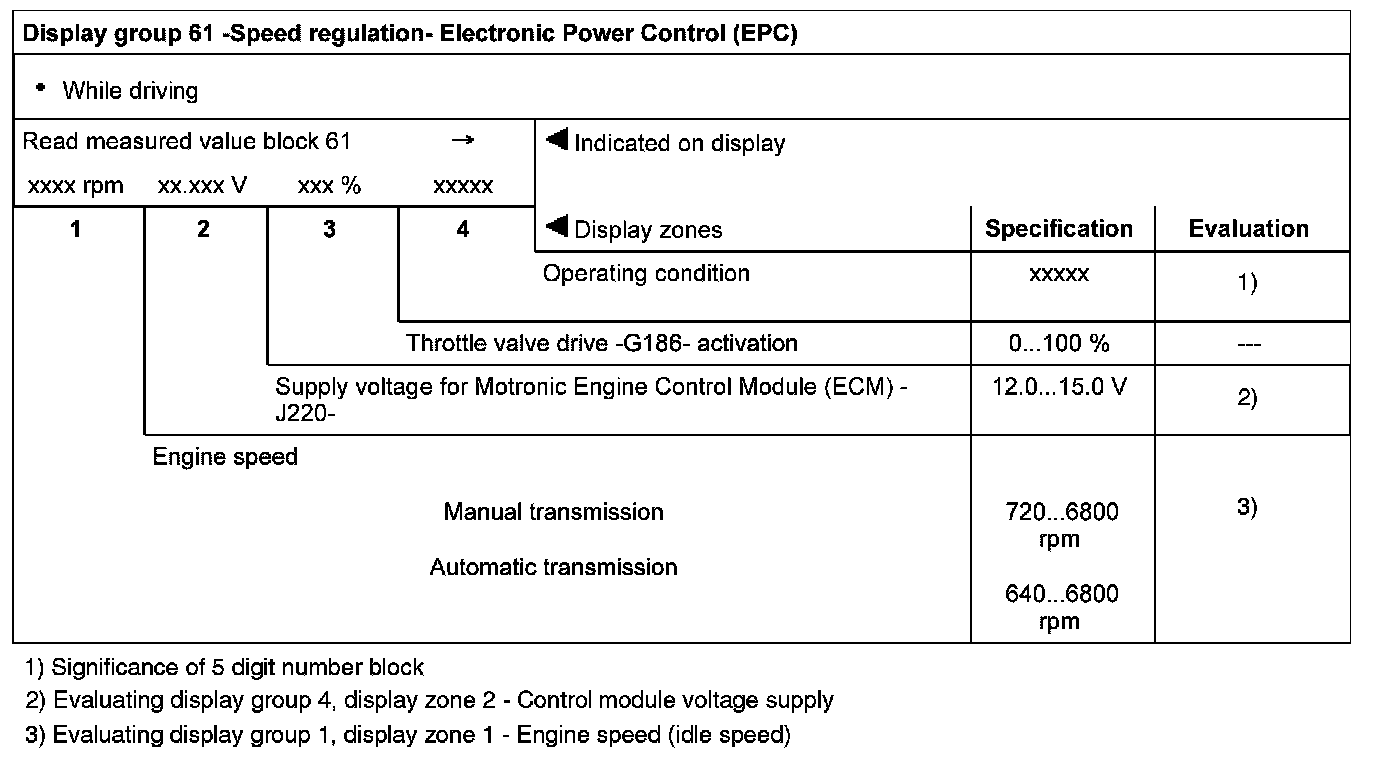

Display Group 61:

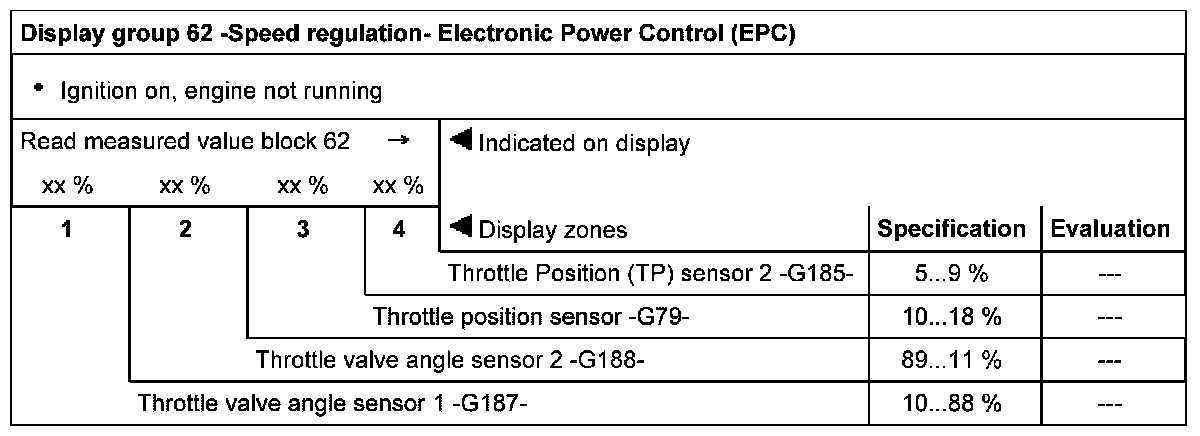

Display Group 62:

Vehicles with automatic transmission

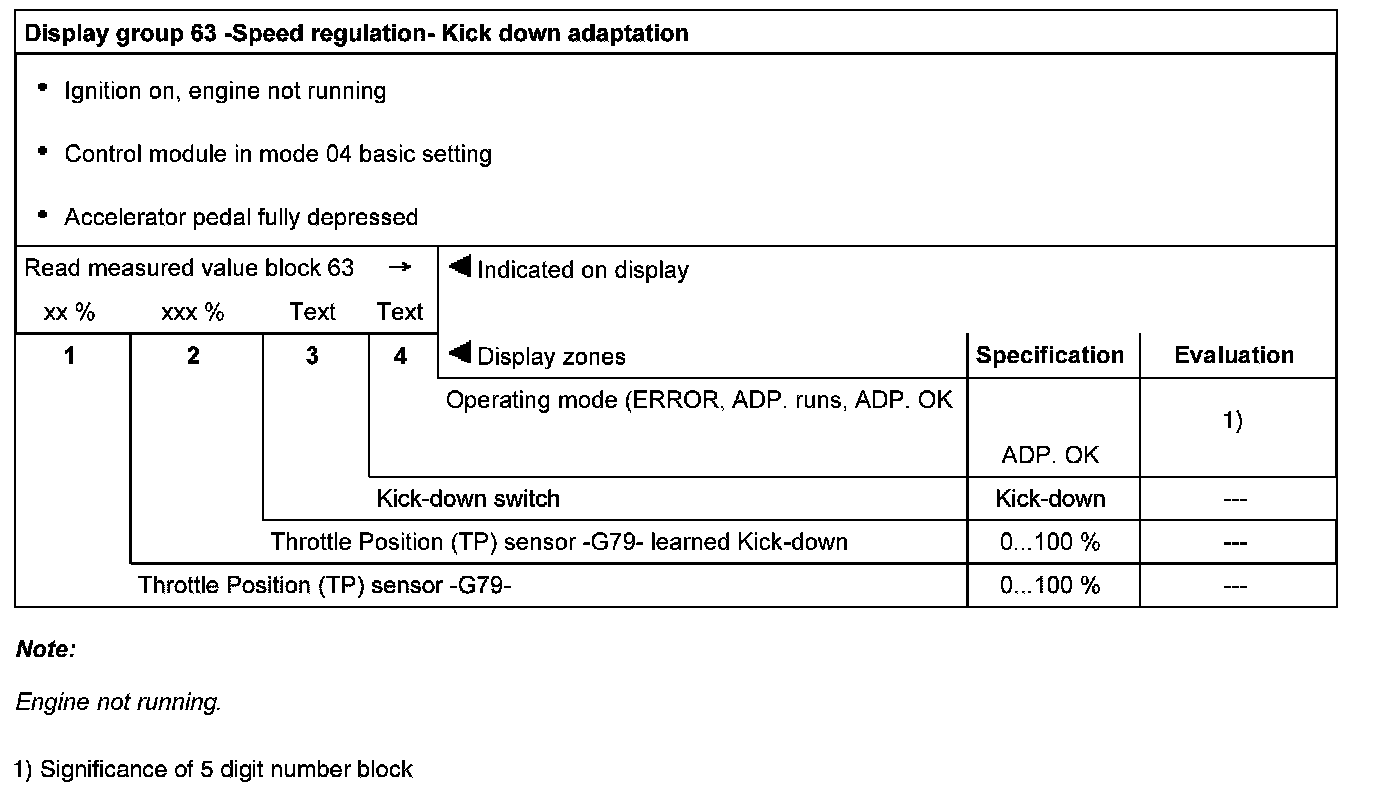

Display Group 63:

Vehicles equipped with cruise control system (CCS)

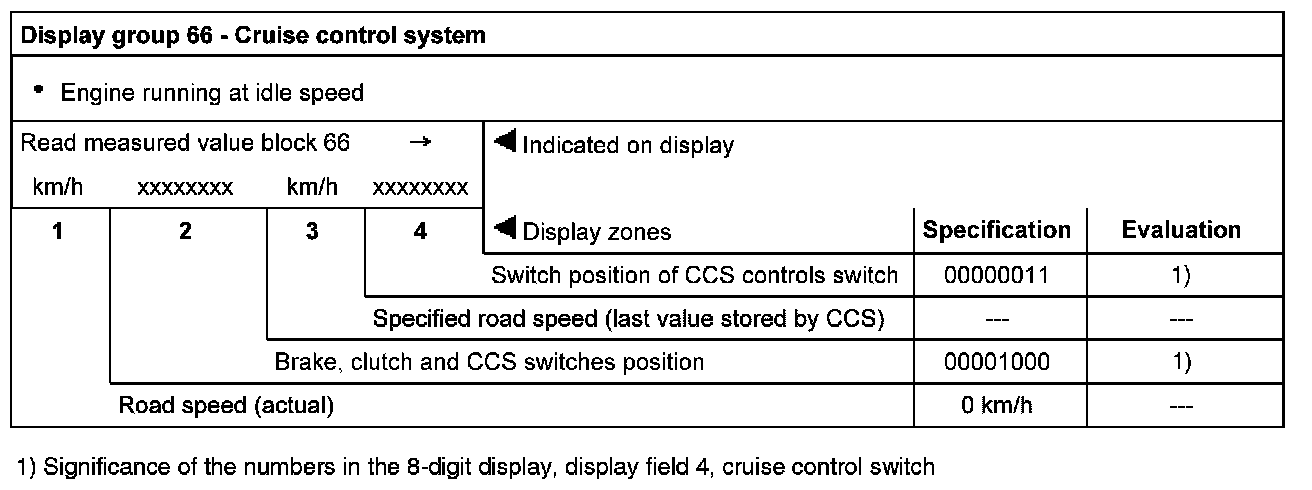

Display Group 66:

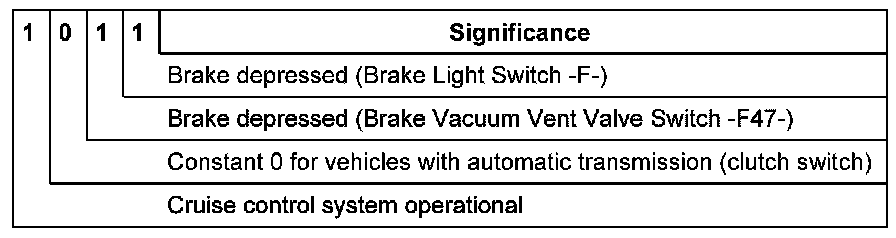

Significance of the numbers in the 8-digit display, display field 2, brake, clutch and cruise control switch







NOTE: Only the last four digits of the 8-digit display are described in the table.


- Checking clutch pedal switch.
- Checking brake light and Brake Vacuum Vent Valve Switch -F47-. Brake Light & Brake Vacuum Vent Valve Switch Signal, Checking
- Set cruise control system to operational with log-in code 11463; deactivate with log-in code 16167.

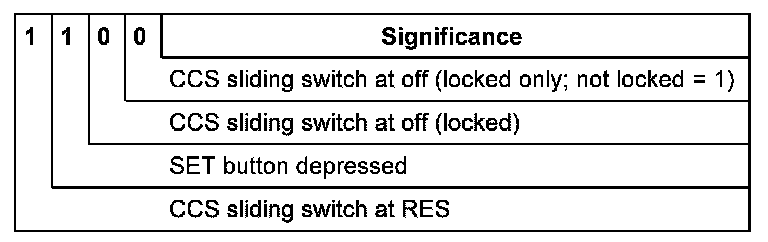

Significance of the numbers in the 8-digit display, display field 4, cruise control switch







NOTE: Only the last four digits of the 8-digit display are described in the table.


Function of cruise control system:
See Vehicle Owner's Manual
