Display Groups 120-129 (Communication)




Evaluating Measured Value Blocks, Display Groups 120...129 (Communication)

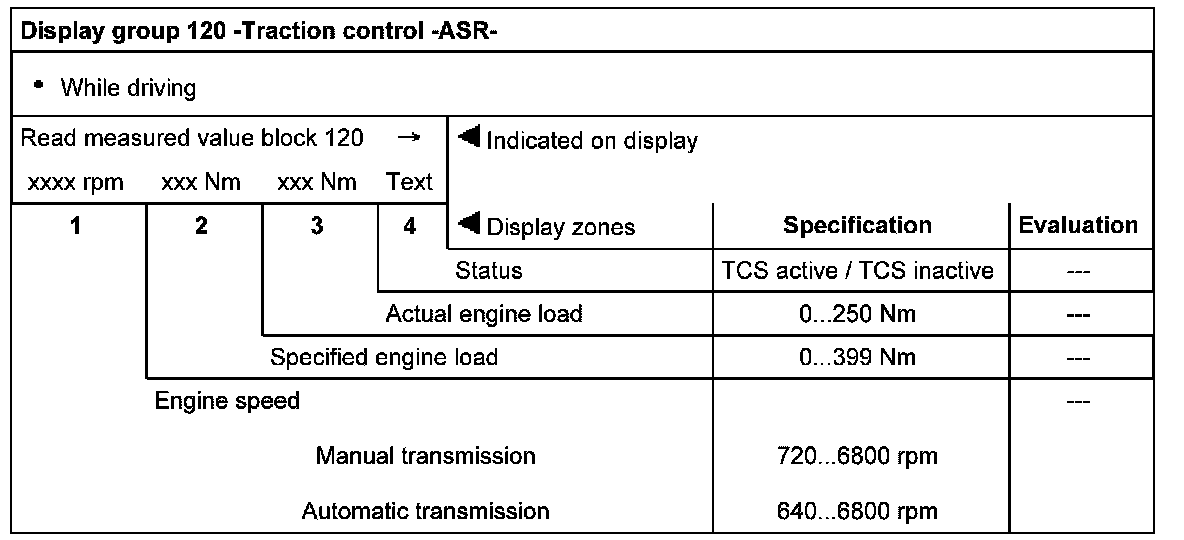

Display Group 120:

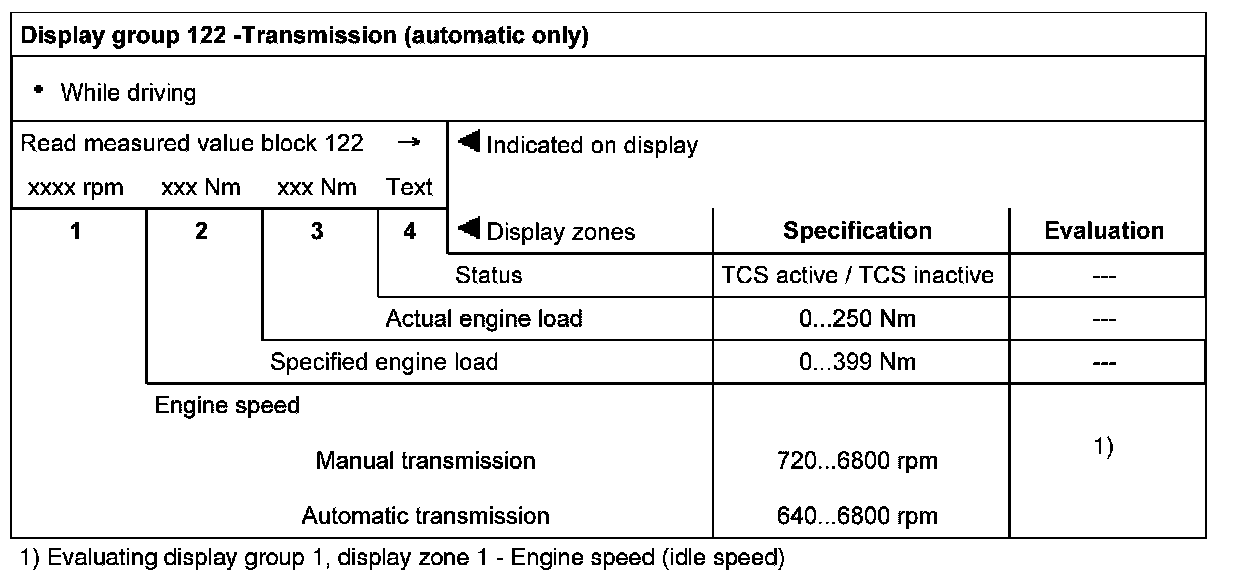

Display Group 122:

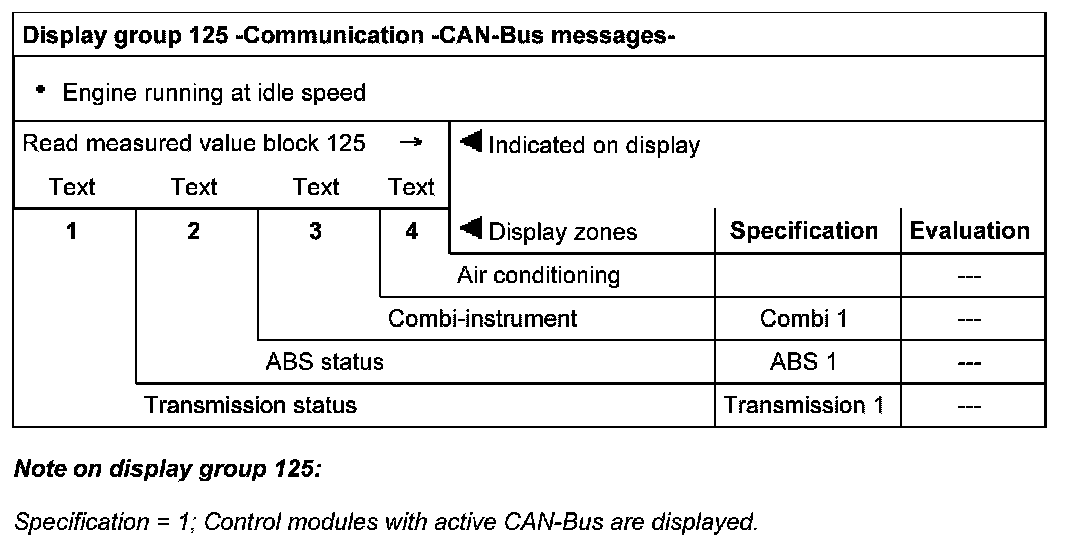

Display Group 125:






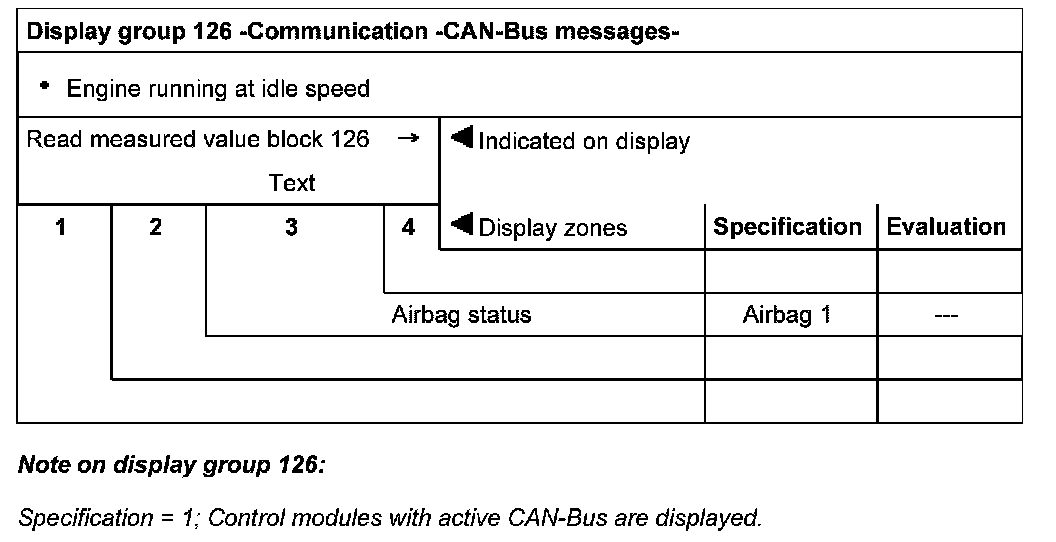

Display Group 126:
