Display Groups 110-119 (Charge Pressure Control)
Measuring Value Block, Evaluating Display Groups 110...119 (Charge Pressure Control)

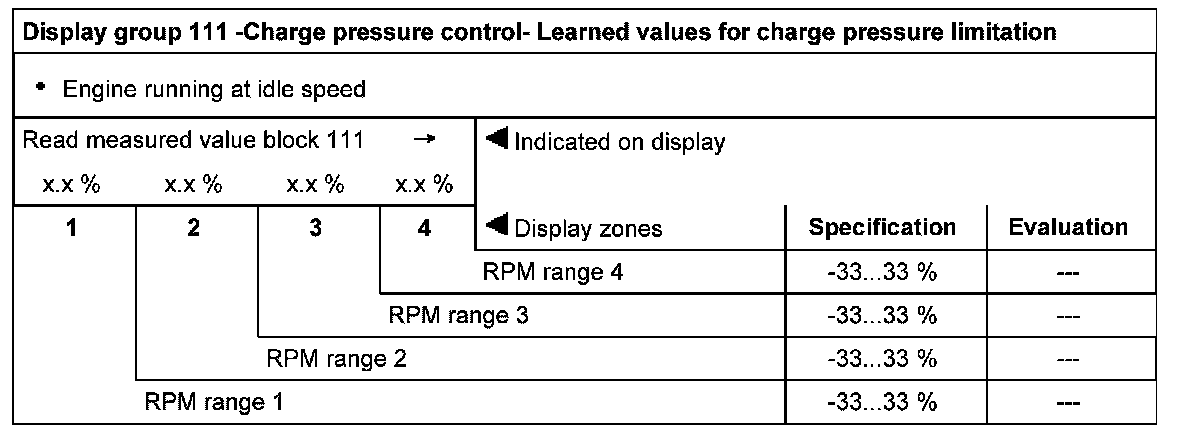

Display Group 111:

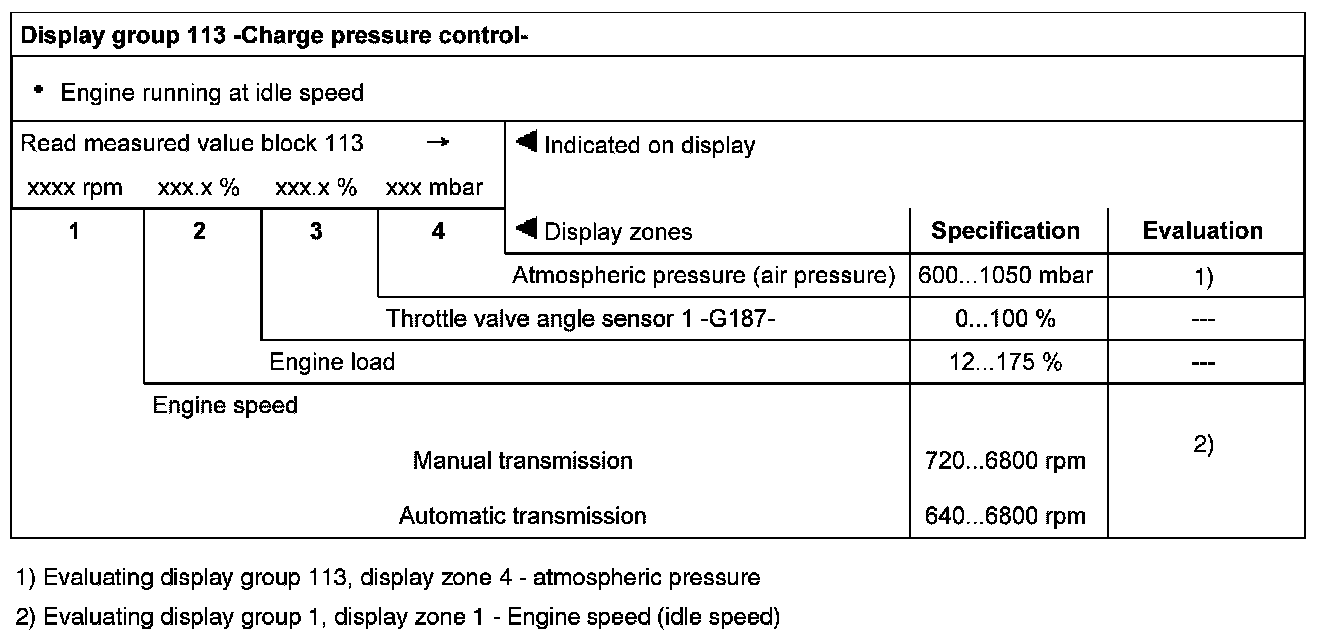

Display Group 113:
Evaluating display group 113, display zone 4 - atmospheric pressure
Elevation Air pressure
0 m 998 mbar
500 m 954 mbar
1000 m 902 mbar
1500 m 853 mbar
2000 m 805 mbar
2500 m 756 mbar
3000 m 704 mbar
3500 m 655 mbar
4000 m 607 mbar
NOTE: The air pressure can fluctuate depending upon the atmospheric conditions.

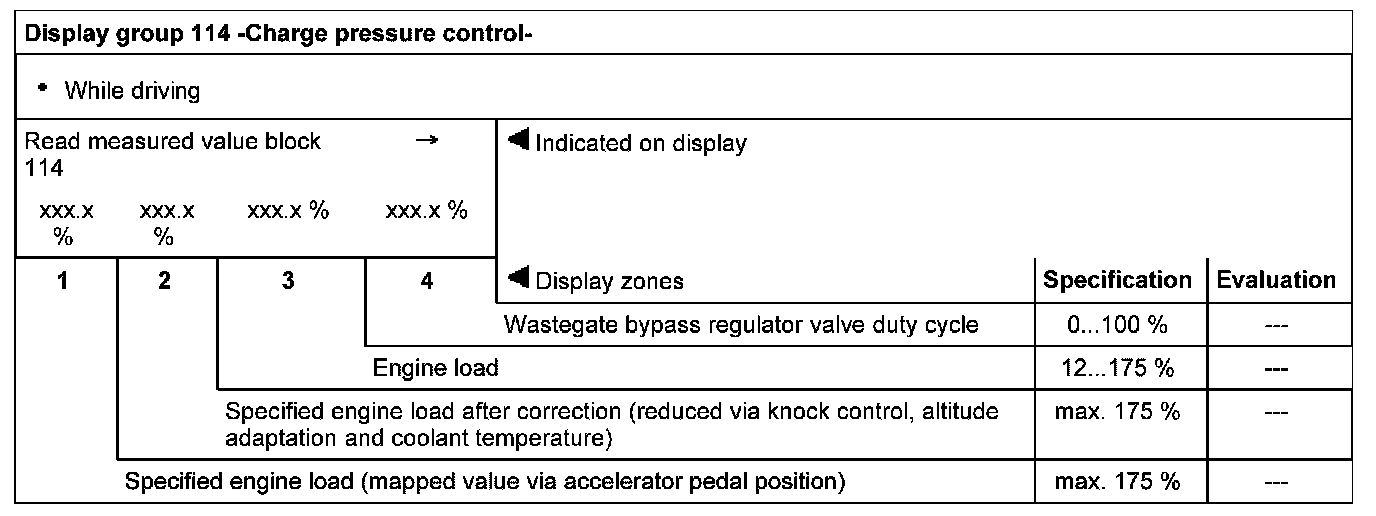

Display Group 114:

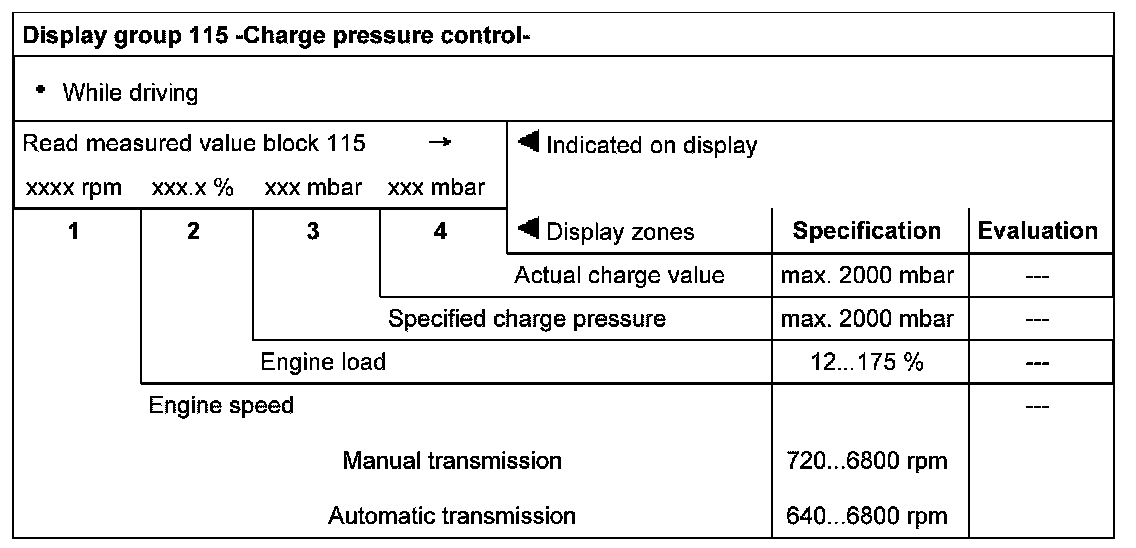

Display Group 115:

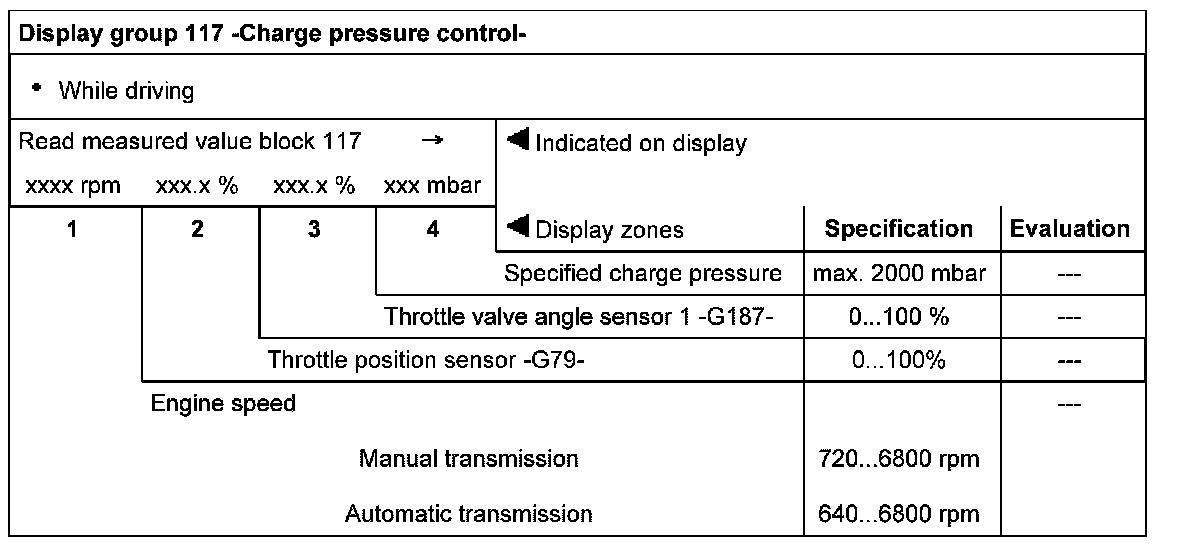

Display Group 117:

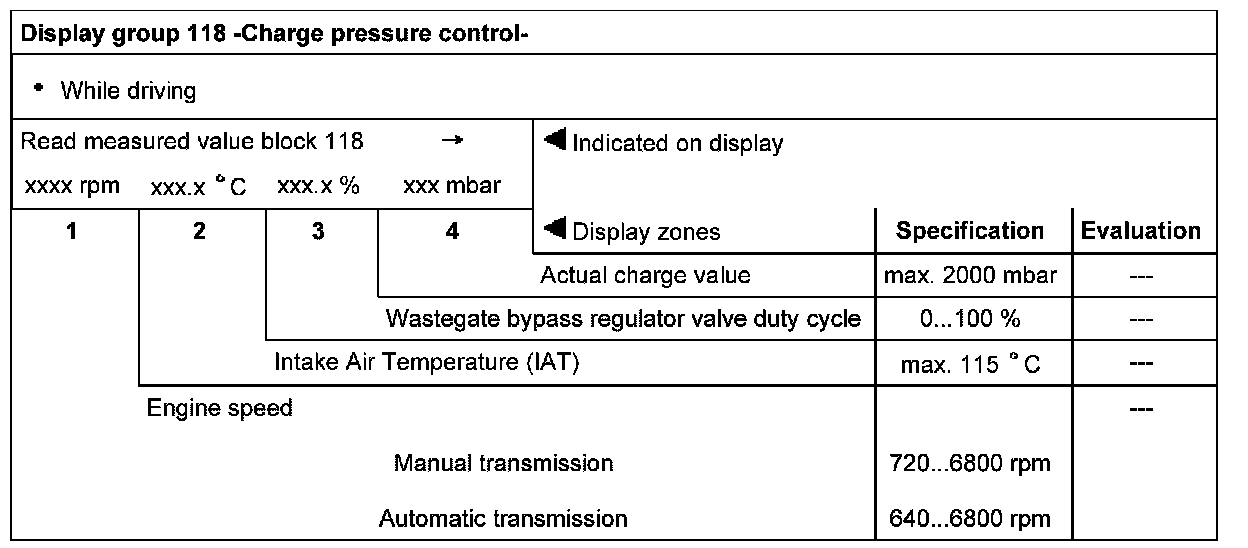

Display Group 118:

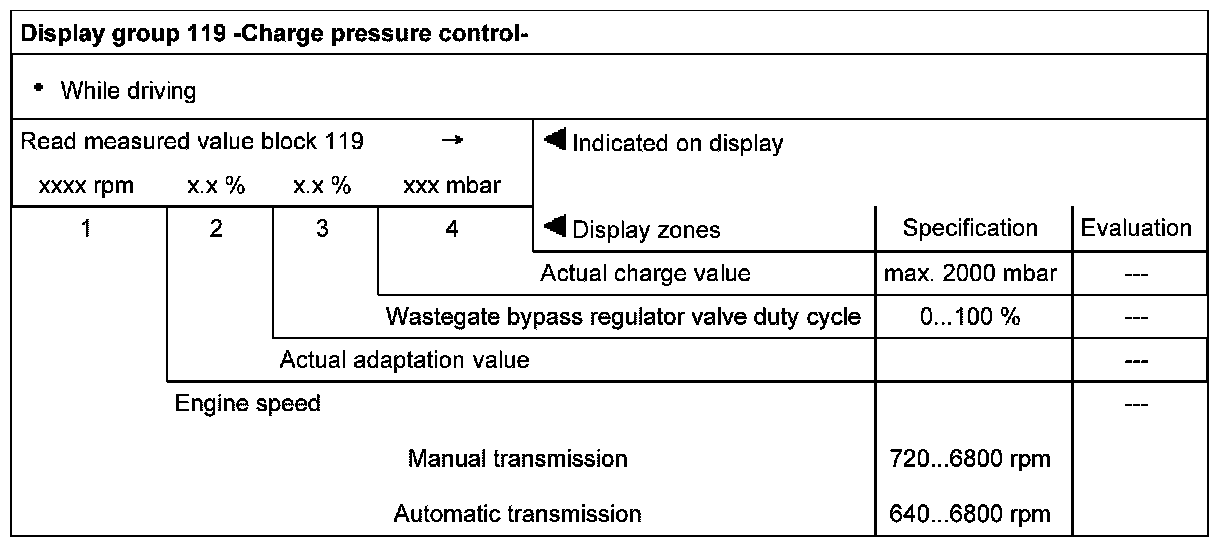

Display Group 119:
