Display Groups 10-29 (Ignition)

Measuring Value Block, Evaluating Display Groups 10...29 (Ignition)

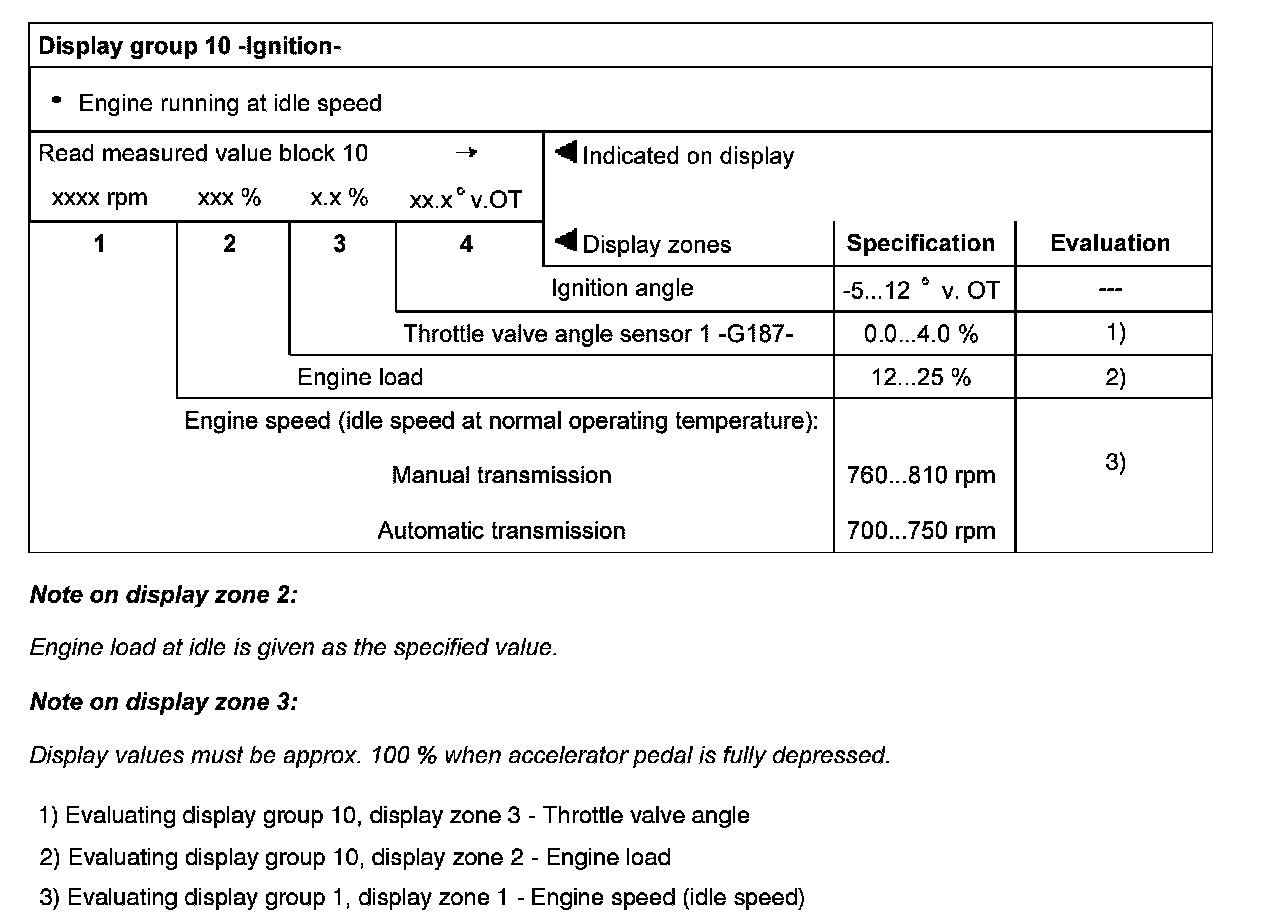

Display Group 10:

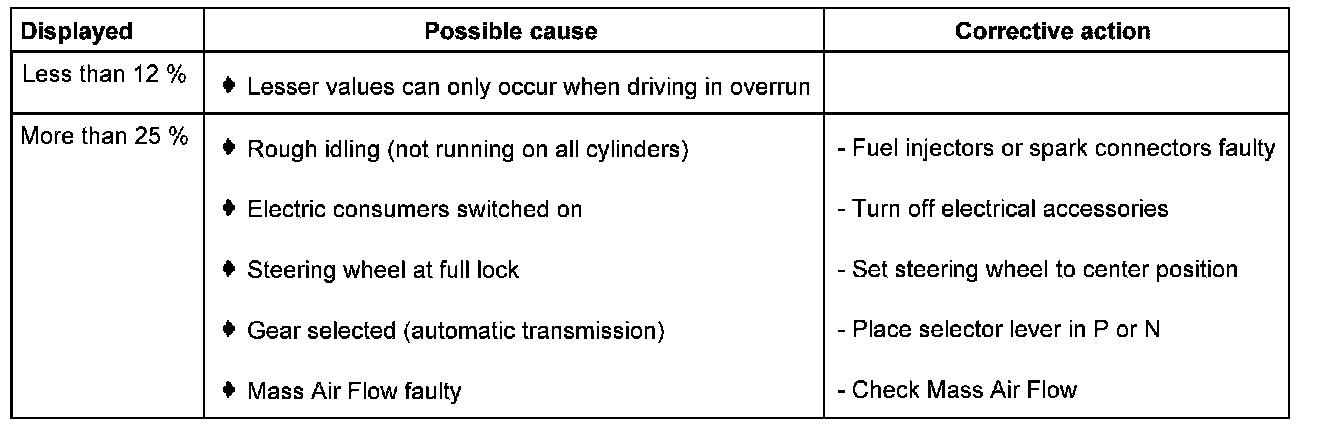

Evaluating display group 10, display zone 2 - Engine load

Evaluating display group 10, display zone 3 - Throttle valve angle

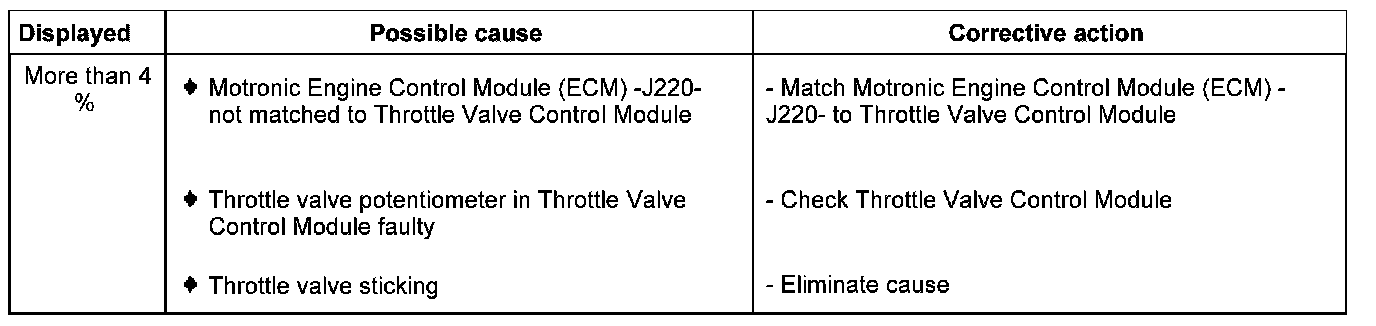

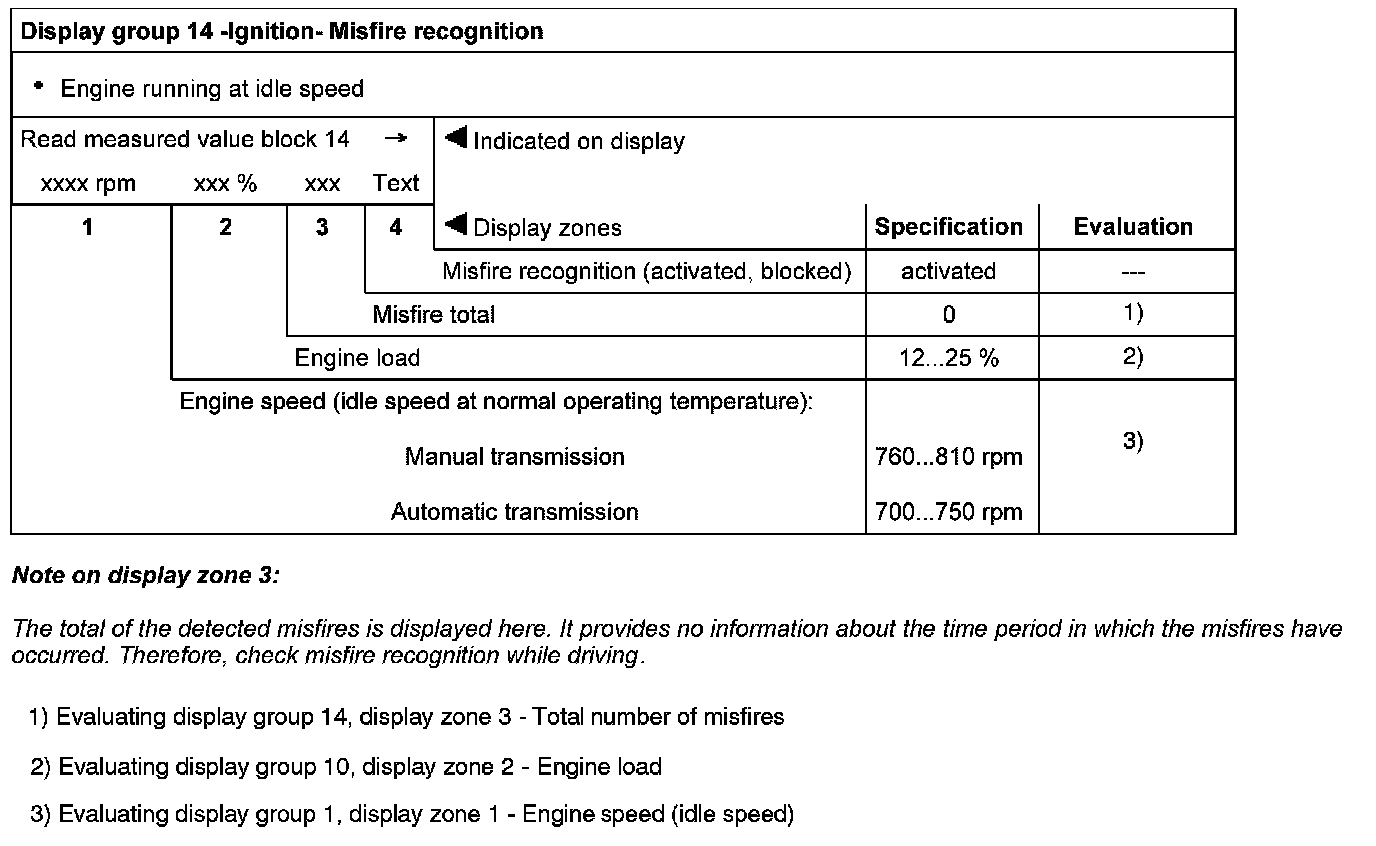

Display Group 14:

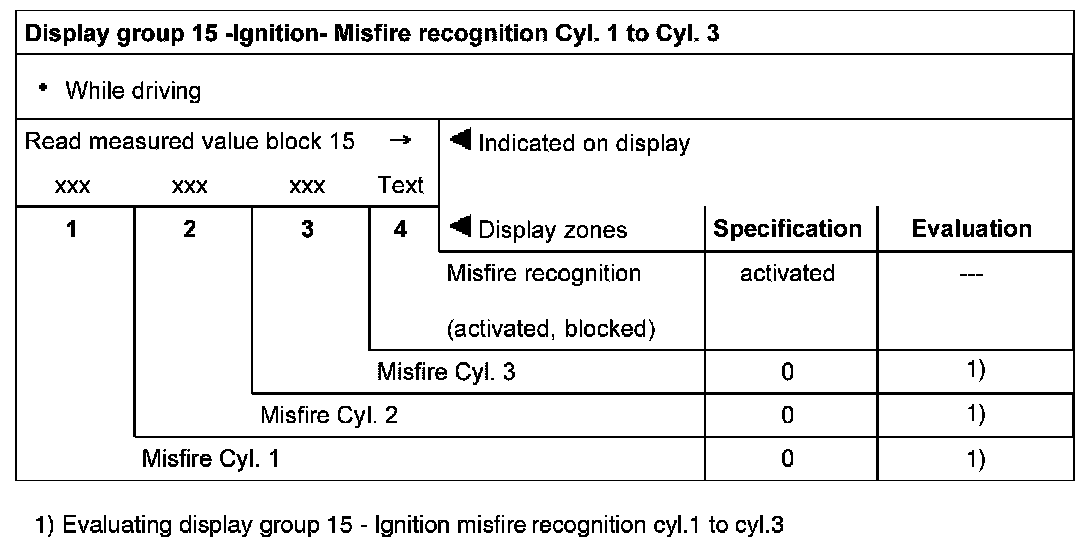

Display Group 15:

Display Group 16:

Evaluating display group 14, display zone 3 - Total number of misfires, display group 15 - Ignition misfire recognition cyl. 1 to cyl. 3, display group 16 - Ignition misfire recognition cyl. 4

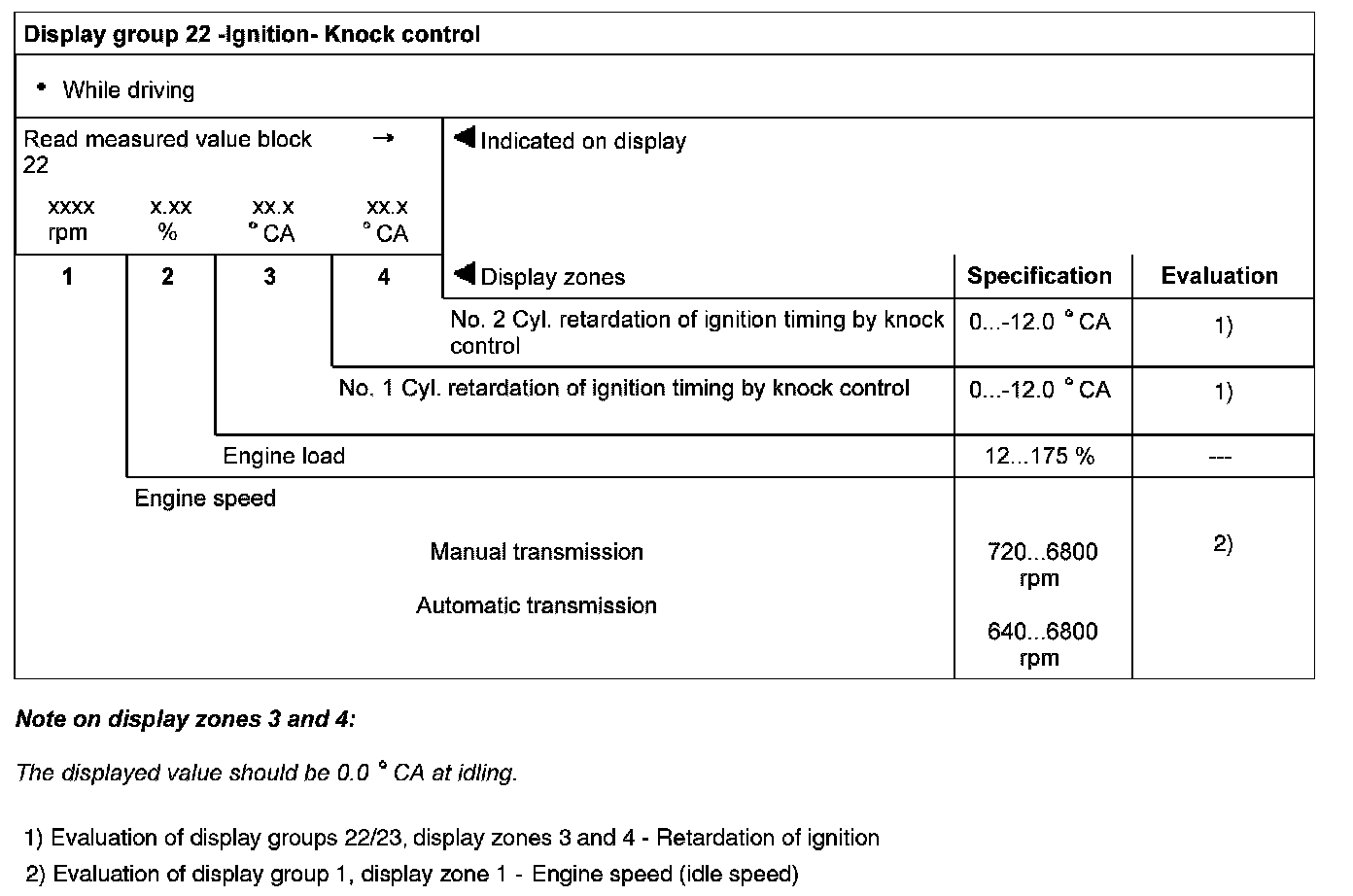

Display Group 22:

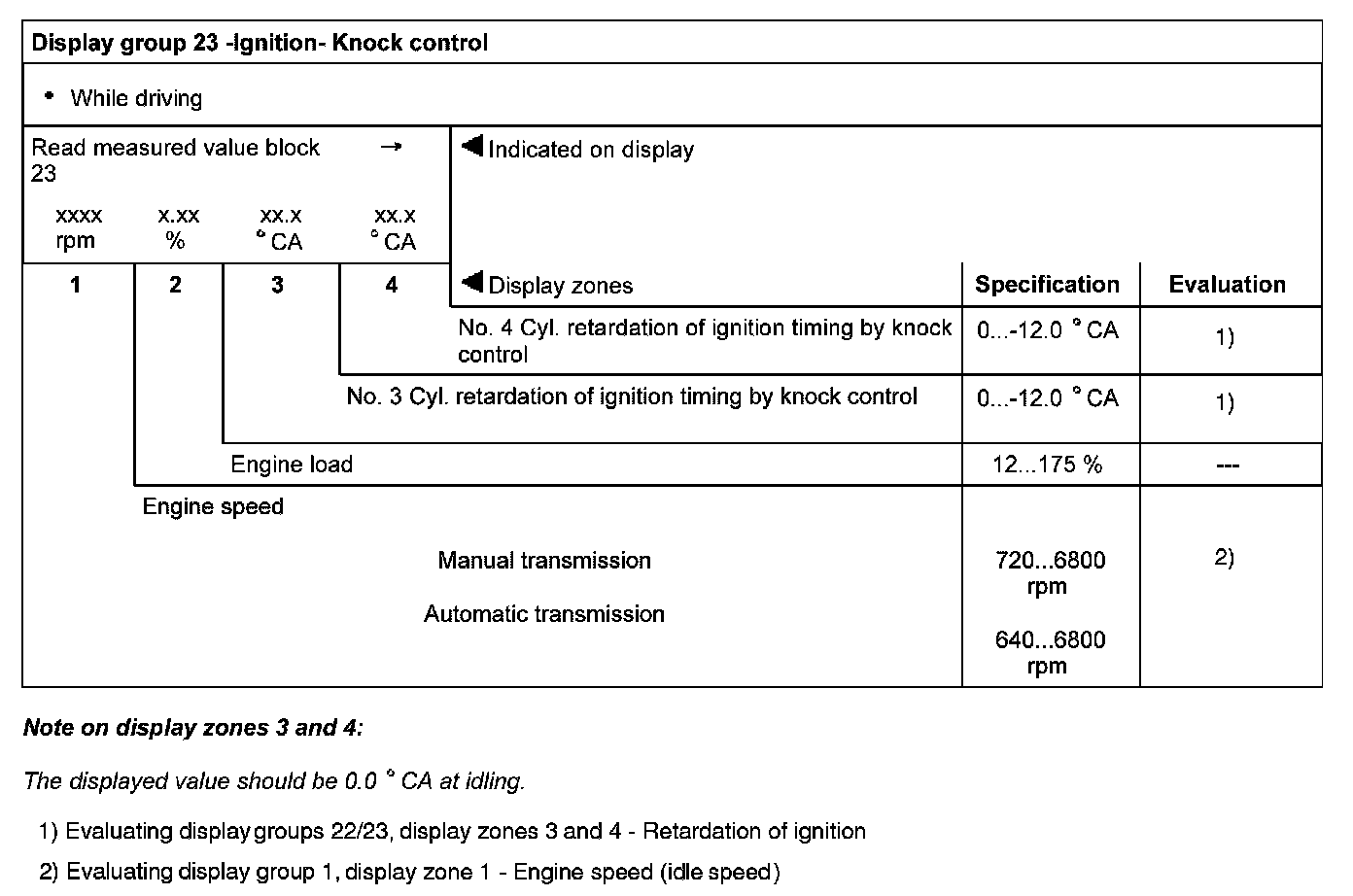

Display Group 23:

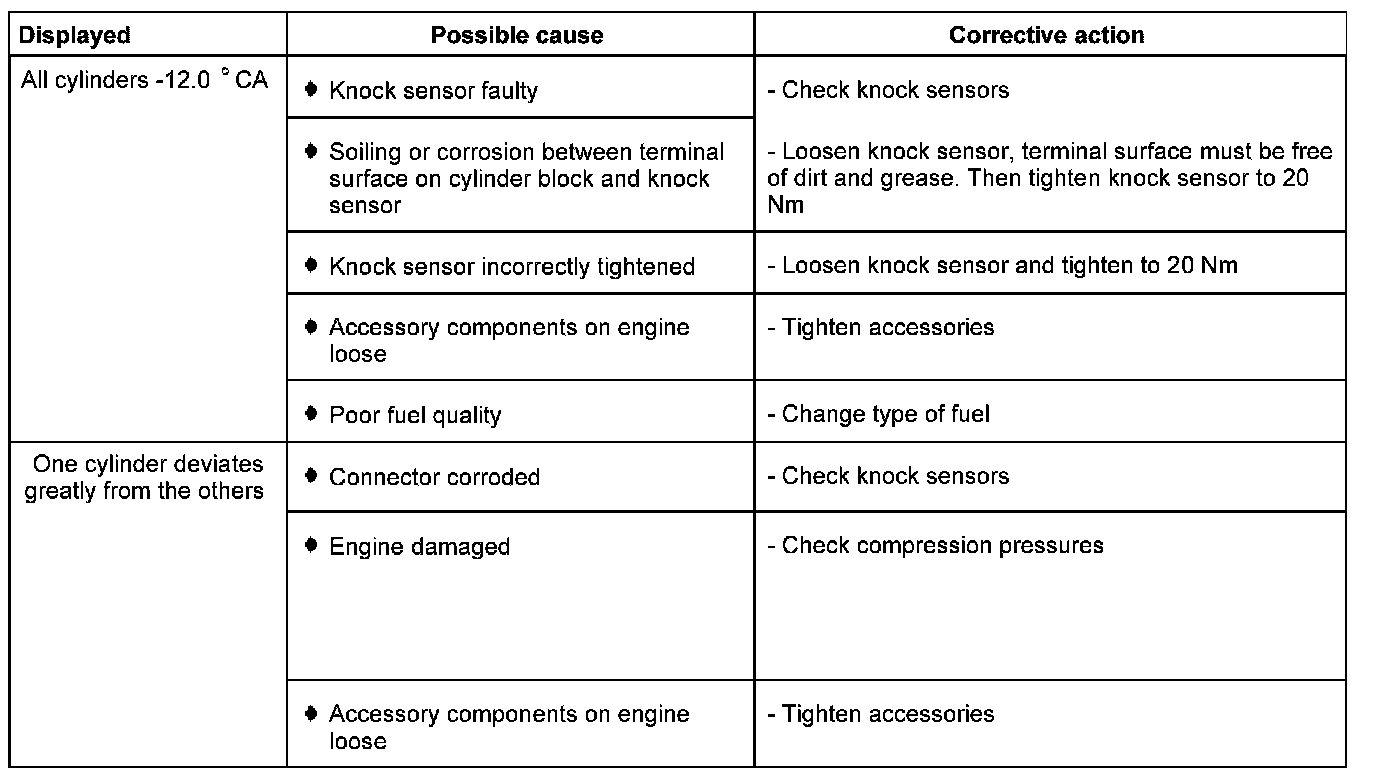

Evaluating display groups 22/23, display zones 3 and 4 - Retardation of ignition
