Display Groups 0-9 (Basic Functions)
Measuring Value Block, Evaluating Display Group 0 (Basic Functions)

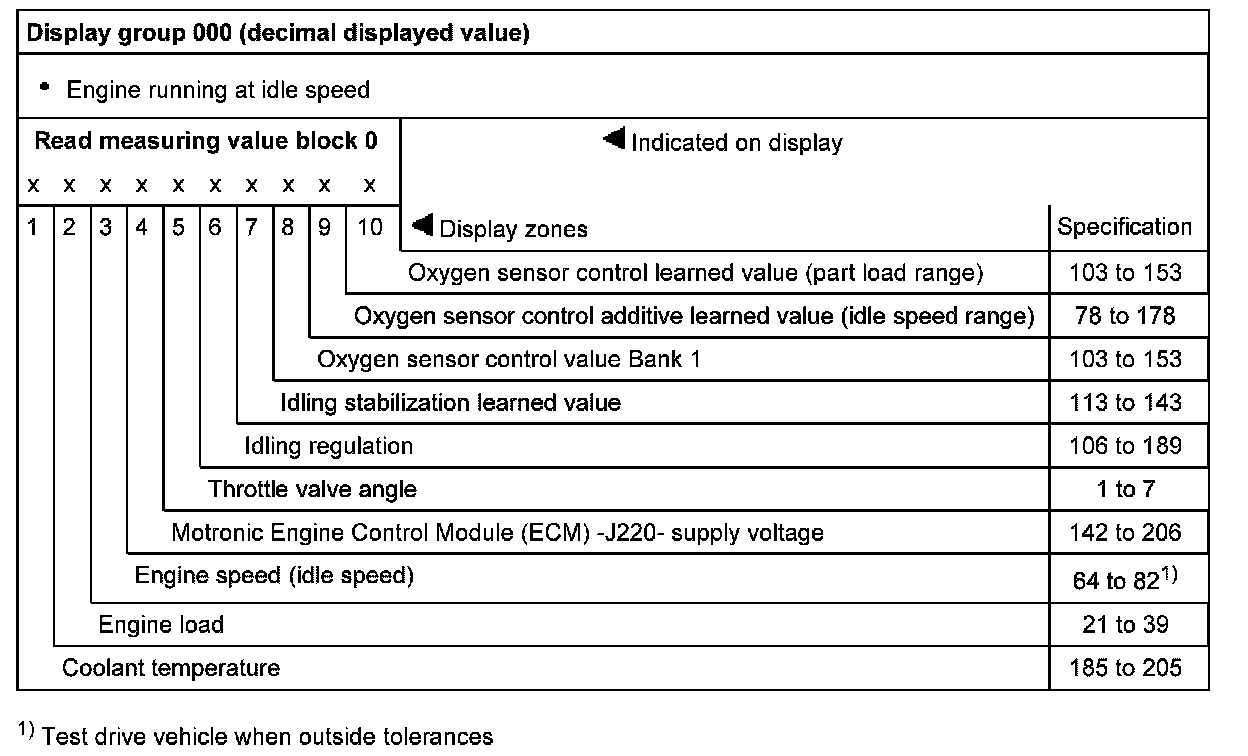

Display Group 000:
Evaluating display group 000
Display Zone 1:
Display Zone 2:
Display Zone 3:
Display Zone 4:
Display Zone 5:

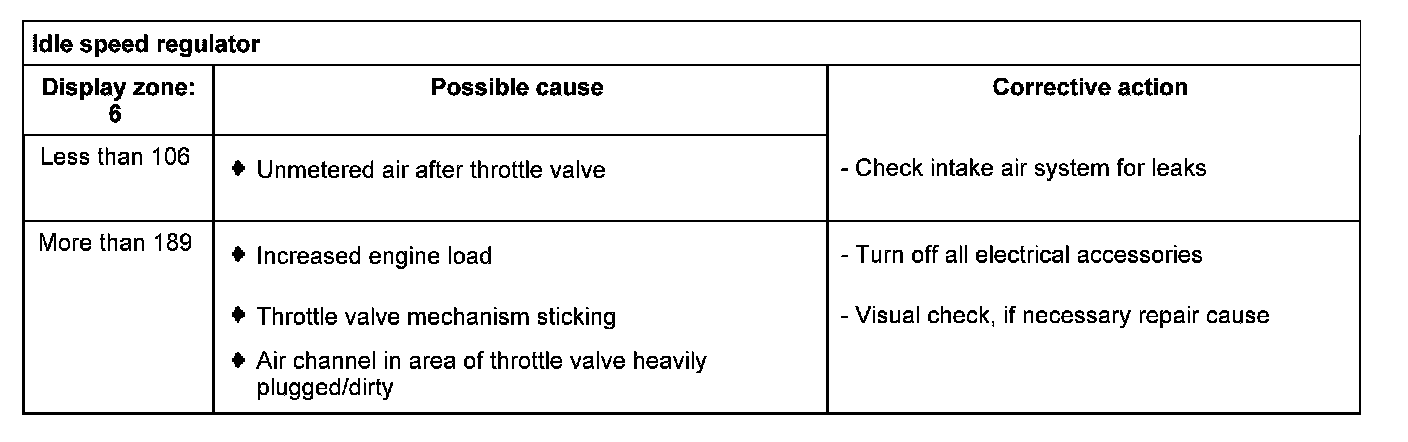

Display Zone 6:
Display Zone 7:
Display Zone 8:

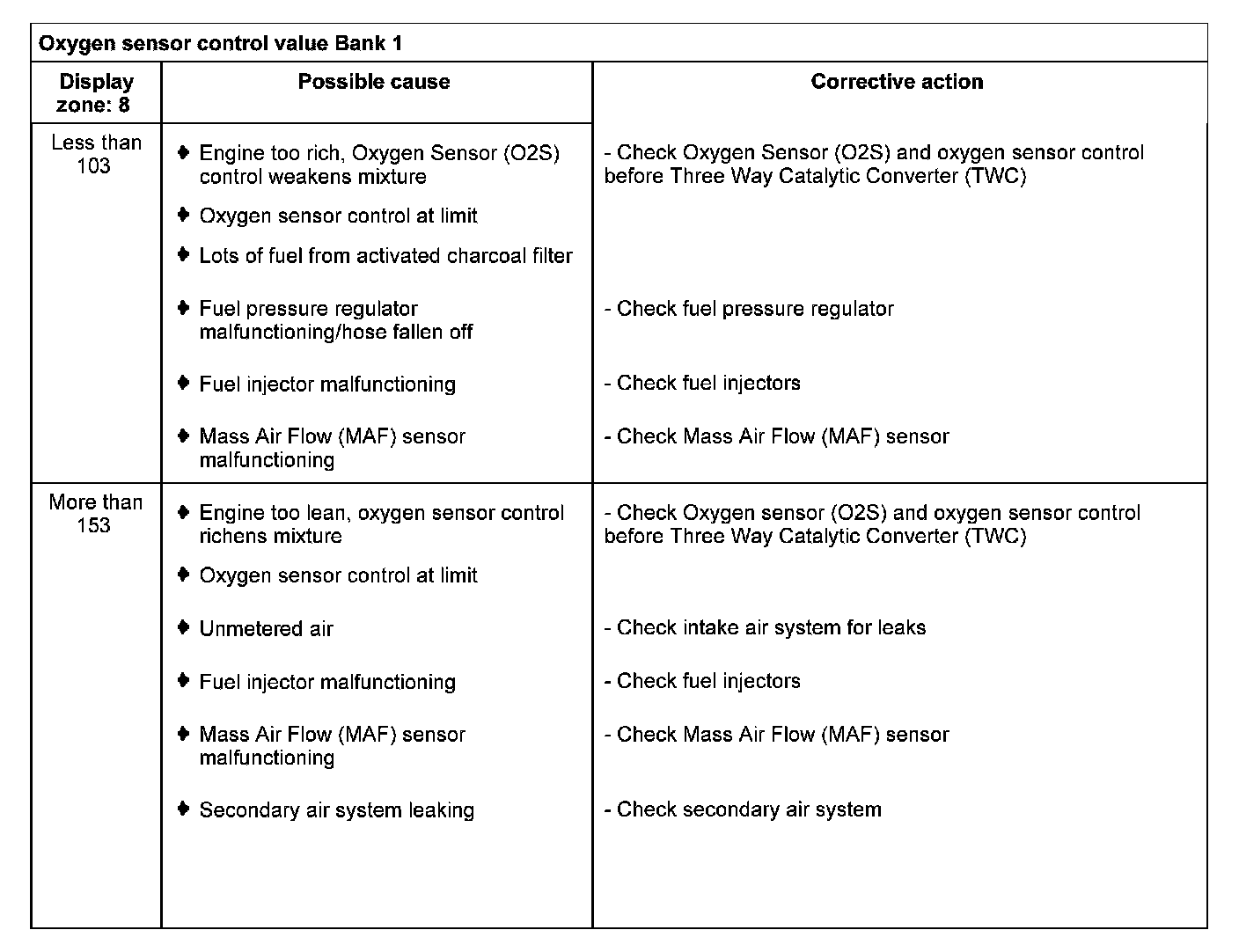

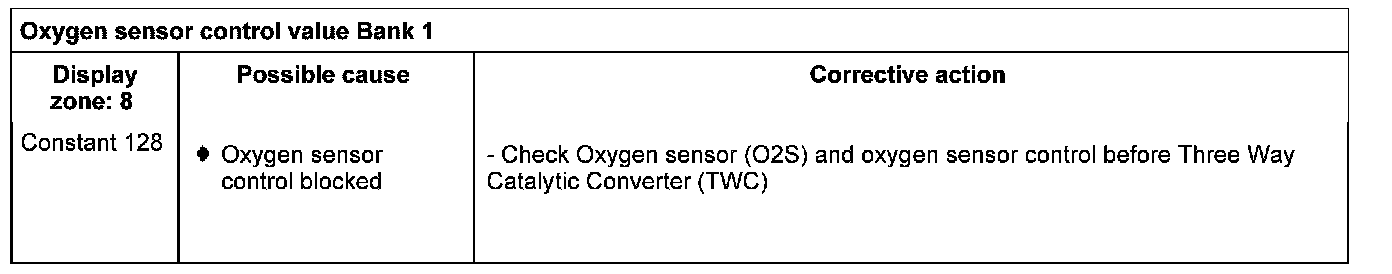

Display Zone 8:
Display Zone 9:

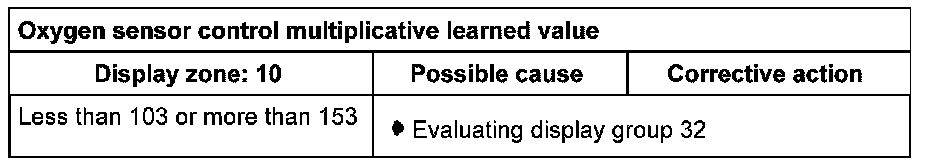

Display Zone 10:
Measuring Value Block, Evaluating Display Groups 1...9 (Basic Functions)

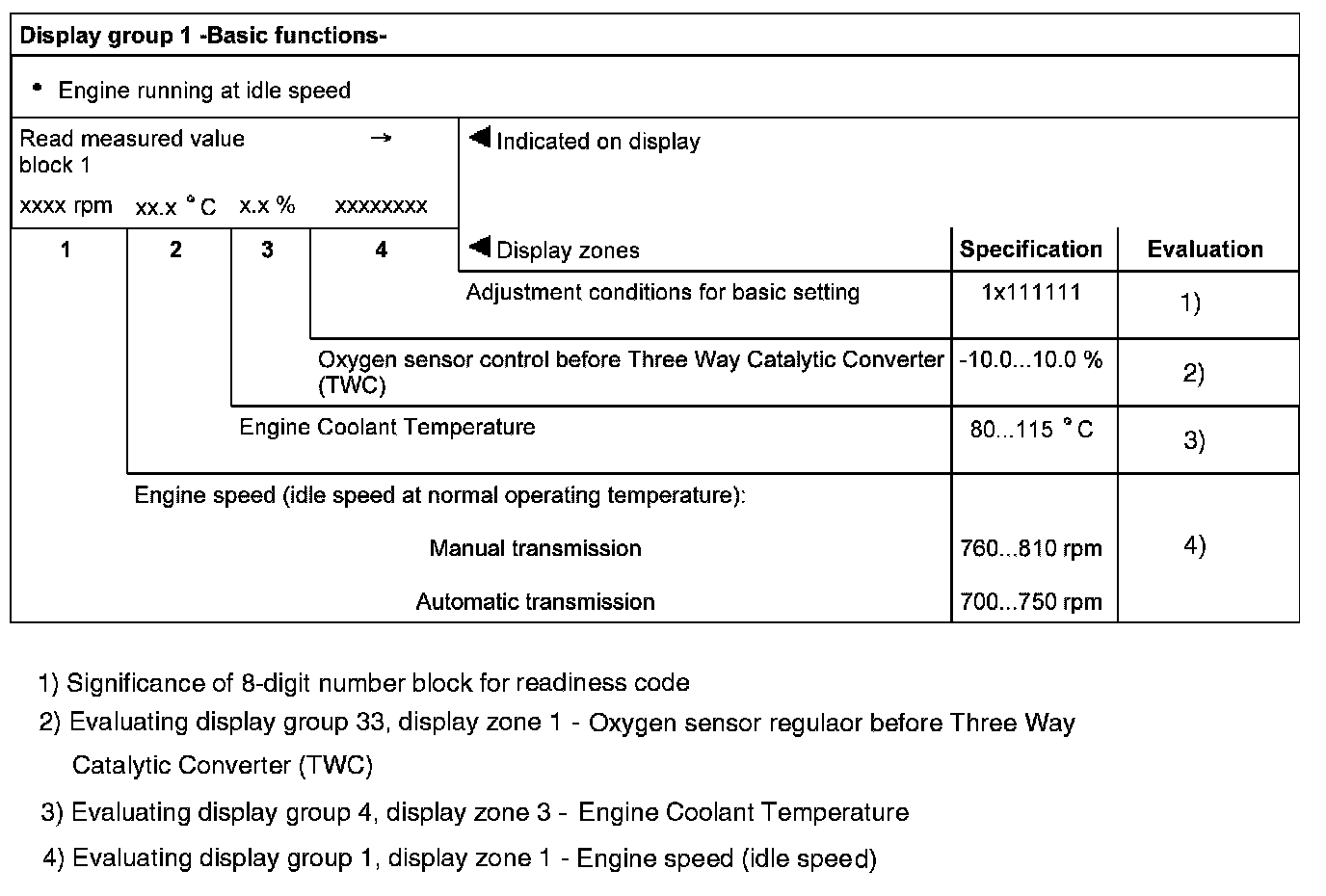

Display Group 1:

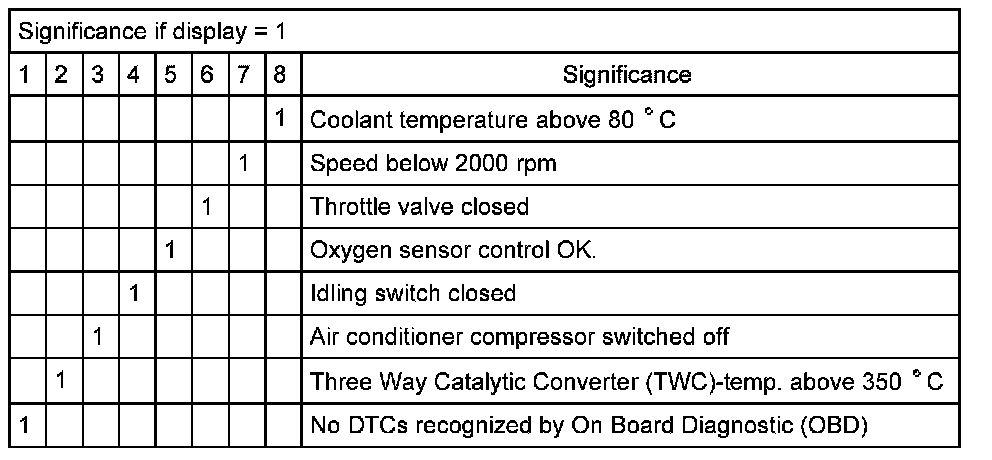

Significance of 8-digit number block for readiness code

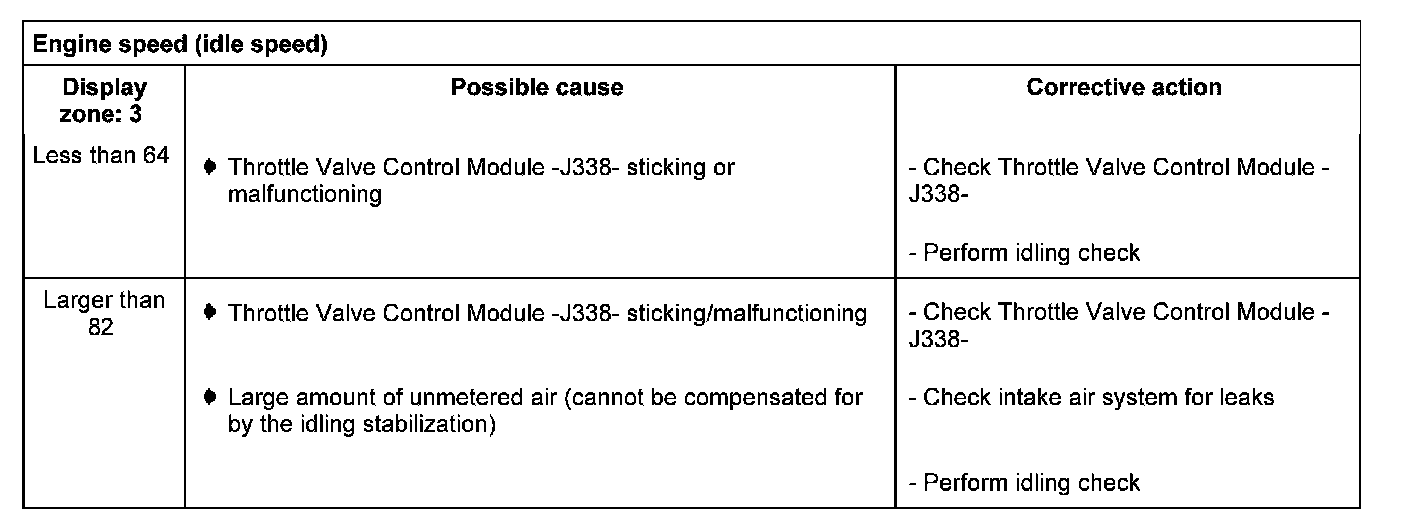

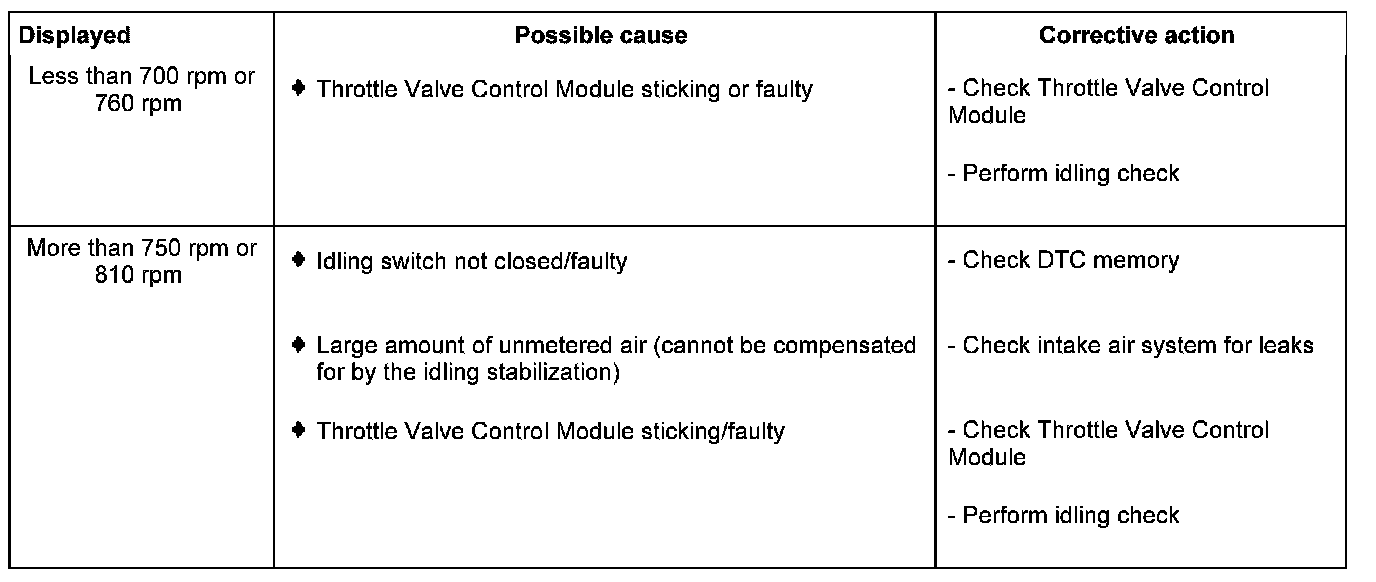

Evaluating display group 1, display zone 1 - Engine speed (idle speed)

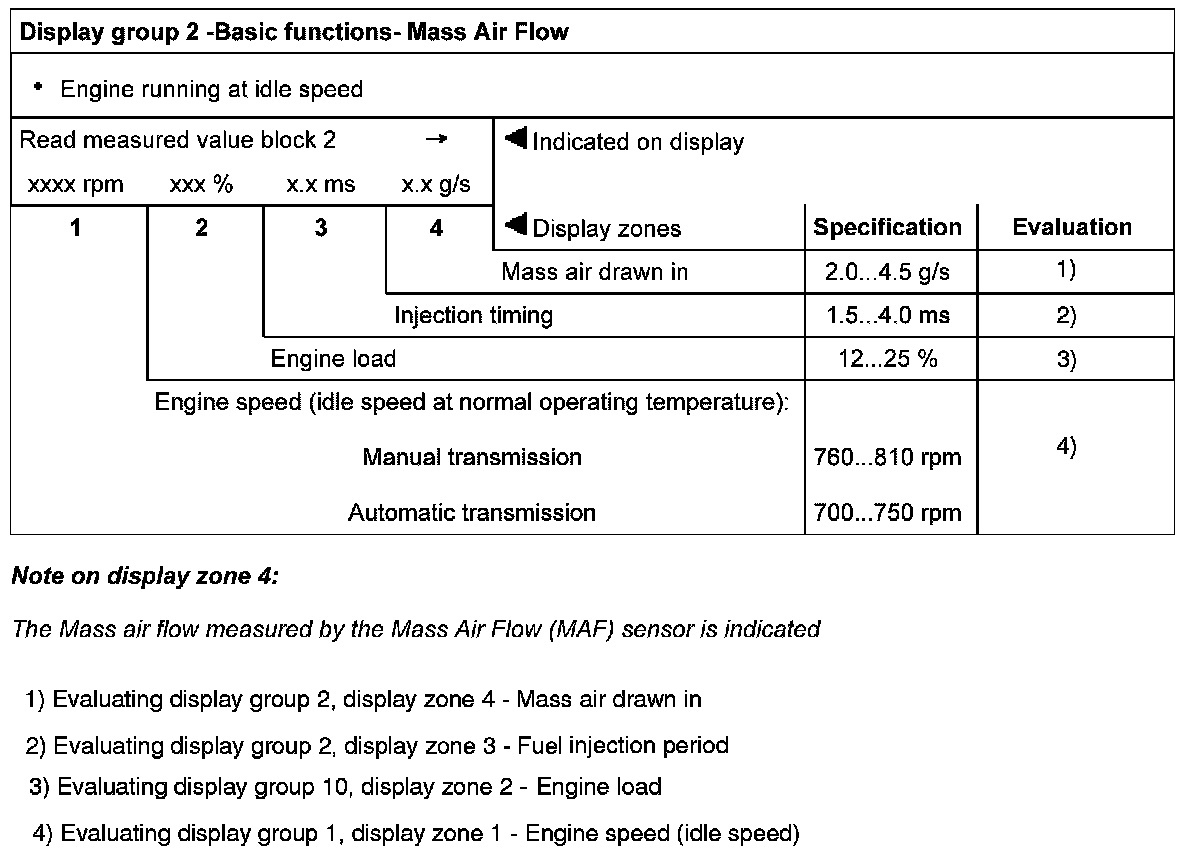

Display Group 2:

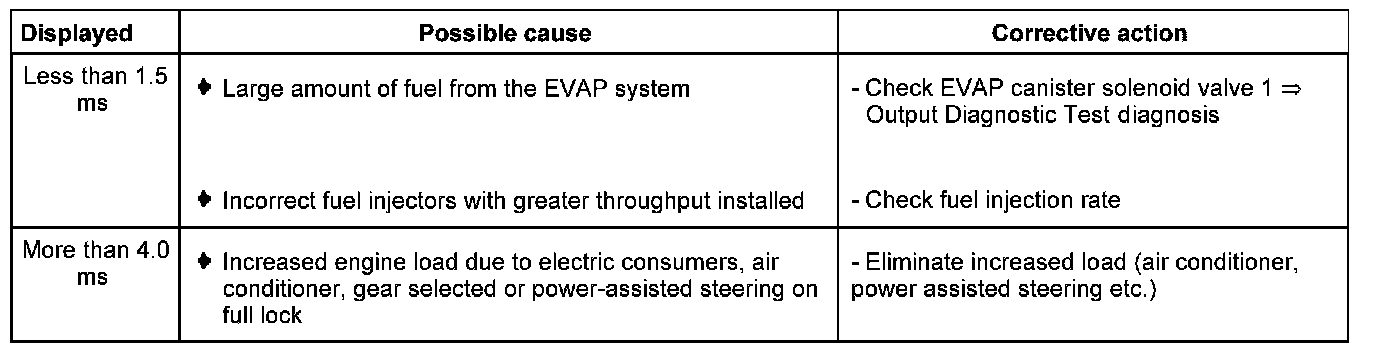

Evaluating display group 2, display zone 3 - Fuel injection period

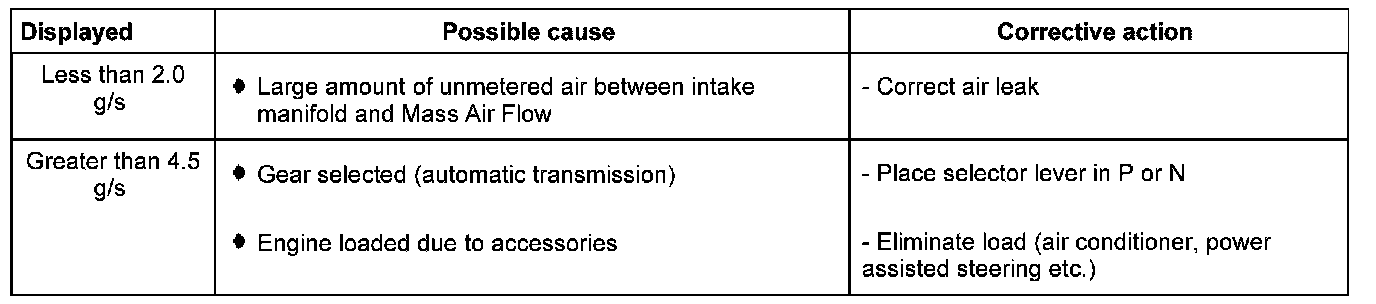

Evaluating display group 2, display zone 4 - Mass air drawn in

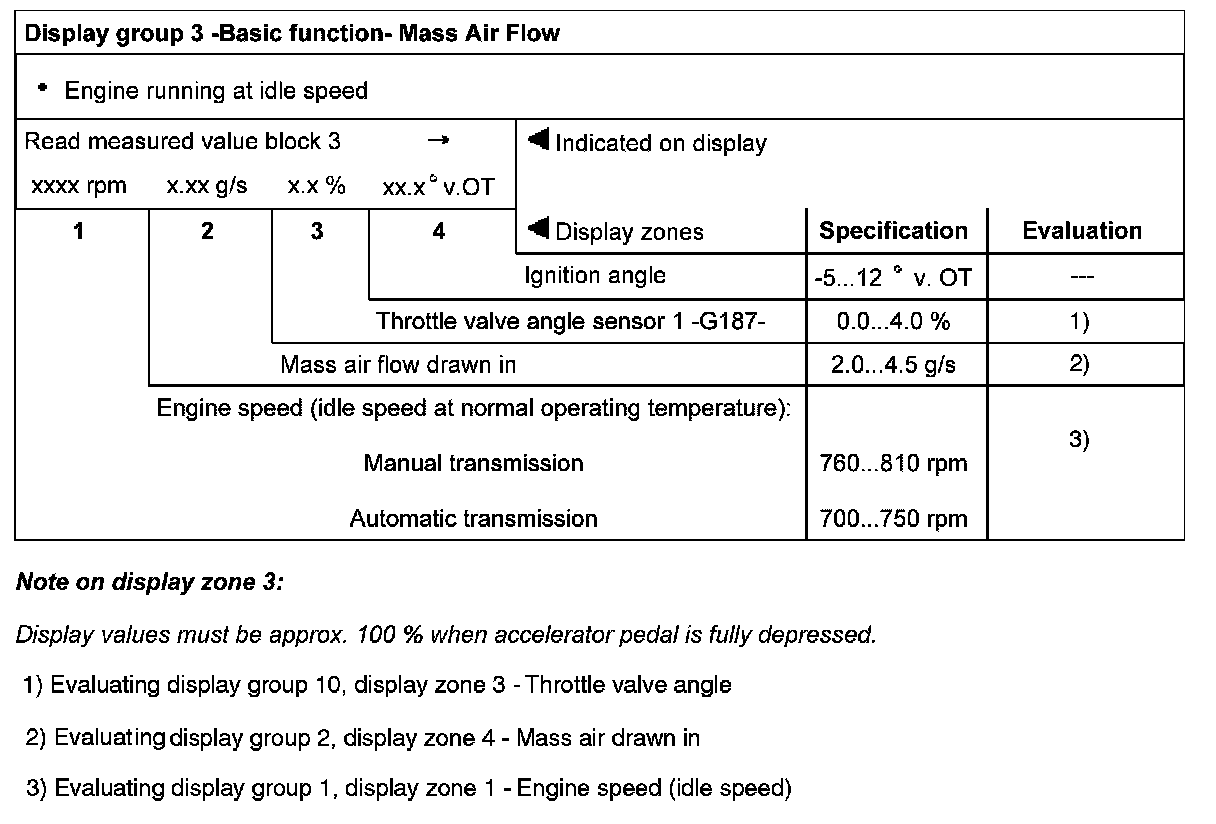

Display Group 3:

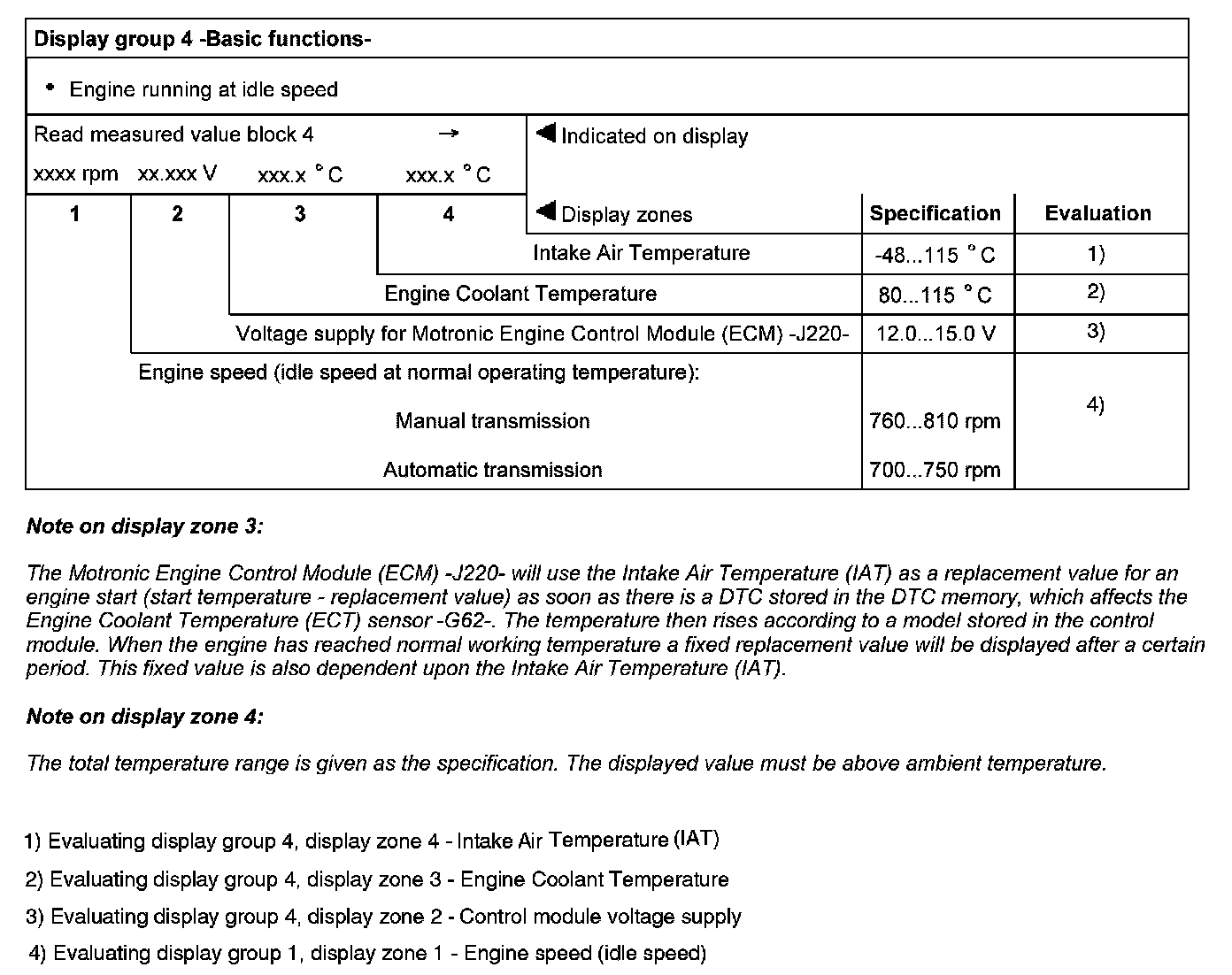

Display Group 4:

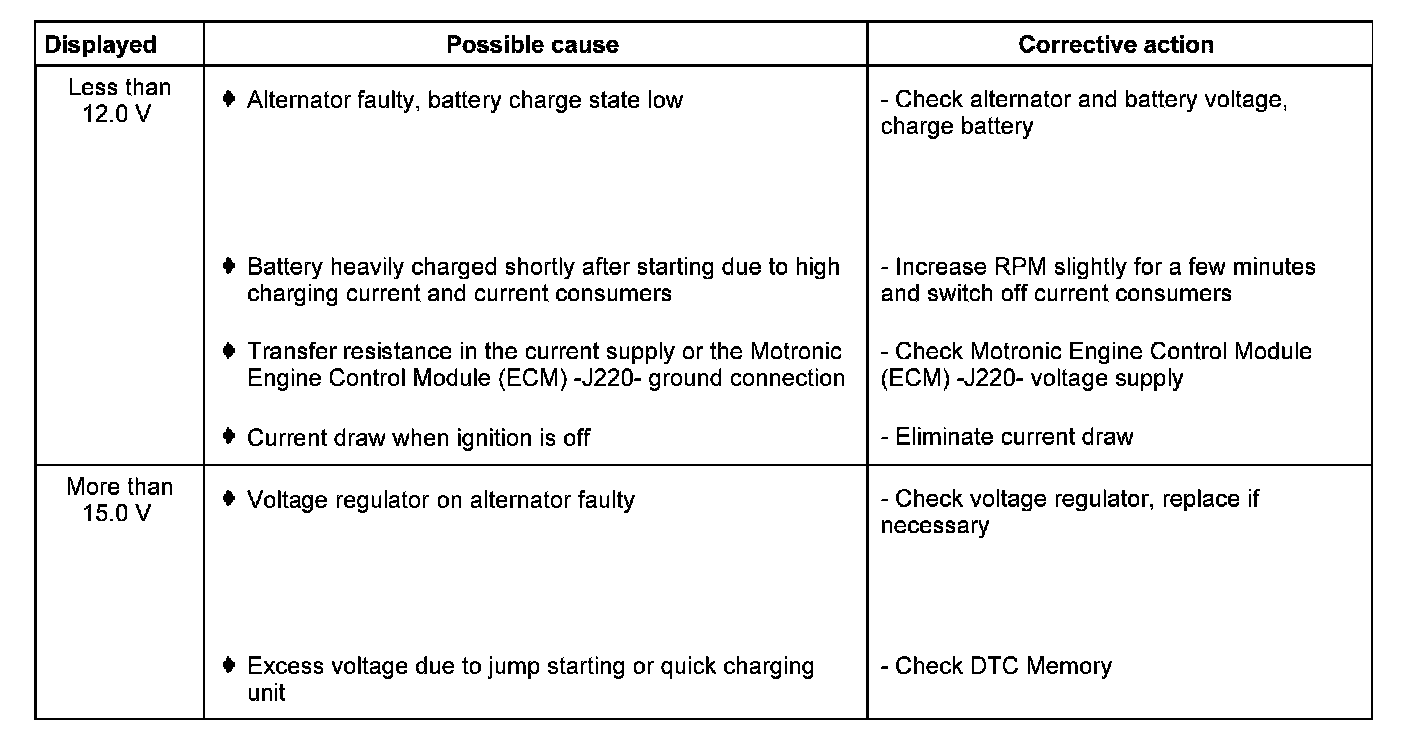

Evaluating display group 4, display zone 2 - Control module voltage supply

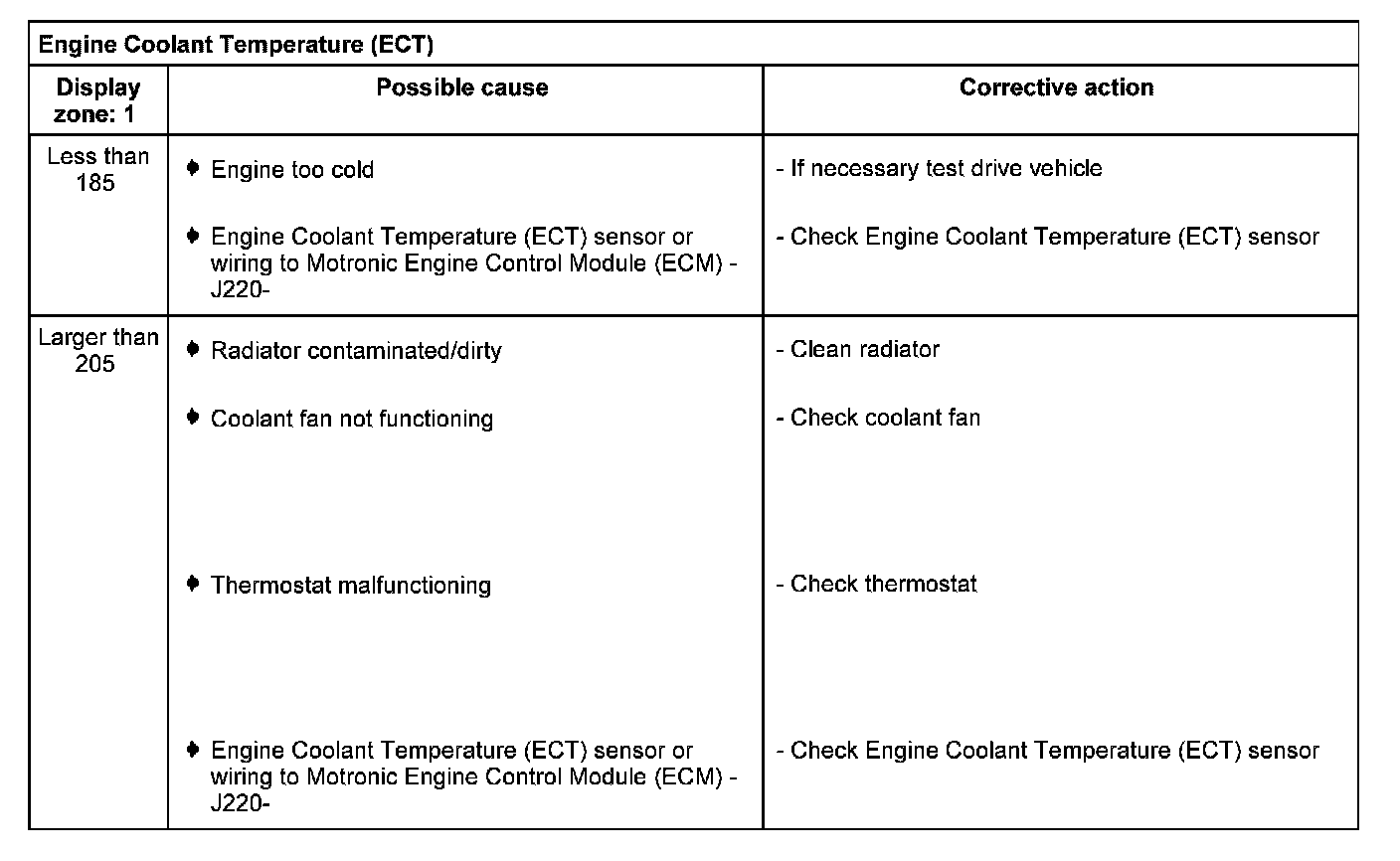

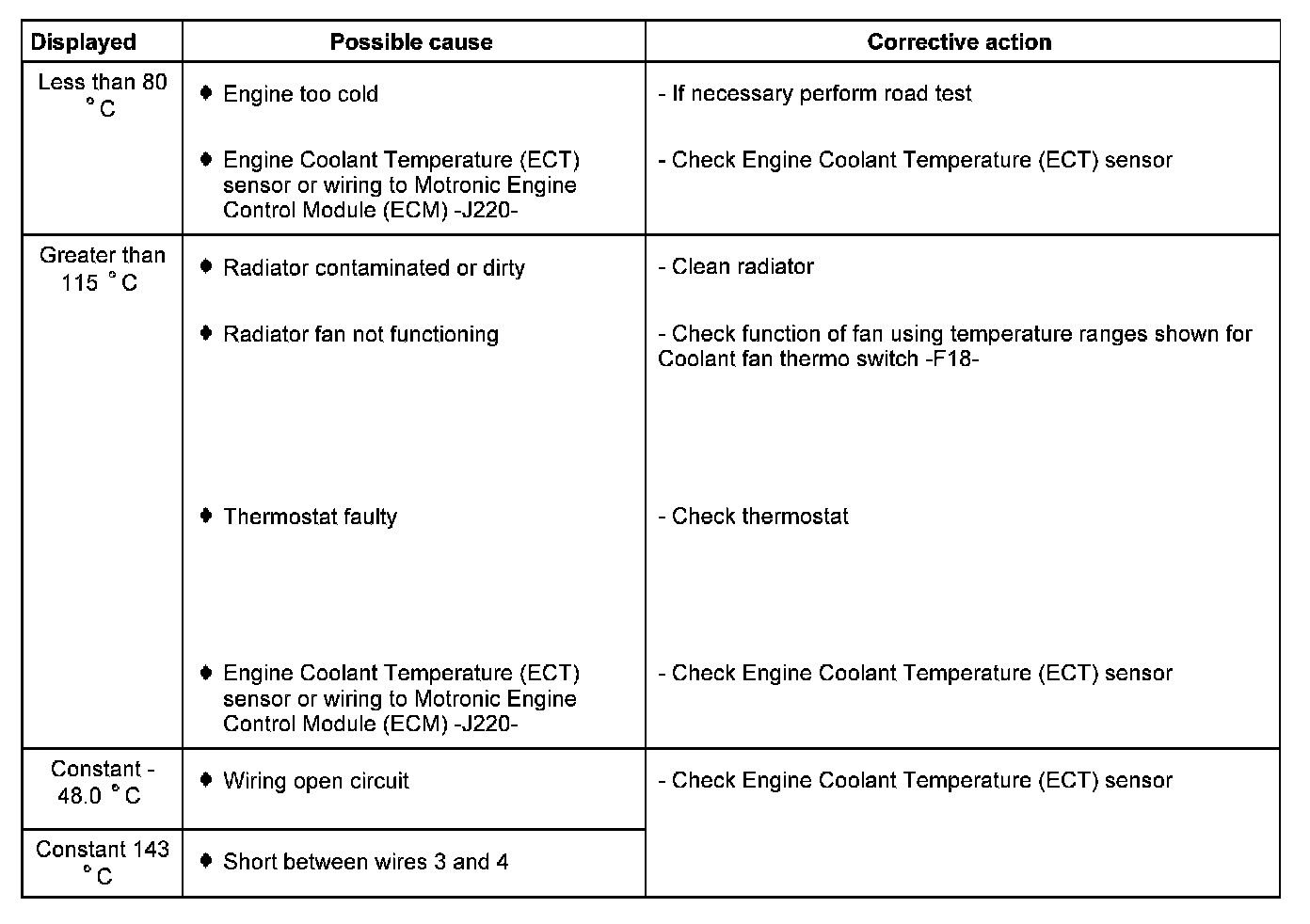

Evaluating display group 4, display zone 3 - Engine Coolant Temperature

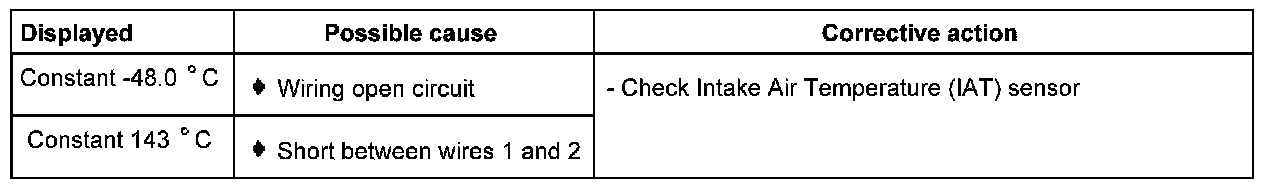

Evaluating display group 4, display zone 4 - Intake Air Temperature (IAT)

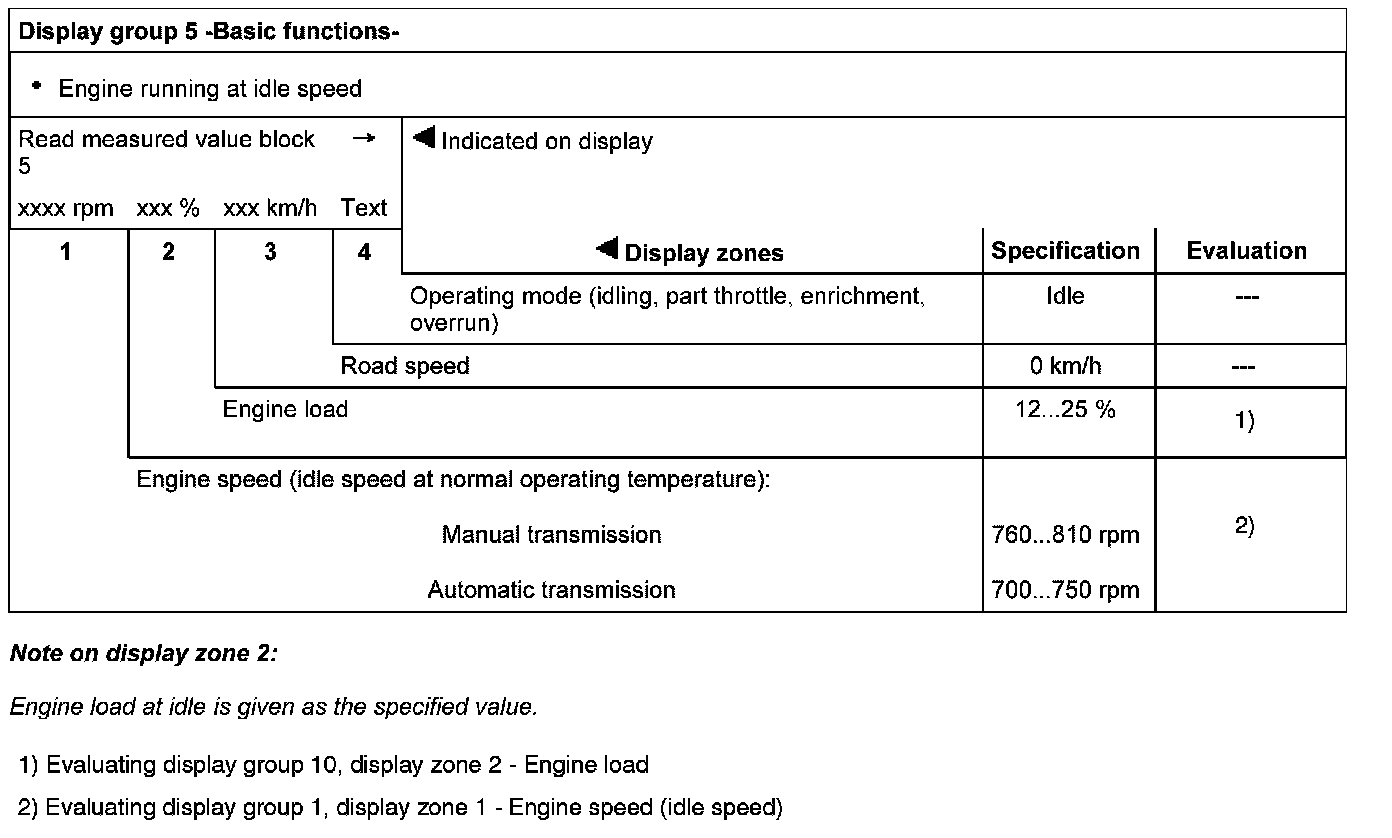

Display Group 5:

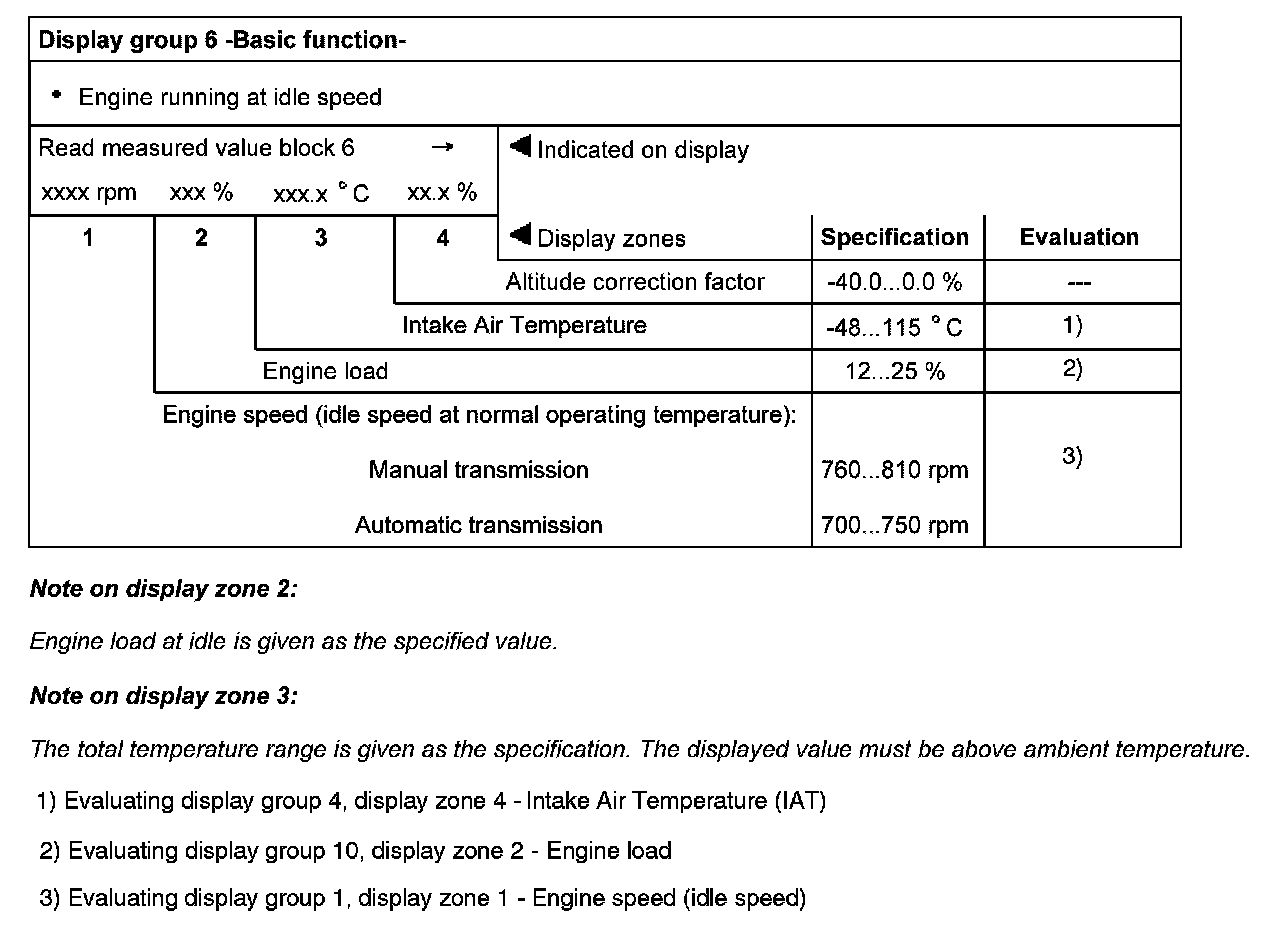

Display Group 6:
Only engine code AWV with automatic transmission:
Display Group 8:
