5 Speed Manual 02J

5 Speed Manual 02J

Checking Transmission Oil

- Remove sound insulation tray below engine/transmission, if installed.

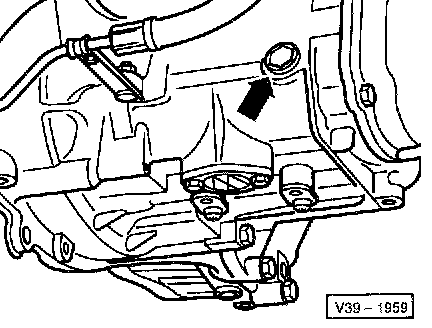

- Remove plug (arrow) to check oil
The oil level is correct when the transmission is full to the lower edge of the filler hole.
- Top up gear oil if necessary and reinstall plug (arrow).

When filling with new oil note following:
- Remove plug (arrow).
- Top up oil to lower edge of filler hole.
- Install plug (arrow).
- Start engine, engage gear and allow transmission to turn for approx. 2 minutes.
- Switch off engine and remove plug (arrow).
- Top up oil to lower edge of filler hole again.
- Install plug (arrow).
