Oil Filter: Service and Repair
Engine oil, draining or extracting; changing oil filter and filling engine oil
Warning!
On engines with standing oil filter module, the oil filter should be changed before the oil change.Removing the filter element will open a valve and oil in the filter housing will flow automatically into the crankshaft housing.
The oil drain plug is equipped with a permanent seal, therefore the oil drain plug must always be replaced.
Special tools, testers and auxiliary items required

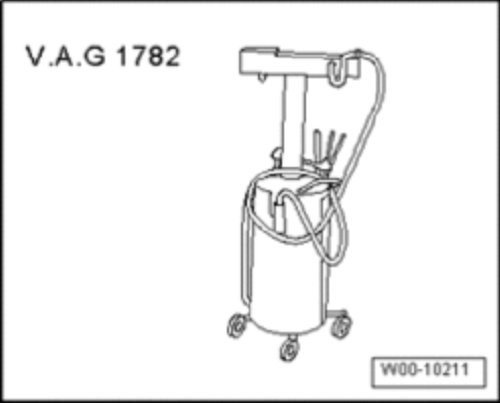

- Oil extractor V.A.G 1782
- Oil absorbent towel VAS 6204/1
Engine oil, draining or extracting
Perform the following work procedure:
- Extract engine oil using old oil collecting and extracting unit V.A.G 1782.
or
- Remove oil drain plug
- Drain engine oil.
- Screw in new oil drain plug with sealing ring hand-tight.
- Fill motor oil.
Engine oil capacities, refer to Fluid Capacity Charts for appropriate model and year.
Torque specifications for oil drain plug:
- The torque specifications are dependent on engine code
Warning!
Torque settings must not be exceeded
A torque figure that is too high may lead to leaks or even damage the oil pan.
Replacing oil filter, 1.8 L-, 2.0 L fuel injection engines
Special tools, testers and auxiliary items required

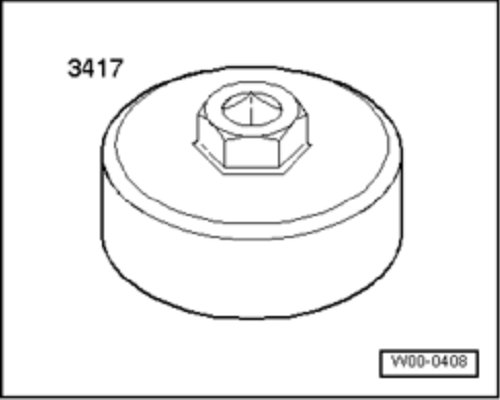

- Oil filter wrench VAS 3417

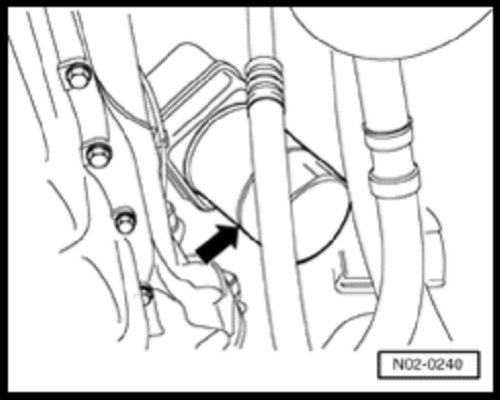

- Loosen oil filter -arrow- from below using tension strap or oil filter wrench VAS 3417 as an aid.
Note: Observe waste disposal regulations!
- Clean sealing surface on oil cooler.
- Lightly oil rubber gasket on new filter. This achieves the best possible seal when tightening the filter.
- Tighten filter by hand.
Replacing oil filter, TDI - Diesel engines:
Special tools, testers and auxiliary items required
- Oil filter wrench VAS 3417

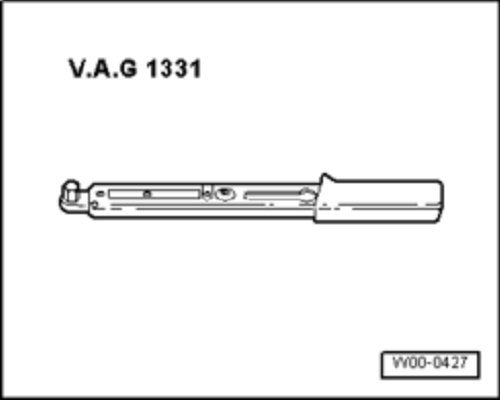

- Torque wrench V.A.G 1331

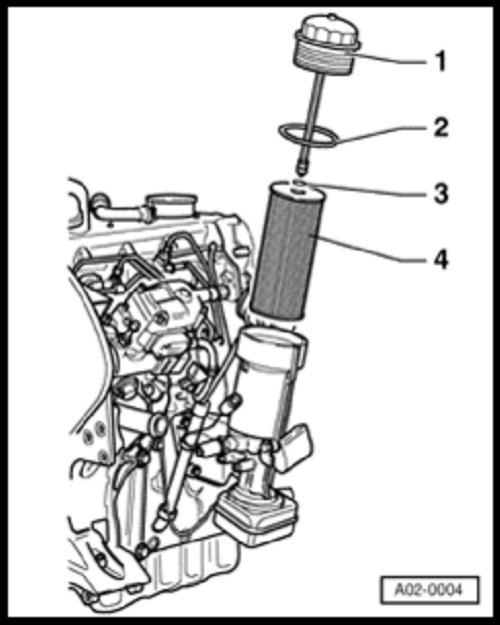

- Loosen sealing cap -1- using oil filter wrench 3417.
- Replace O-rings -2- and -3- as well as oil filter element -4-.
Note: Observe waste disposal regulations!
- Tighten sealing cap -1- using oil filter wrench 3417.
- Tightening torque of sealing cap: 25 Nm
Replacing oil filter, 2.5L fuel injection engines
Special tools, testers and auxiliary items required
- Oil drain adapter T40057
- Oil filter wrench VAS 3417
- Torque wrench V.A.G 1331/ Needle-nose pliers
Oil filter housing, emptying
Warning!
Oil filter housing must be drained before it is removed.
Note: When screwing in oil drain adapter T40057 , a valve in the oil filter housing is opened. If oil drain adapter T40057 is unscrewed again, the valve closes automatically again.

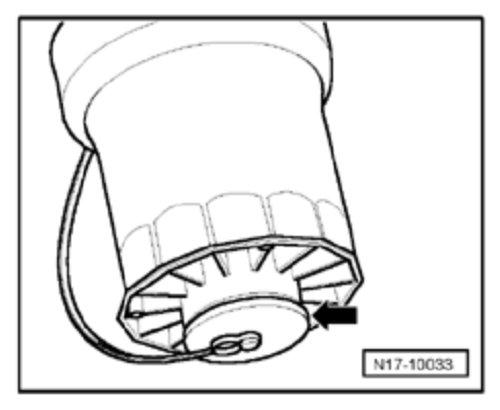

- Unscrew dust cap -arrow- from oil filter housing.

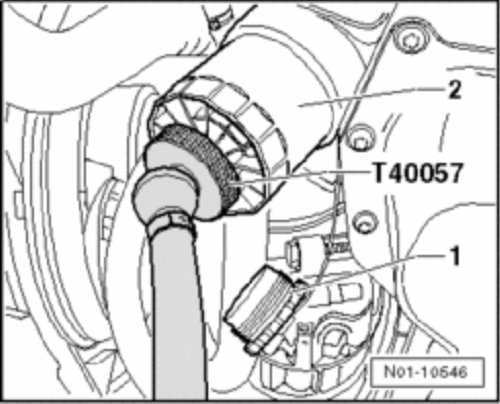

- Screw oil drain adapter T40057 into oil filter housing and hold hose into an oil collecting pan.
- Allow engine oil to drain.
- Unscrew oil drain adapter T40057 again.

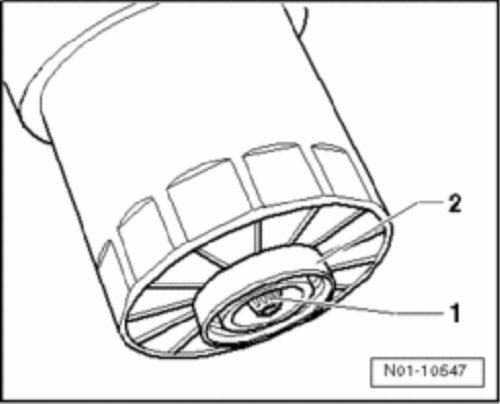

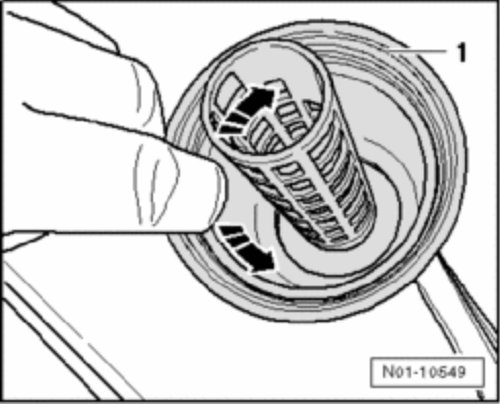

The drain valve -1- should seal flush with the under side of the oil filter housing -2-.
Oil filter insert, removing
- Oil filter housing can now be removed using Oil Filter Wrench VAS 3417.
- Then unscrew by hand and remove together with oil filter insert.

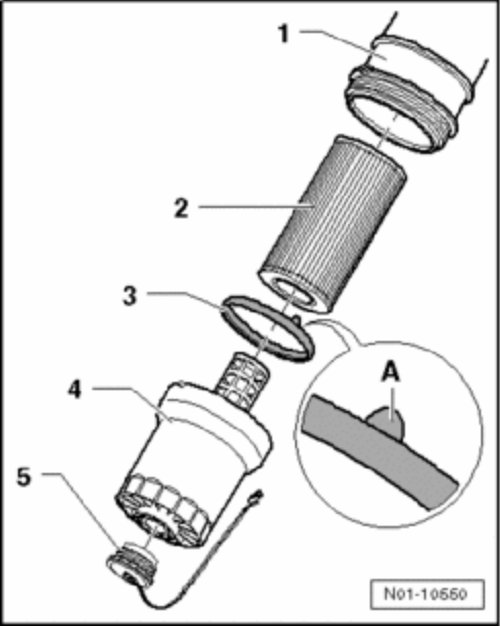

- Remove oil filter insert -2- from oil filter housing center tube -4-.
Sealing ring, removing
Warning!
The oil filter housing sealing ring -3- must be replaced each time the oil filter insert is changed -2- or every other time the oil filter housing is loosened.
The sealing ring is equipped with a so-called "service flag" -A-.
The sealing ring can be gripped at the "service flag" -A- with a suitable tool and then removed from the seal groove.

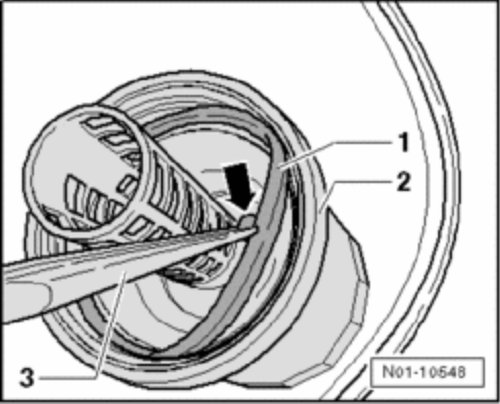

- Remove sealing ring -1- from oil filter housing seal groove -2- by pulling sealing ring out with needle-nose pliers -3- on the "service flag" -arrow-.
Sealing ring, installing
- Lubricate sealing ring -3-.
- Lay sealing ring in oil filter housing seal groove so service flag -A- is aligned toward top.
- Press sealing ring into seal groove and check whether ring contacts entire groove evenly by feeling above sealing ring with finger -arrows-.
Oil filter insert, installing
- Press new oil filter insert -2- onto oil filter housing center tube -4- as far as stop.
Oil filter housing, installing
- Install oil filter housing -4- with new sealing ring -3- and new oil filter insert -2- by hand until almost on oil filter housing stop -1-.
- Tighten oil filter housing -2- to 25 Nm.
- Install dust cap -arrow- hand-tight in oil filter housing.
Replacing oil filter (Diesel engines)
Removing
Note: Observe waste disposal regulations! Oil new O-rings before installation.

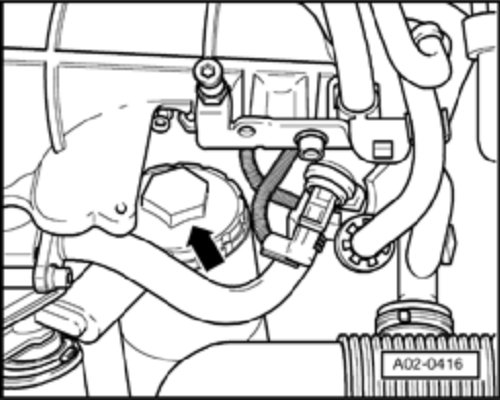

- Loosen sealing cap -arrow- e.g. using ring wrench AF 36 or using socket insert AF 36 T10125.
Note: Loosen cap before draining/extracting so that engine oil can flow out of filter housing.
- Clean sealing surfaces at cap and at oil filter housing.
Installing

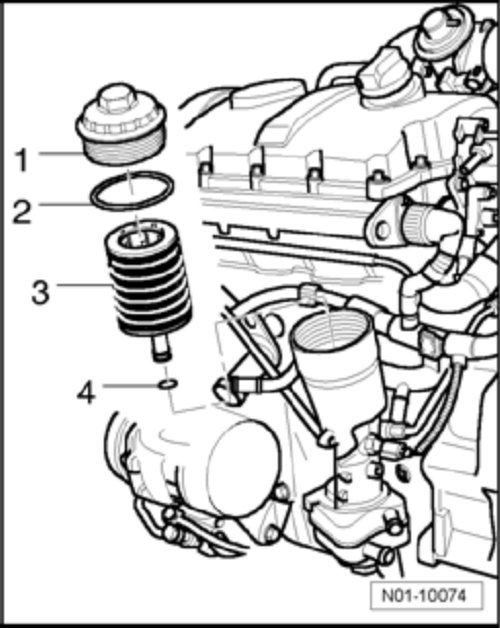

- Install oil filter -3-
- Replace O-rings -2 and 4-.
- Install screw cap -arrow- and tighten to 25 Nm.
Installation is reverse of removal.
