Vanity Lamp: Service and Repair

Make-up mirror light, removing and installing


NOTE: The procedures for removing left make-up-mirror light -W20- and right make-up mirror light -W14- are identical.


Removing

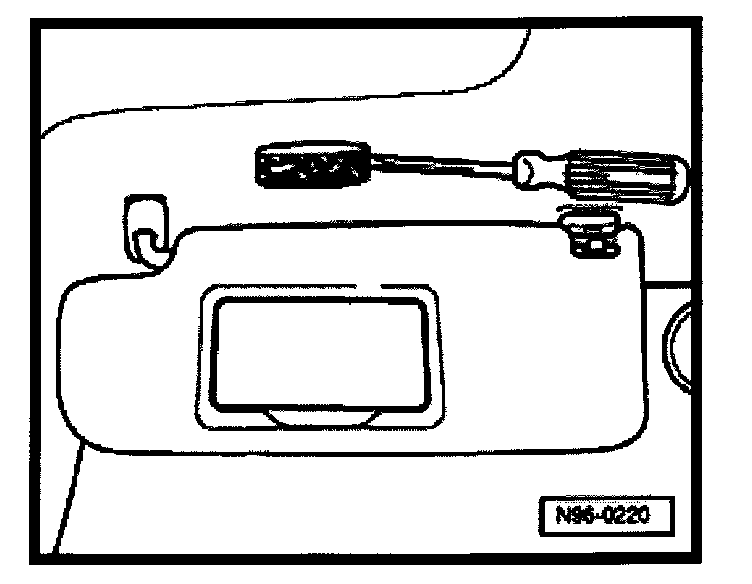

- Insert screwdriver behind lens and carefully pry lens out.
- Remove lens with bulb holder.
- Disconnect electrical connection.
- Replace 12V / 3W bulb.

Installing
- Connect electrical connection.
- Insert lens with bulb holder into headliner and engage properly.
