Front Turn Signal/Side Marker Lamp Bulb, Replacing

Front turn signal and side marker light bulb, replacing

Removing

- Remove turn signal lights and side marker lights.

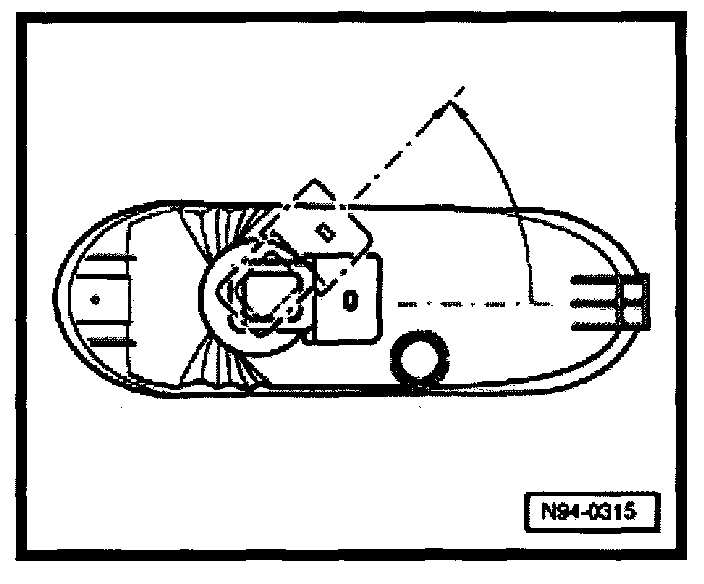

- Turn bulb holder in direction shown (arrow) and pull out from housing.
- Remove bulb from holder.

Installing


CAUTION!
Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation, can cause the glass to cloud over.


- Install in reverse order.
- When installing, make sure bulb holder engages in housing by turning in opposite direction to direction shown (arrow).
