Front Turn Signal Bulb, Turbo S, Replacing

Front turn signal bulb, replacing

Removing
- Remove front turn signal.

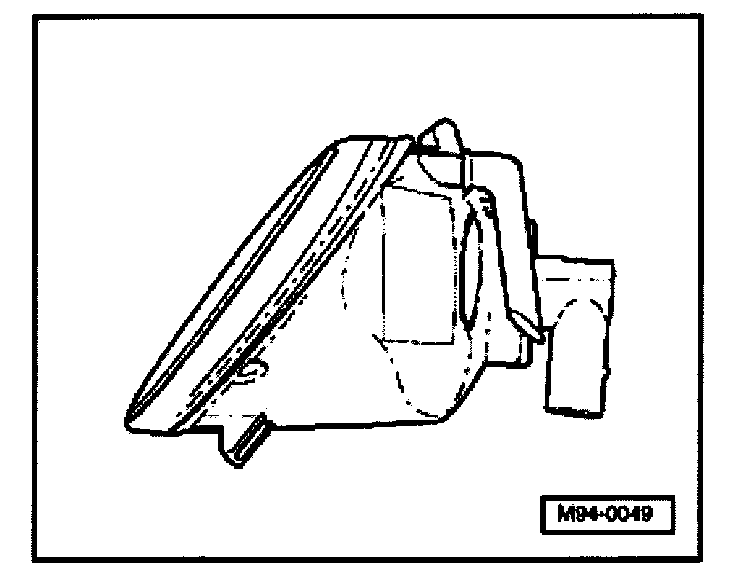

- Turn bulb holder and pull out from housing as follows:
Left light: turn bulb holder counterclockwise
Right light: turn bulb holder clockwise.
- Remove bulb from bulb holder.

Installing


CAUTION!
Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation, can cause the glass to cloud over.


- Install in reverse order.

NOTE: When installing, ensure bulb holder engages fully in housing, and turn in opposite direction of removal.
