Parking Light Bulb: Service and Repair

Parking light bulbs, replacing


CAUTION!
Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.


Removing
- Remove headlight housing.
- Remove sealing cap.

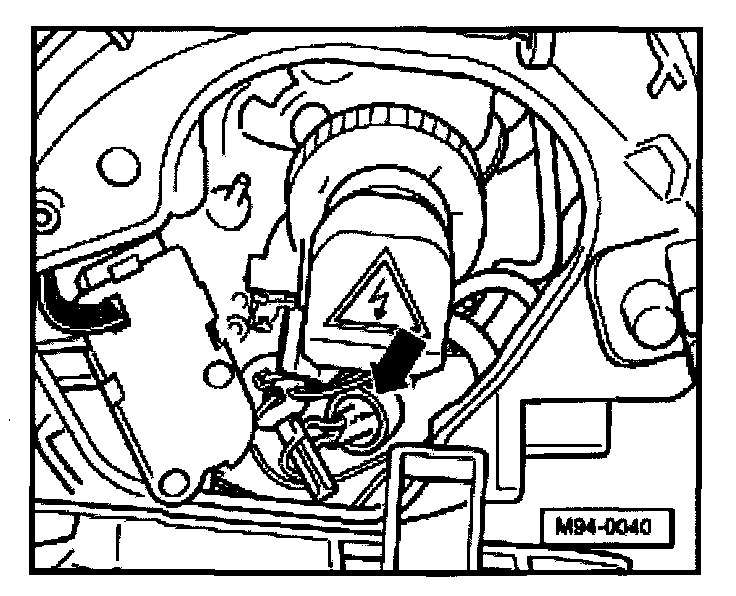

- Pull parking light bulb with mounting - arrow- out from reflector.

Installing
Installation in reverse order of removal.
- Check parking light (bulb) function.
- Check headlight aim
