Front Side Marker Lamps (Turbo S), Removing and Installing

Front Side Marker Lights (Turbo S models only), Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove front inner fender liner

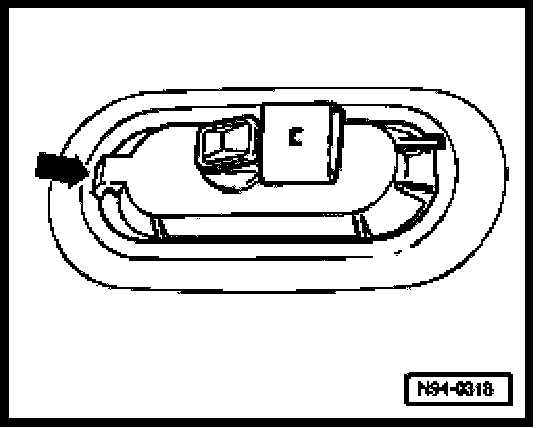

- Carefully press retainer clip in direction of -arrow-.
- Disconnect electrical connection.

Installing
- Reconnect electrical connection.

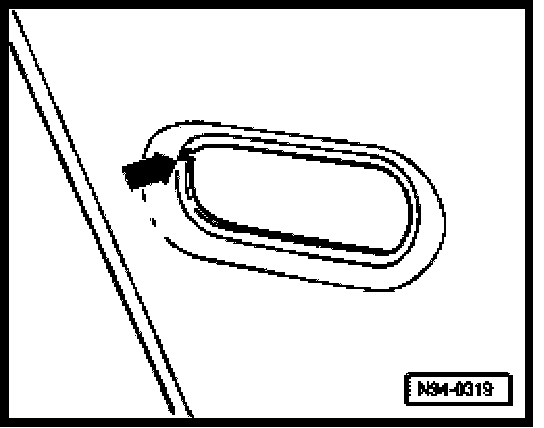

- Insert side marker light into bumper and click in place, make sure locating boss is seated correctly in cutout -arrow-
