License Plate Bulb: Service and Repair

License plate light bulb, replacing

Removing
- Remove license plate light.

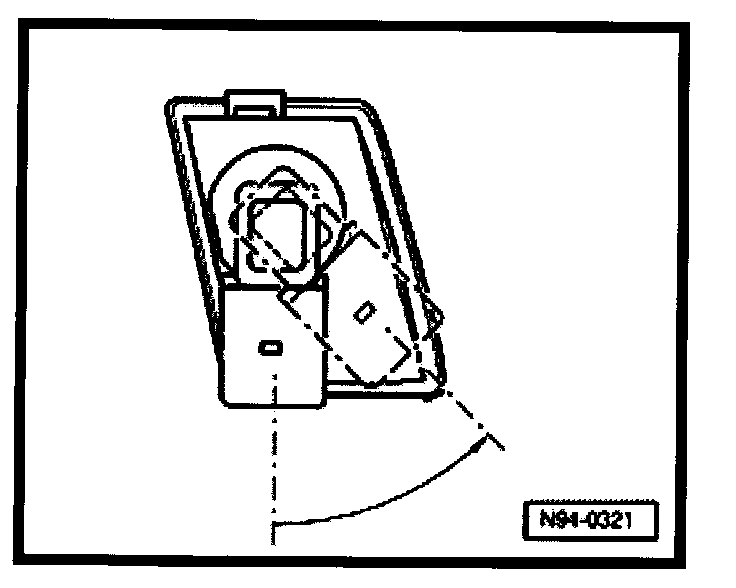

- Turn bulb holder in direction shown (arrow) and remove from housing.
- Pull out bulb (12V/5W), do not turn.

Installing


CAUTION!
Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation, can cause the glass to cloud over.


- Install in reverse order.
- When installing, make sure bulb holder engages in housing by turning in opposite direction shown (arrow).
