Left Headlight, HID (With Range Control) Control Module

Left High Intensity Gas- discharge Lamp (with range control) Control Module -J567-, removing and installing


WARNING!
- HIGH VOLTAGE!
- Always disconnect battery Ground (GND) strap prior to servicing any parts of the HID lamp system marked with the yellow "HIGH VOLTAGE!" symbol
- After disconnecting battery, briefly turn headlights on and off in order discharge any residual voltage.

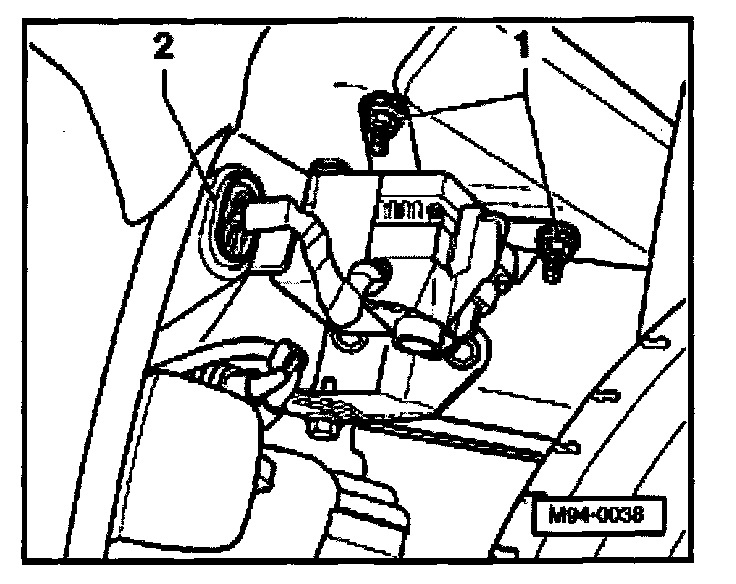

The (master) control module is located in the left front wheel housing.

Removing
- Remove left front wheel housing liner.







- Remove nuts/bolts -1- for control module.
- Disconnect electrical connection -2-.

Installing
Installation in reverse sequence of removal.
- Check headlight function.
- Code control module (function 07).
- Perform headlight basic setting.
