Headlamp Alignment Actuator: Service and Repair

Headlight Beam Adjusting Motor - V48- / -V49-, removing and installing

Removing
- Remove headlight housing.
- Remove sealing cap.

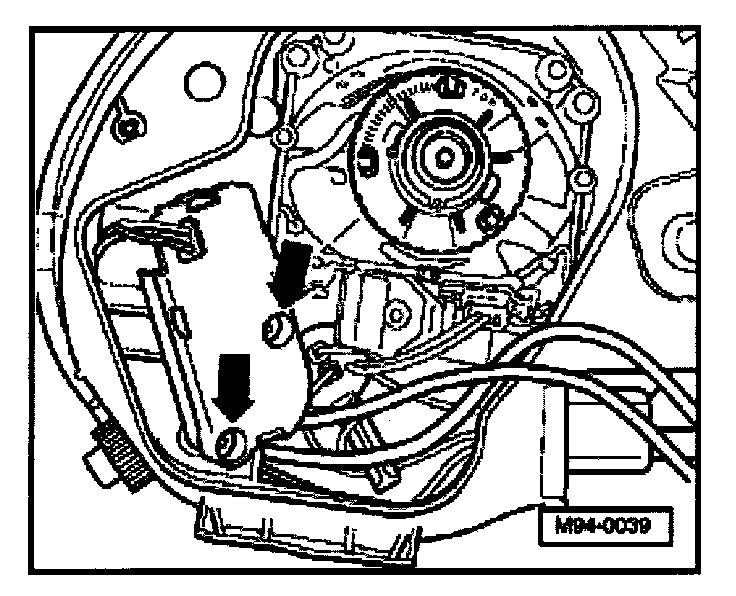

- Remove screws -arrows- on motor.
- Pull positioning rod ball head out from locking device on reflector.
- Disconnect electrical connection.

Installing
Installation in reverse sequence or removal.
- Check headlight function.
- Perform headlight basic setting.
