Center Mounted Brake Lamp: Service and Repair

High mount brake light, removing and installing
The additional brake light is installed in the rear trunk lid.

Removing
- Remove rear lid lower trim.

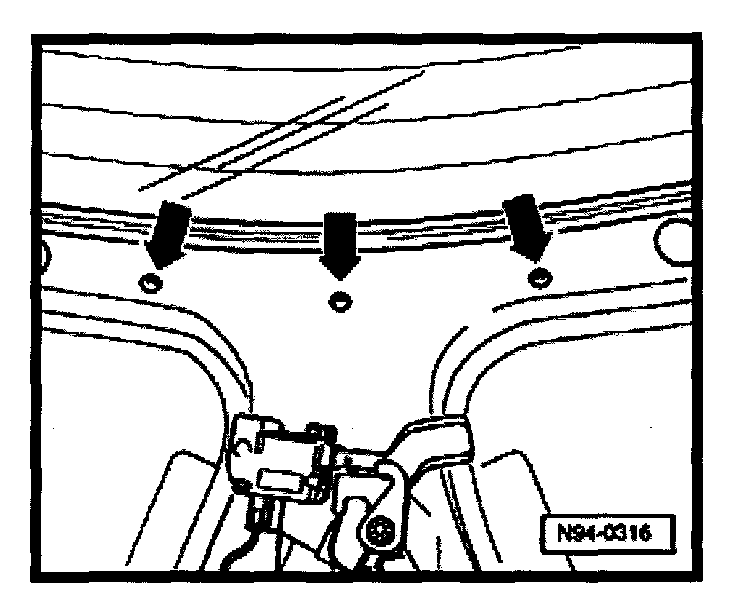

- Remove Phillips-head screws (arrows) for high mount brake light.
- Remove brake light upward and disconnect electrical connector.

Installing
- Connect electrical connector.
- Insert brake light in bumper.

To attach screws:
- Reach behind panel and position high mount brake light correctly.
- Tighten screws.
