Backup Light Bulb: Service and Repair

Back-up light bulb, replacing

Removing
- Remove back-up light.

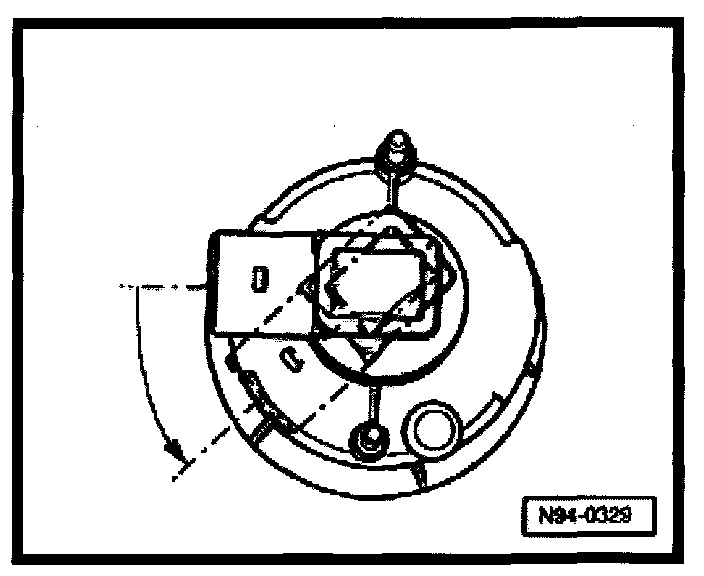

- Turn bulb holder in direction shown (arrow) and pull out from housing.
- Remove bulb from holder.

Installing


CAUTION!
Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation can cause the glass to cloud over.


Install in reverse order.


NOTE: When installing, make sure bulb holder engages in housing by turning in opposite direction shown (arrow).
