Instruments - Cluster Replacement Requirements
90 10 04March 31, 2010
2022789

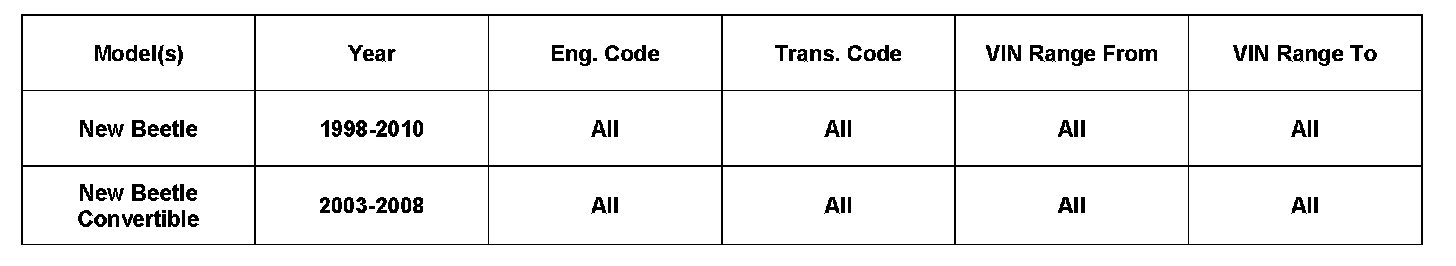

Vehicle Information
Condition
Instrument Cluster Replacement Requirements for Factory Status Clusters (U.S. Only)
Under certain circumstances a factory status replacement instrument cluster may be required.
Technical Background
New Beetle may require a factory status instrument cluster when the vehicle receives a new identity, or more than one immobilizer component is replaced.
Production Solution
No Production Change required.
Service
If a factory status replacement instrument cluster is required, certain criteria and special requirements must be followed before ordering. Any technician requesting a factory status instrument cluster MUST have a VTA case opened on the vehicle. Attached to the VTA must be a copy of the owner's driver's license, and a copy of the vehicle registration, or title, if vehicle registration is unavailable.
This mandatory information is required to process the instrument cluster request by the factory. Without the proper required information an instrument cluster cannot be ordered due to security risks.
Warranty
Information Only.
Required Parts and Tools
No Special Parts required.
No Special Tools required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
