Instrument Panel Crossmember

Instrument Panel Crossmember

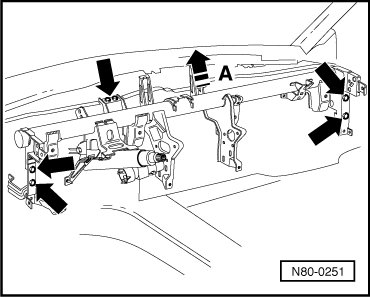

- Remove bolts - arrows -.

• Tightening torque 25 Nm.

To access or remove heating and ventilation unit, lift cross member in direction of - arrow A - and support.

• To prevent damage to the steering column, work should be done with aid of another technician.

• If removed component(s) are not to be reinstalled immediately, secure the cross member to the bulkhead.

• Any wiring harnesses released from their retainers must be secured again at the same point, using the same method of securing.
