Evaporator Core: Description and Operation

A/C Refrigerant System Component Description

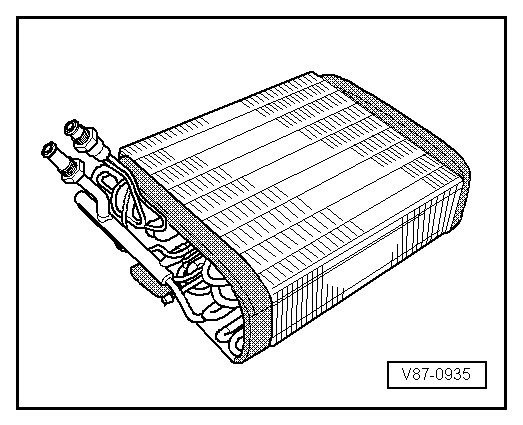

Evaporator





Liquid refrigerant entering the evaporator absorbs heat from air passing through the evaporator fins and cools the air. As the refrigerant absorbs heat it turns to vapor and then is suctioned by the compressor.
