Air Outlets, Removing

Side window air outlets, removing


NOTE: To prevent damage to air outlets, use needle nose pliers with suitable plastic or rubber protection on jaws.

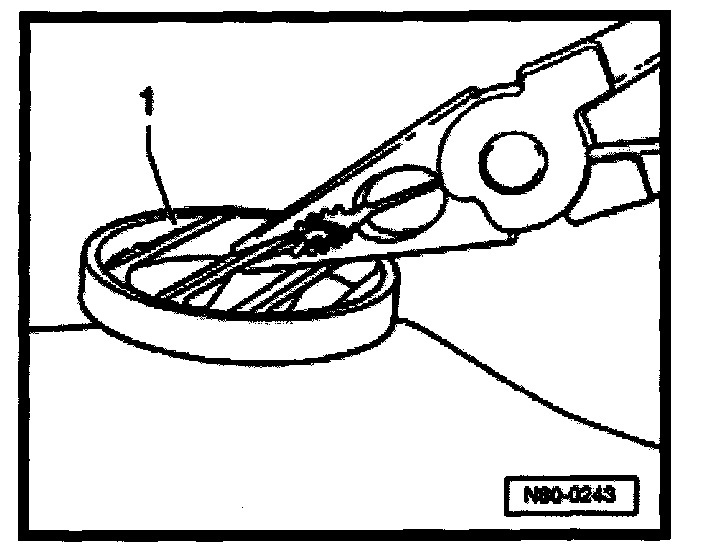

- Carefully remove air outlet -1- with needle nose pliers.

Side air outlets, removing

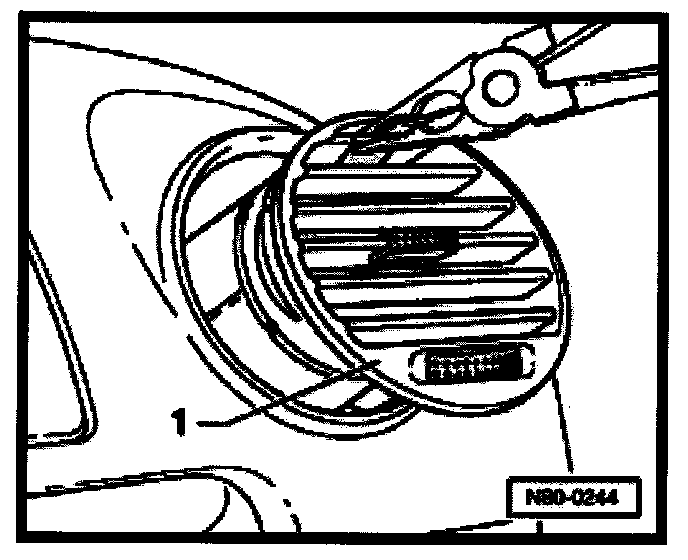

- Carefully remove air outlet -1- with needle nose pliers as indicated.

Center air outlet console, removing

First do the following:
- Remove radio.

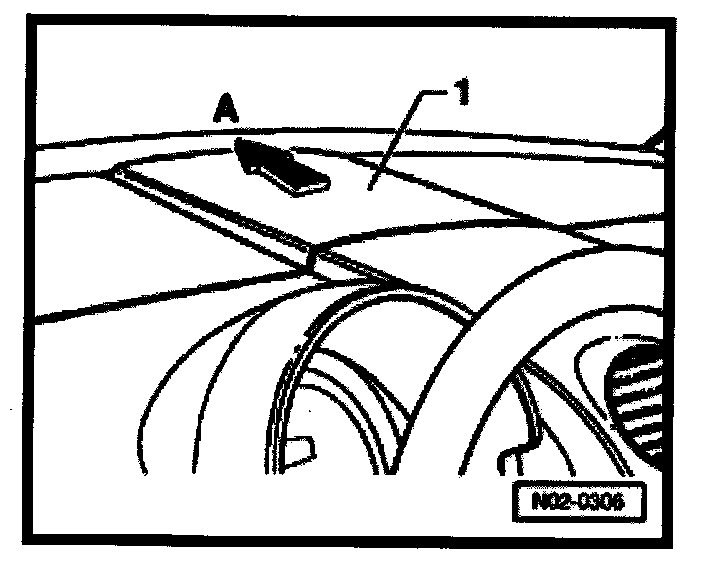

- Push center cover -1- forward -arrow A- and lift up to remove.

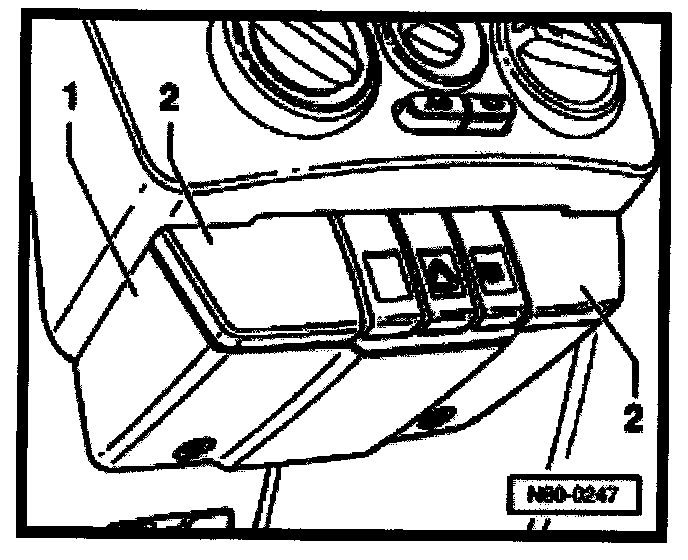

- Unclip covers -2-.
- Remove lower switch console cover -1- (remove screws).

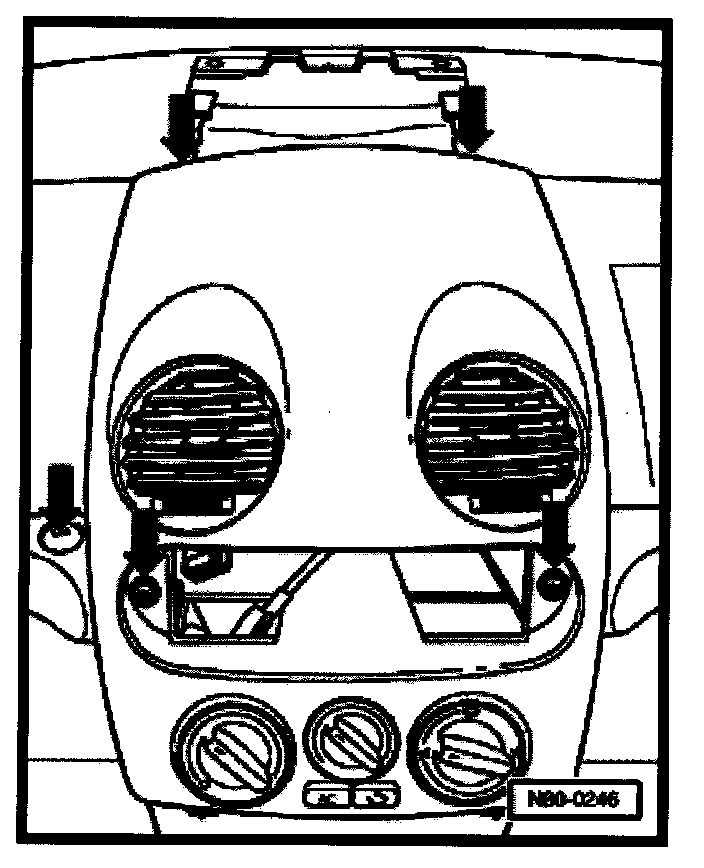

- Remove screws -arrows-.
- Remove center air outlet console.
