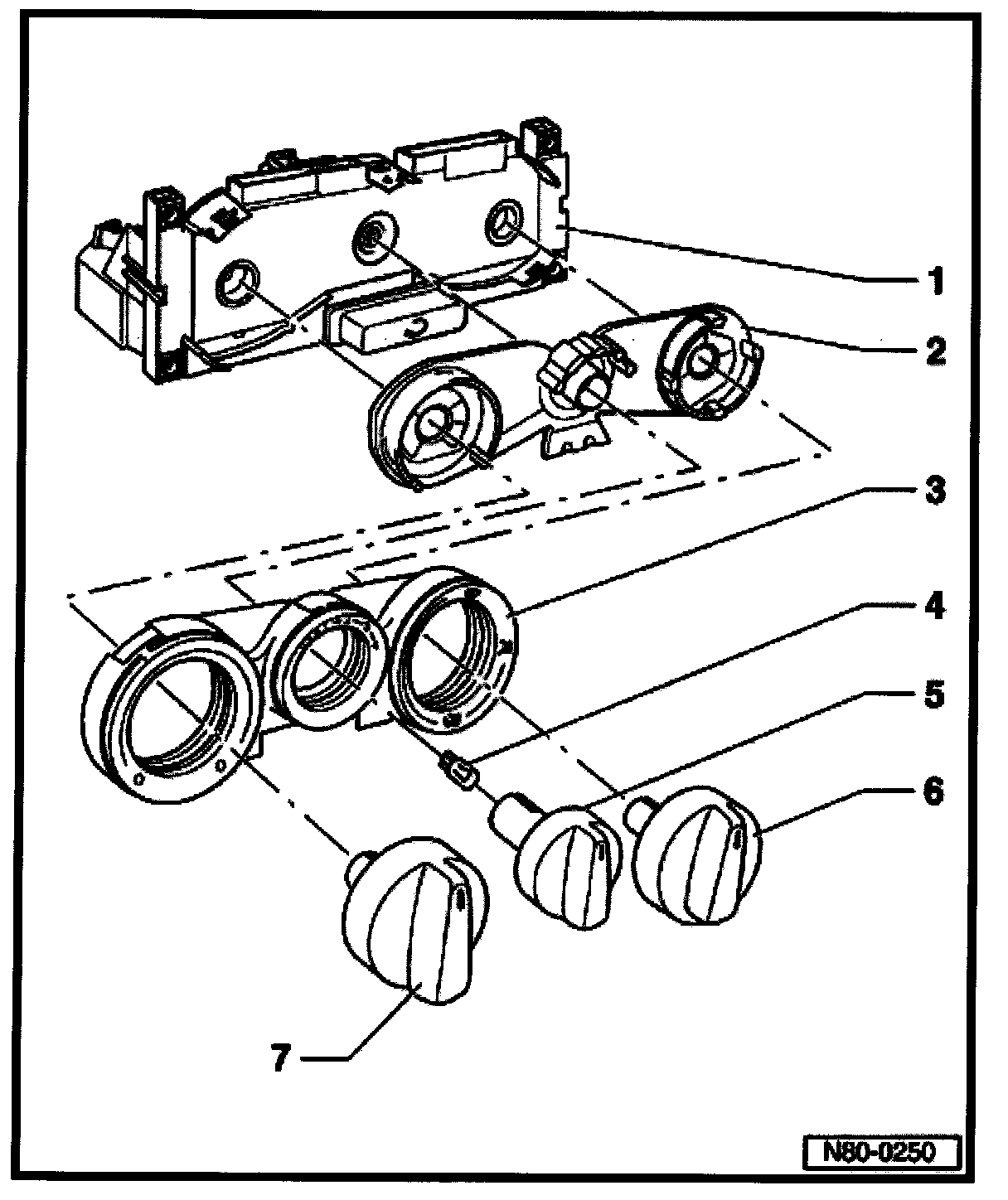

Heating and Ventilation Controls, Assembly

1 - Heating and ventilation controls
- With fresh air blower switch -E9-
- With switch for fresh air blower and recirculated air -E184-
- Removing and installing
2 - Illumination filter
3 - Trim panel
4 - Fresh air control lever light -L16-
- 12V, 1.2W
5 - Rotary control
- For blower speed
- To remove: Use pliers with suitable plastic or rubber protection on jaws
6 - Rotary control
- For air distribution
- To remove: Use pliers with suitable plastic or rubber protection on jaws
7 - Rotary control
- For interior temperature
- To remove: Use pliers with suitable plastic or rubber protection on jaws
