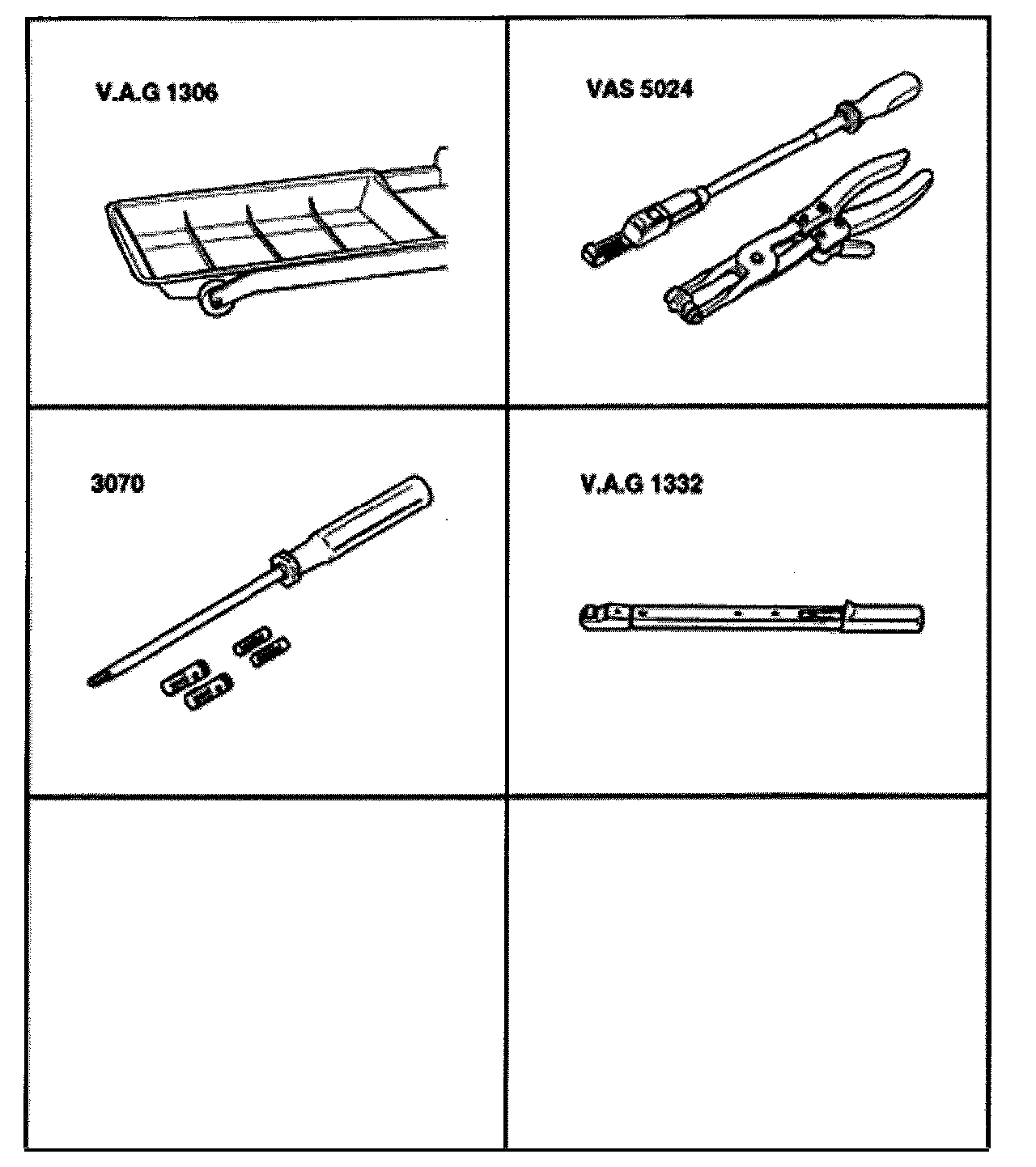

Cylinder Head Assembly: Tools and Equipment

VAG1306 Drip tray
VAG1921 Spring clip pliers
3070 Guide pin
VAG1332 Torque wrench 40 to 200 Nm (30 to 148 ft lb)
