Ribbed Belt Tensioner, Removing and Installing

Ribbed belt tensioner, removing and installing
Special tools and equipment

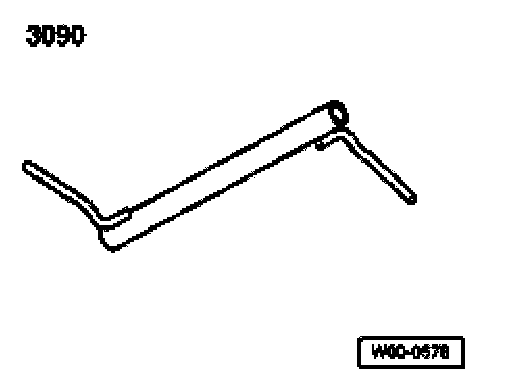

^ 3090 Connecting rod support

Removing ribbed belt
- Mark direction of rotation of ribbed belt.

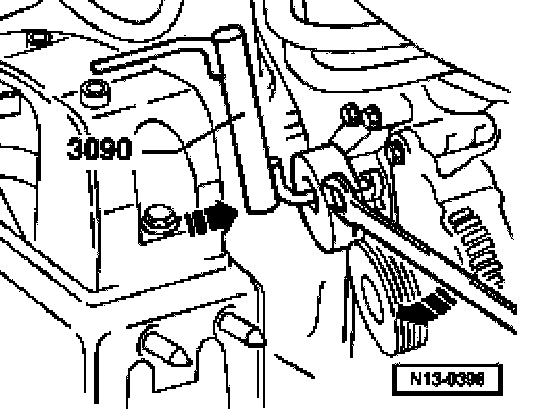

- To loosen ribbed belt turn tensioning element in direction of arrow.





- Lock tensioning device with 3090 Connecting rod support.
- Remove or install ribbed belt.

Note: When installing ribbed belts ensure the belt seats correctly in the belt pulley.

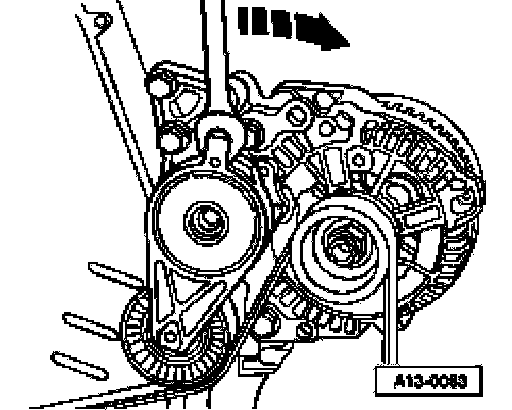

- Remove insulation tray.
Remove or install ribbed belt.
- Start engine and check belt running.

Ribbed belt routing

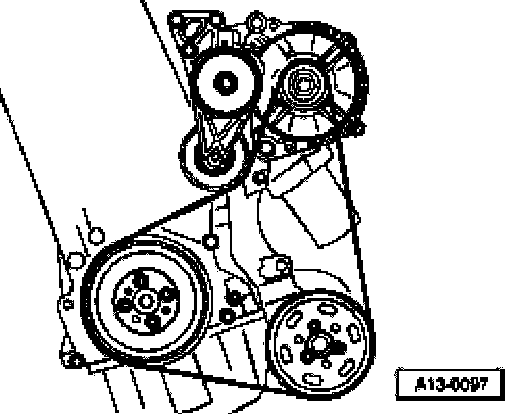

Belt drive without air conditioning compressor

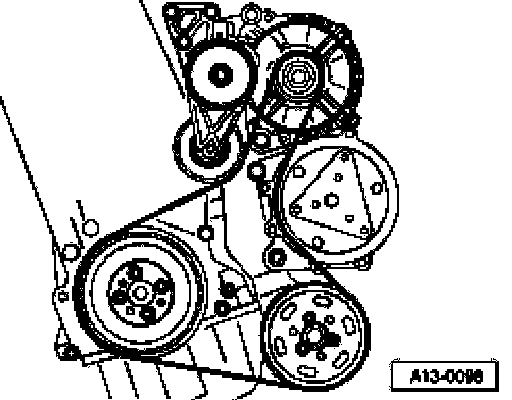

Belt drive with air conditioning compressor

Note: Engines with an air conditioning compressor are equipped with a double ribbed belt.
