Vacuum Pump: Service and Repair

Brake system vacuum pump -V192-, removing and installing
There are no provisions for servicing the brake system vacuum pump -V192-. If a malfunction is detected the brake system vacuum pump -V192 must be replaced.
The brake system vacuum pump -V192- is located lower left on the subframe.

Removing

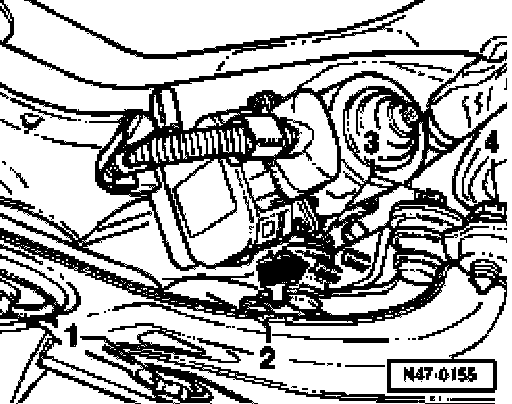

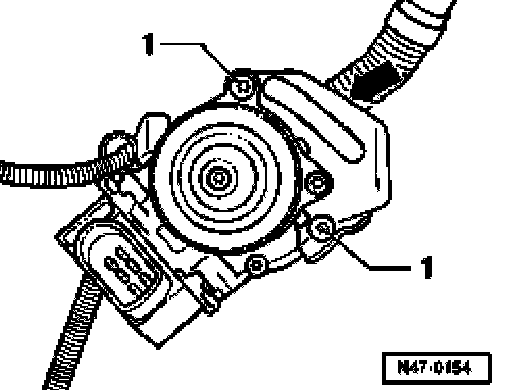

- Remove bolt -1- on bracket for brake system vacuum pump -V192-. - Pull hose -arrow- off brake system vacuum pump 192-. - Take out brake system vacuum pump -V192-.

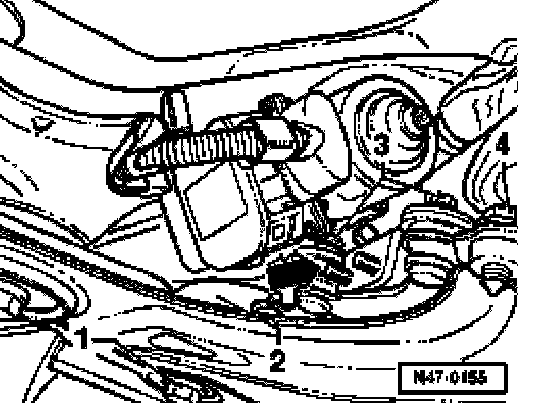

Bracket -arrow- for brake system vacuum pump -V192-.
- Remove lock nut -2- from bolt -1-.
- Remove bolt -4- and take bracket out.
- Remove bolts -3- to disassemble the bracket -arrow- further.

Installing
Install in reverse order.





Tightening torques
Nut -2- to bracket 20 Nm (15 ft. lbs.)
Bolts -3-to bracket 8 Nm (71 inch lbs.)
Bolt -4- to bracket 20 Nm (15 ft. lbs.)
Torx socket head bolt for brake system vacuum pump - V192- to bracket 8 Nm (71 inch lbs.)
