Brake Booster Vacuum Sensor: Service and Repair

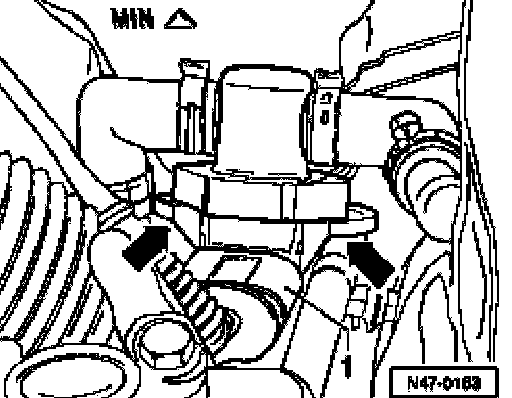

Brake booster pressure sensor -G294-, removing and installing
Removing
- Remove plenum chamber cover.





- Disconnect connector -1-.
- Remove bolts -arrows-.
- Remove brake booster pressure sensor -G294-.

Installing
Install in reverse order.
