Parking Brake Lever: Service and Repair

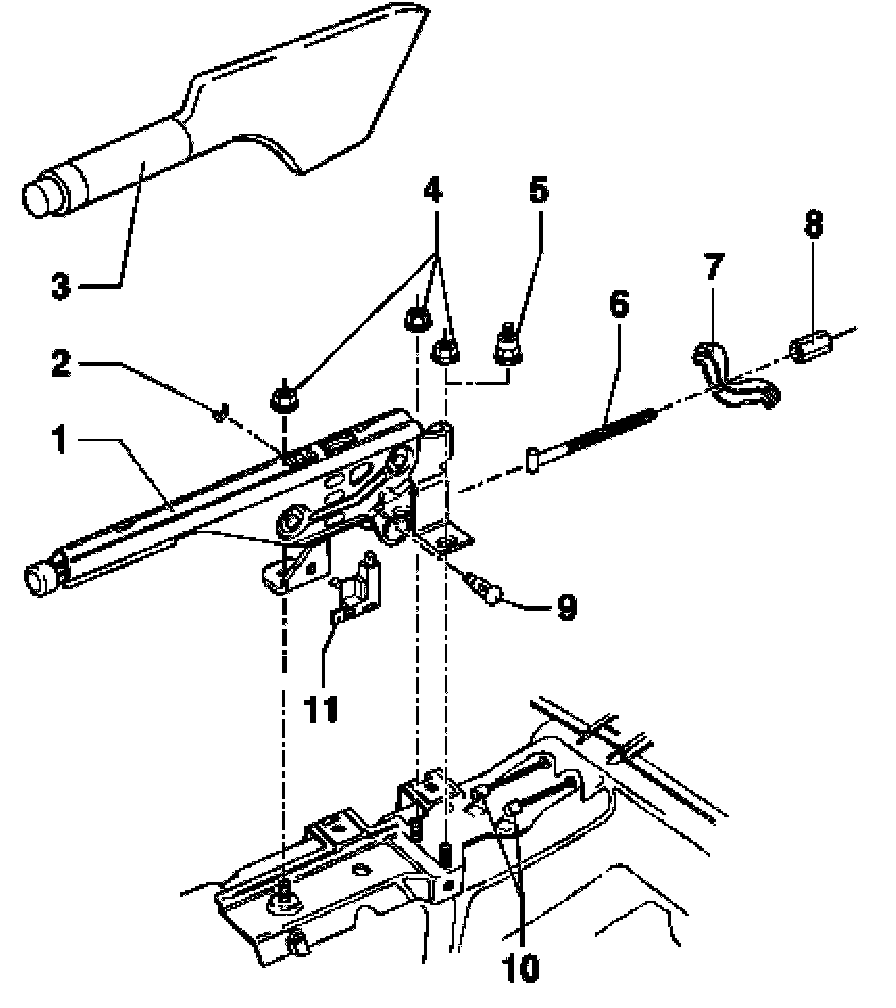

Parking brake lever - assembly overview
1. Parking brake lever
^ Before removing take out center console
2. Circlip
3. Parking brake lever trim
^ Pull off toward front
4. Hex nut, 25 Nm (18 inch lbs.)
5. Adapter
^ For vehicles with center armrest
6. Pull rod
7. Compensator
8. Adjusting nut
9. Fulcrum pin
^ Mounts pull rod -item 6 - in Parking brake
10. Parking brake cables
