Brake Pedal, Removing and Installing

Brake pedal, removing and installing
Removing
- Remove trim below instrument panel.

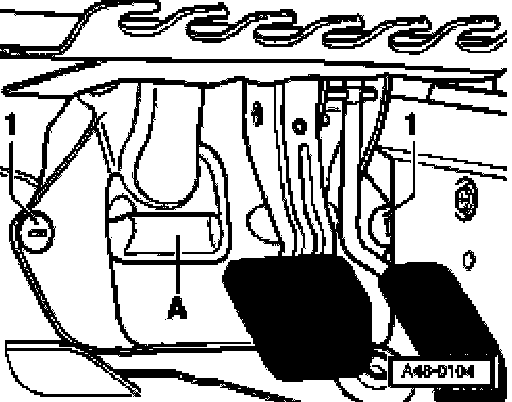

- Remove screws -1-.
- Remove cover -A-.





- Remove connecting plate between clutch and brake pedals on vehicles with a manual transmission.

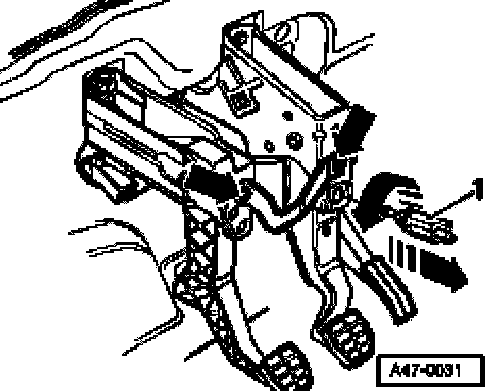

- Remove brake light switch -1-.
- Unhook throttle cable.
- Vehicles with accelerator pedal position sensor, release connector below instrument panel.
- Separate brake pedal from brake booster.
- Remove hex nuts.
- Take out pedal cluster.
- Remove brake pedal.

Installing
Install in reverse order.
- Then adjust brake light switch.
- Brake light switch: adjusting, Refer to Lighting and Horns, Brake Light Switch, Adjustments
