With Manufacturer's Scan Tool

Diagnostic Trouble Code (DTC) erasing memory, ending output

Note: All functions that have so far been carried out with V.A.G 1551 can now also be carried out with the tester VAS 5051.

Requirements:
^ DTC memory checked, Refer to Displaying and Reading Trouble Codes,With VAG1551 Scan Tool, Diagnostic Trouble Code (DTC) Memory, Checking.

1. Erasing DTC memory
- Press (arrow) key.

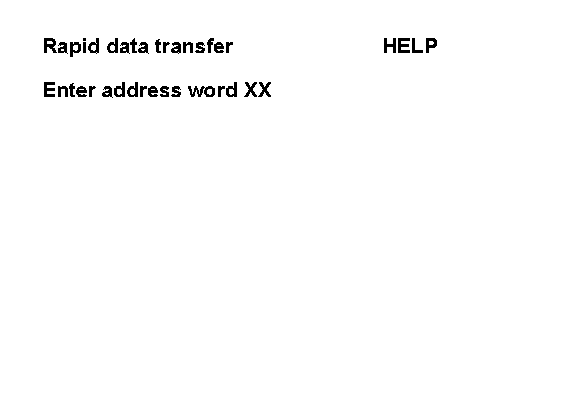

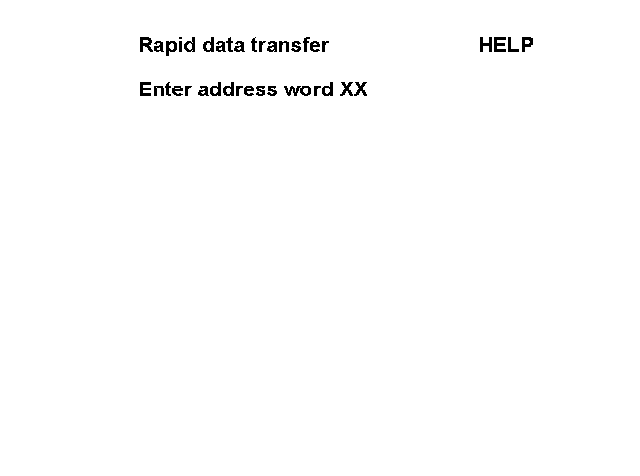

Indicated on display:
- Press keys -0- and -5-; 05 enters the "Erase DTC memory" function.

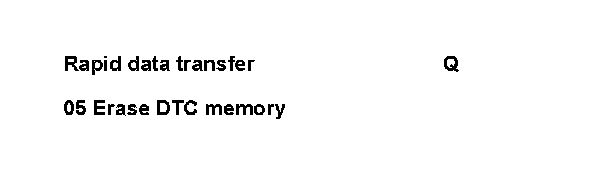

Indicated on display:
- Confirm entry with Q key





Indicated on display:
- Press (arrow) key.

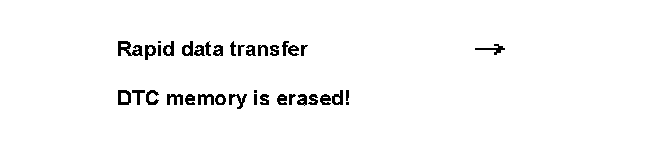

Indicated on display:

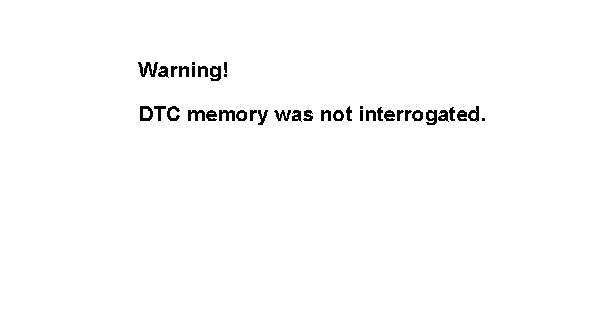

Indicated on display:

Note: Adhere exactly to test sequence: First check DTC memory, then erase

2. Ending output
- Press keys -O- and -6-, this ends the output.

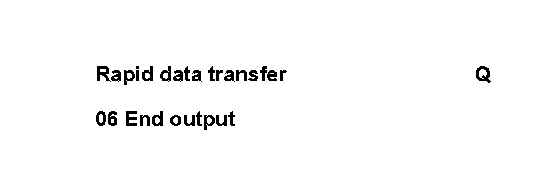

Indicated on display:
- Confirm input with Q key.

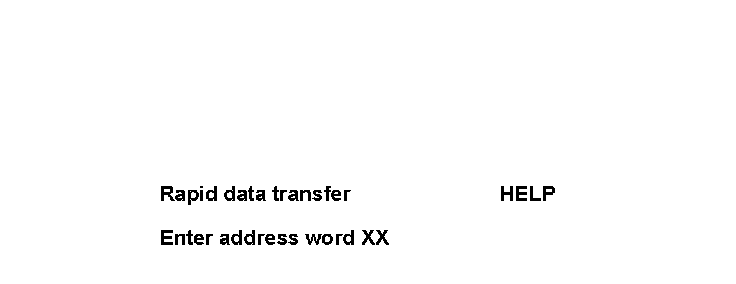

Indicated on display:
- Switch off ignition.
- Disconnect connection to V.A.G 1551 scan tool.
- Switch on ignition.

ABS warning light -K47- must go out after approximately 2 seconds.
