Test Steps Overview & Multi-Pin Connector Assignments

Multi-pin connector with contact assignments

Note: All contacts not listed are currently not assigned and must never be connected to other components!

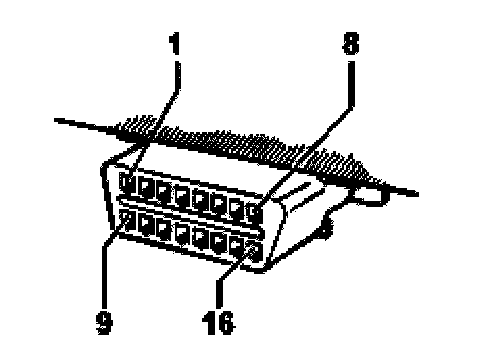

Contact assignment of connectors for voltage supply and self diagnosis with the V.A.G 1551 scan tool
Contact 4 = Ground (terminal 31)
Contact 16 = Positive (terminal 30)
Contact 7 = K-wire to contact 2 of ABS Control Module (w/EDL) - J104- multi-pin connector T47

Part 1 Of 5:

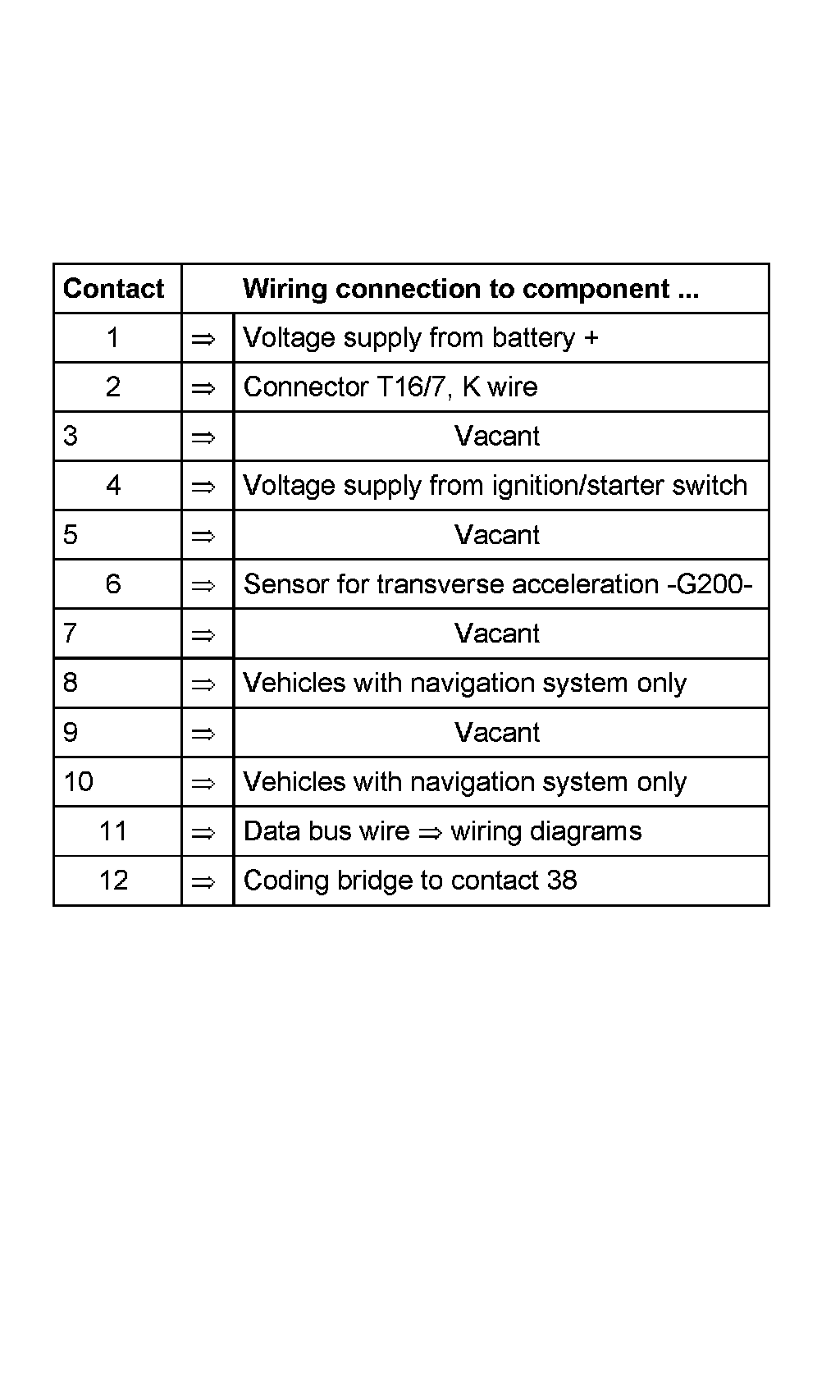

Part 2 Of 5:

Part 3 Of 5:

Part 4 Of 5:

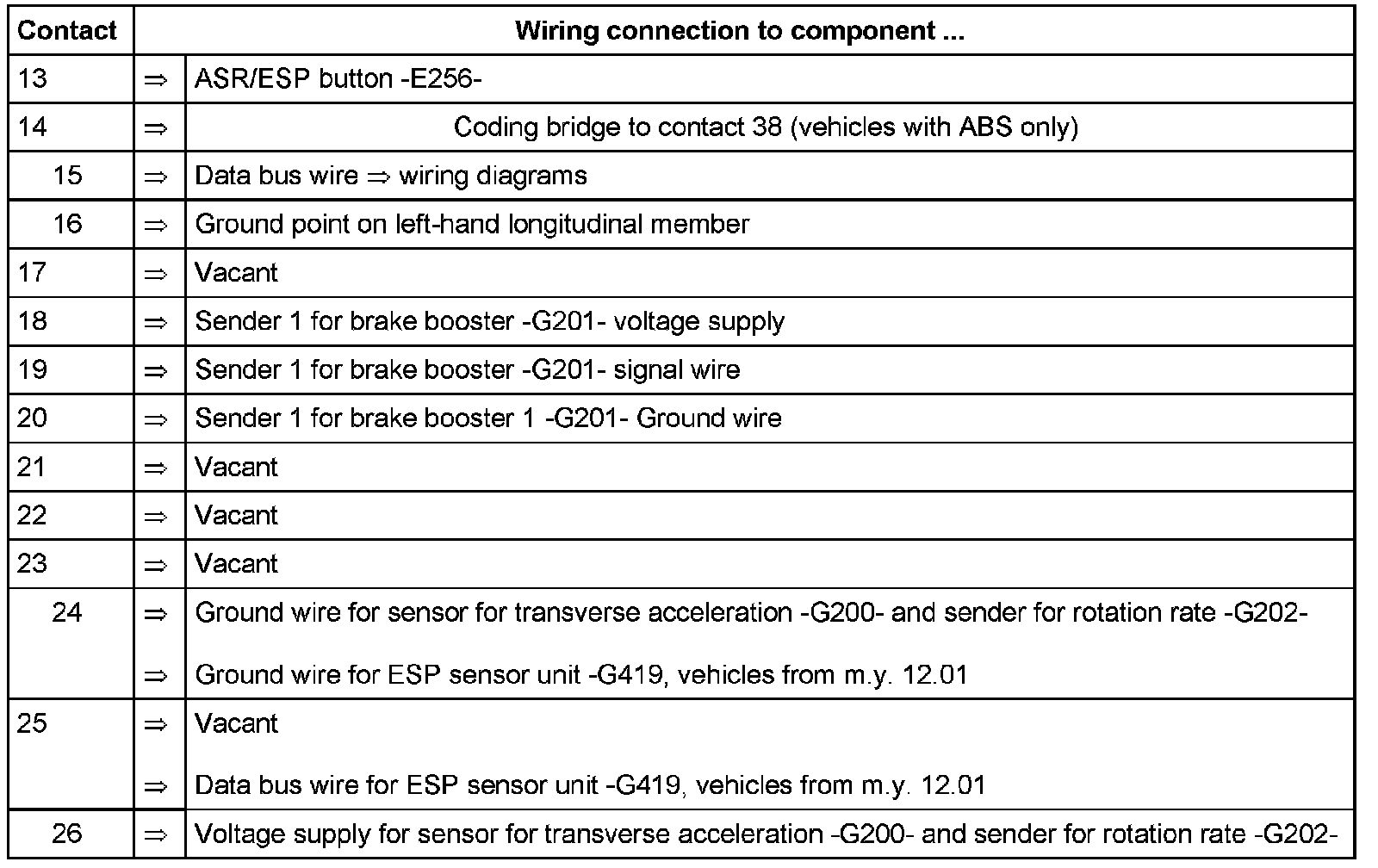

Part 5 Of 5:

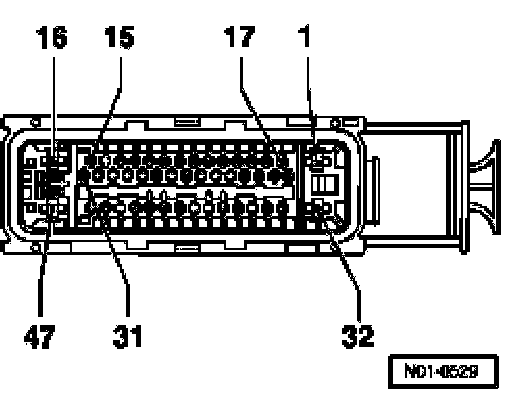

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104-.

Part 1 Of 2:

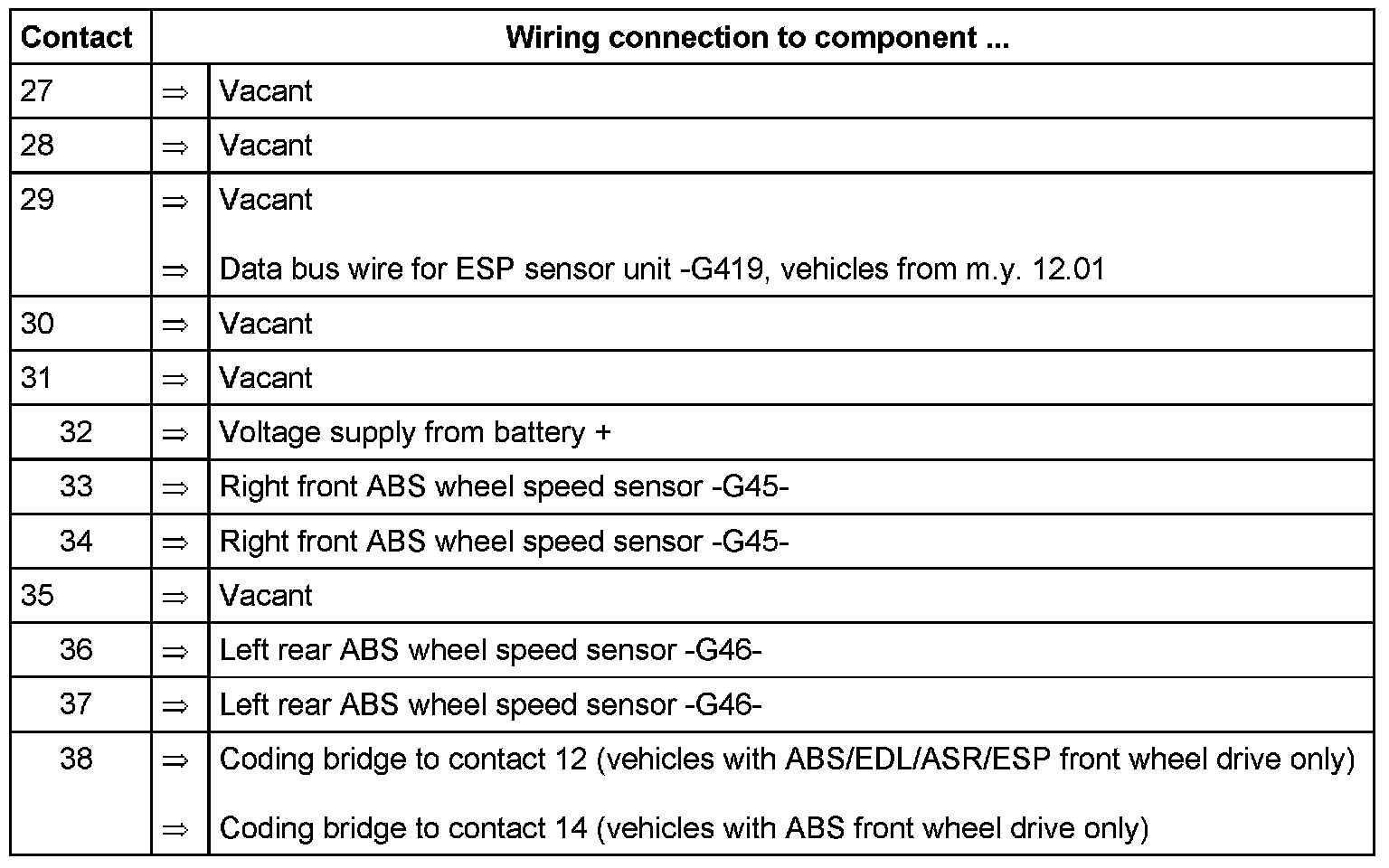

Part 2 Of 2:

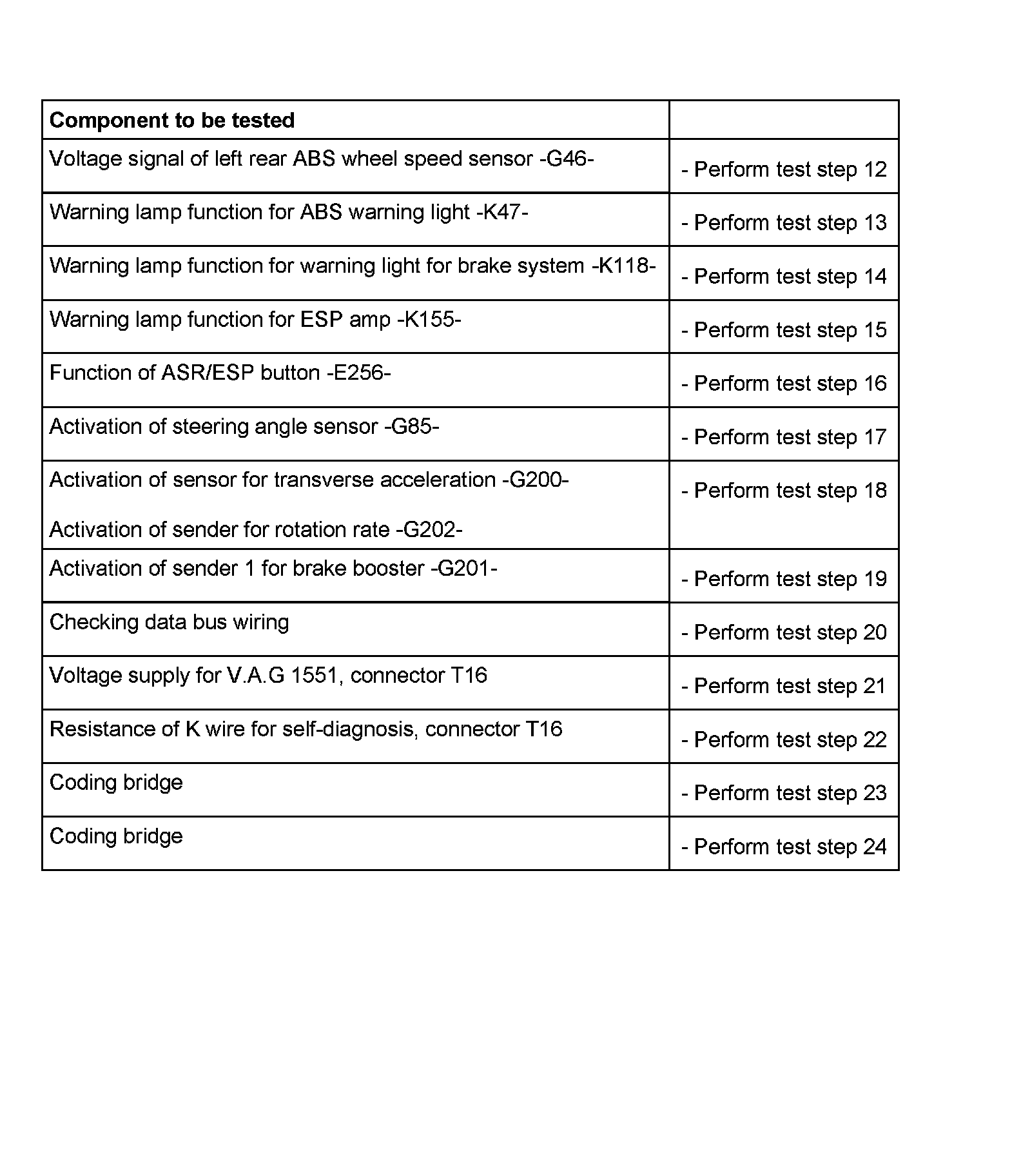

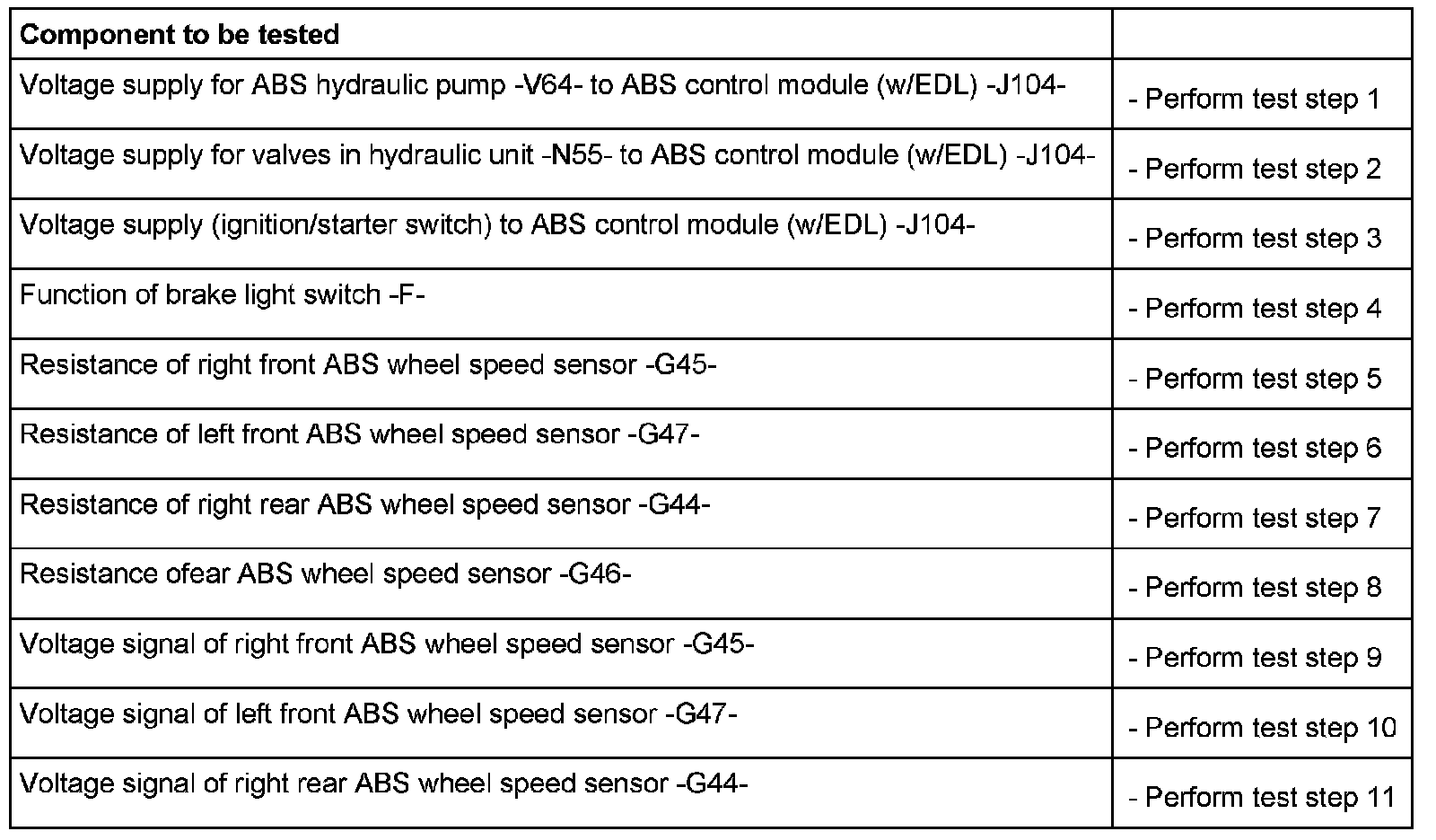

Test step overview
