Sedan

50 74 55 00 Front Wheel House, Replacing

Includes: Long Member, Upper Wheel House, Fender, Intermediate Piece, And Spacer

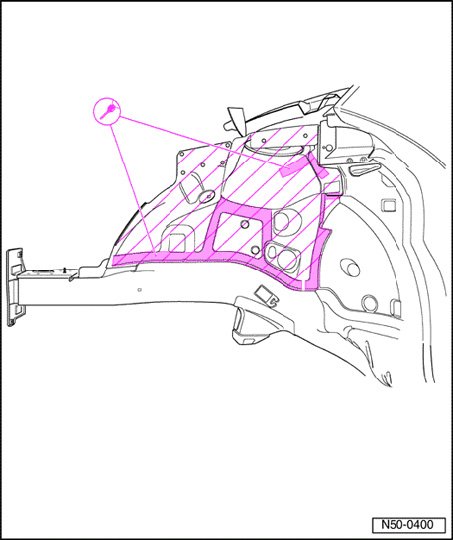

Cutting Location
- Separate original joint.
- Remove excess material

Replacement Part
- Front wheel house

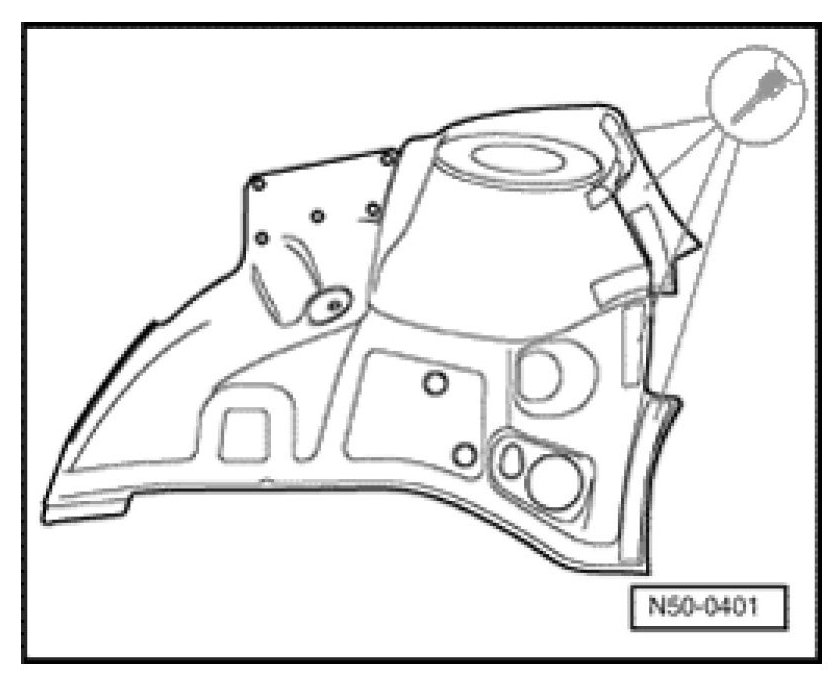

Preparing New Part







- Drill 7 mm dia. (0.275 in.) holes for SG plug weld seam.

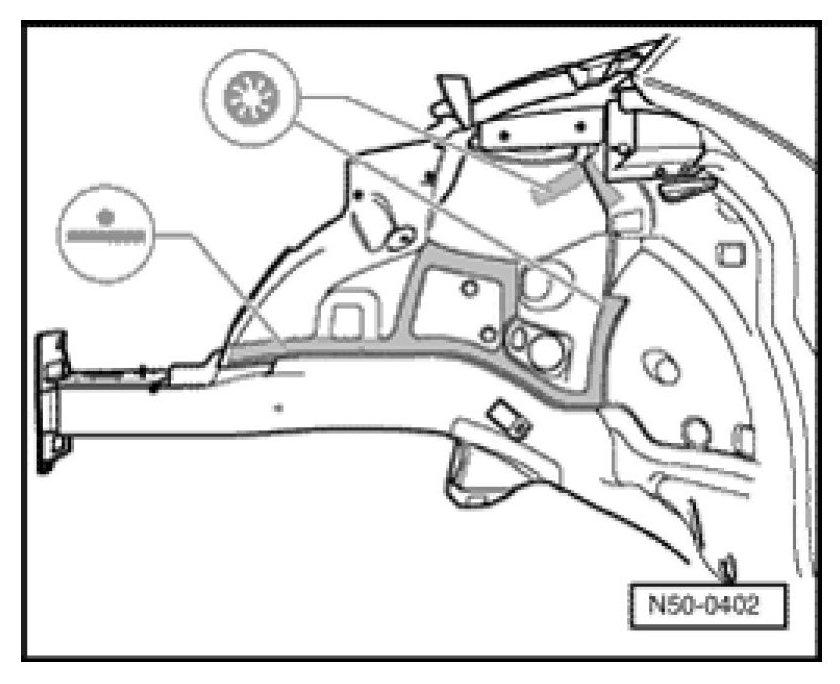

Welding In
- Place wheel house on alignment fixture.







- Spot weld wheel house to lower long member, RP spot weld.
