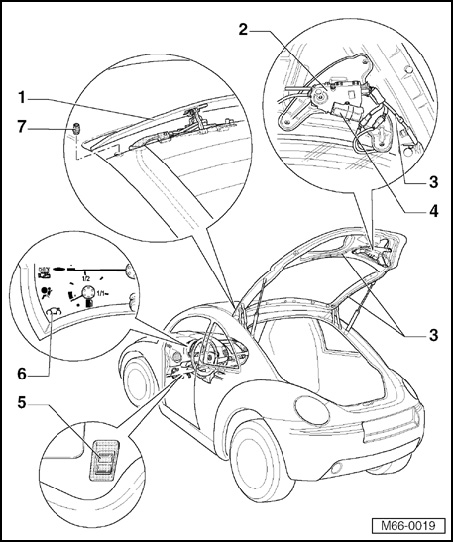

Rear Spoiler Assembly Overview

Assembly Overview







1 - Rear spoiler - installation unit
- With links, guide tubes and cables
- Grease link guides using G 000 450 02
- Parallel movement, checking and adjusting

2 - Rear Spoiler Control Module J223
- Self-diagnosis
- Removing and installing, rear spoiler drive, removing and installing

3 - Lower guide tubes
4 - Rear Spoiler Motor V52
- Removing and installing, rear spoiler drive, removing and installing

5 - Rear Spoiler Switch E127
- Below instrument panel near steering column
- For raising and lowering rear spoiler "manually"

6 - Rear spoiler adjustment warning lamp
7 - Rubber buffer
