Rear Spoiler - Installation Unit, Removing and Installing

Rear Spoiler- Installation Unit, Removing And Installing

Removing
- Raise rear spoiler "manually".
- Remove rear lid trim
- Remove rear spoiler drive.







- Remove six bolts - 1 - on left and right at upper edge of rear lid - 2 -.







- Disengage sealing grommets - 1 - on left and right of lid - arrow -.







- Open clips - 1 - at left and right.

NOTE: Replace damaged clips - 1 - when installing.

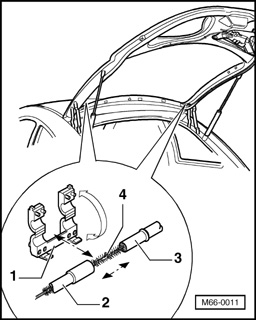

- Remove rear spoiler installation unit from vehicle. To do so, disengage from clip - 1 - and pull apart lower guide tube - 2 - and upper guide tube - 3 - when removing rear spoiler installation unit.
- When removing rear spoiler installation unit, pull cables - 4 - on left and right out of lower guide tube - 2 -.

Installing
- Installation is performed in the reverse order of removal.

Additionally, the following work steps must be carried out:







- Before installing rear spoiler installation unit at rear lid, check condition of sealing grommets - 1 -. Sealing grommets must seal rear lid reliably. Replace hardened, porous or cracked sealing grommets.
- If necessary, grease link guides using special grease G 000 450 02 only.
- After installing rear spoiler installation unit to rear lid, check or reinstate parallel movement.







- Before installing rear lid trim, check alignment of rear spoiler - 1 - at lid and correct if necessary.
- Rear spoiler must be seated centrally (left/right) at lid.
- Dimension - a - = 6 mm
- Dimension - b - = 5 mm







- To align rear spoiler, loosen bolts - 1 - on left and right on upper edge of rear lid - 2 - and then move rear spoiler installation unit within oversized holes. Tightening torque: Bolts - 1 - = 6 Nm
